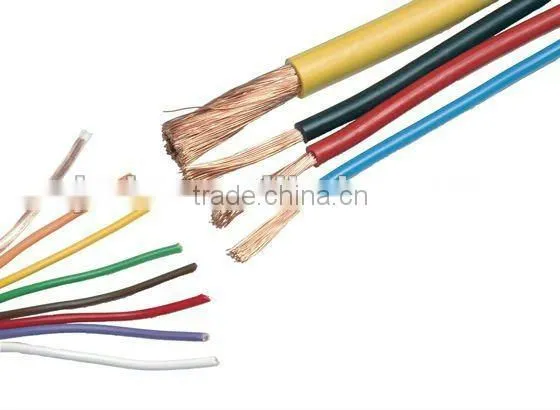

Cable Copper Wire 2.5mm Copper Electronic Wire Indoor Using

FOB Price

US$ 0.1 - 0.3 / Meter

100 Meters(Min. Order)

Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	YONGKUNTAI
Model Number	BV/BVR/RV/BVV	Type	Insulated
Application	Heating	Conductor Material	Copper
Conductor Type	Solid	Insulation Material	PVC

Product Description

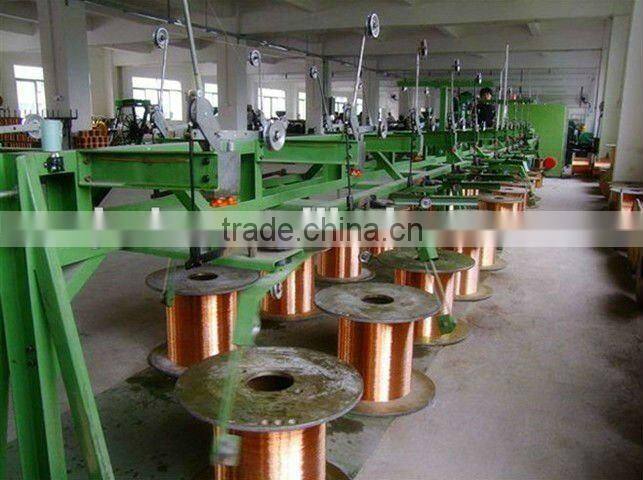

Our factory

H05V-K H07V-K PVC flex.cable for internal wiring

Conductor type	Code	Nominal voltage U₀/U	No. of cores	Range of cross section mm²	Temperature range at
Conductor type	Code	Nominal voltage U₀/U	No. of cores	Range of cross section mm²	Cont. load max.	Installation/ Handling
PVC flex. cable for internal wiring	H05V-K	300/500V	1	0.5-1	+70°C	+5°C
PVC flex. cable for internal wiring	H07V-K	450/750V	1	1.5-120	+70°C	+5°C

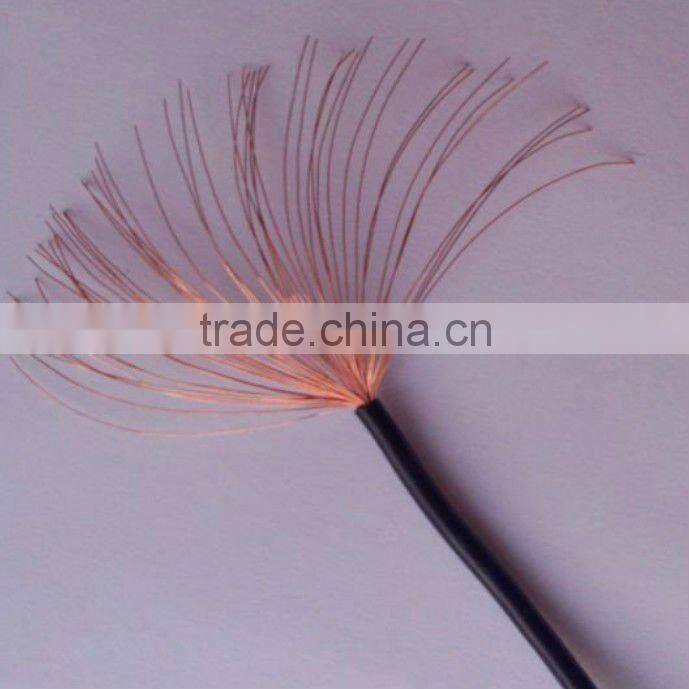

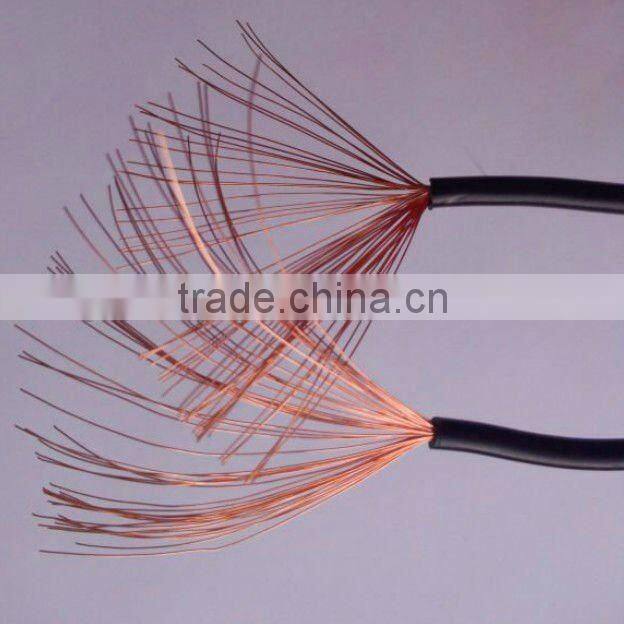

H05V-K H07V-K

Conductor

Finely stranded Copper conductor, bare, conductor category 5

Insulation

PVC

Recommended application

For internal wiring of appliances as well as installation in an electrical conduit pipe either on or underneath plaster

Nominal cross section	Conductor core	Insulation thickness	Average outer diameter		Conductor resistance at 20°C max.	Insulation resistance at 70°C max.
Nominal cross section	No. of individual wires/diameter	Insulation thickness	Min.	Max.	Cu	Insulation resistance at 70°C max.
mm²	mm	mm	mm	mm	Ω/km	≤MΩ•km
H05V-K
0.5	16/0.20	0.6	2.1	2.5	39.0	0.013
0.75	24/0.20	0.6	2.2	2.7	26.0	0.011
1	32/0.20	0.6	2.4	2.8	19.5	0.010
H07V-K
1.5	30/0.25	0.7	2.8	3.4	13.3	0.010
2.5	49/0.25	0.8	3.4	4.1	7.98	0.009
4	56/0.30	0.8	3.9	4.8	4.95	0.007
6	84/0.30	0.8	4.4	5.3	3.30	0.006
10	84/0.40	1.0	5.7	6.8	1.91	0.0056
16	126/0.40	1.0	6.7	8.1	1.21	0.0046
25	196/0.40	1.2	8.4	10.2	0.780	0.0044
35	276/0.40	1.2	9.7	11.7	0.554	0.0038
50	396/0.40	1.4	11.5	13.9	0.386	0.0037
70	360/0.50	1.4	13.2	16.0	0.272	0.0032
95	475/0.50	1.6	15.1	18.2	0.206	0.0032
120	612/0.50	1.6	16.7	20.2	0.161	0.0029

Packing--(size from 0.5mm² to 16mm² )

1-pap er reel

2-plastic reel

3-metal reel

4-plastic film (free)

5-plastic bag+belt

Packing--(size above 25mm² )

Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag

Option3-plywood reel

Testing

CE,RoHS,CCC certificate

Our stock house

*Kindly note that also we can make cables according to your requirements.

Your inquiry will be replied within 24 hours !
