Product Details
| Place of Origin | Guangdong, China | Brand Name | Yongkuntai | |
| Model Number | RVV(H07VV-K) | Type | Insulated | |
| Application | Heating | Conductor Material | Copper | |
| Conductor Type | Stranded | Insulation Material | PVC |
Product Description

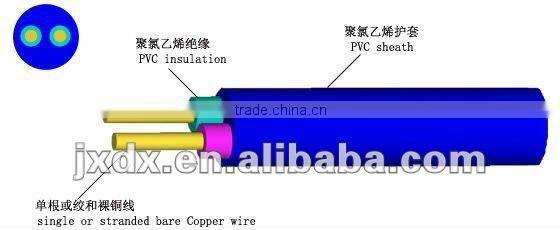

BV/BVV/RV/RVV H07VV-K double PVC covered electric Wire Cable
1.Range of Application
Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2.Service Conditions
Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.
3.Model and Name:see table1
Model | Name |
RV | Copper Core PVC Insulation Flexible Wire |
RVB | Copper Core PVC Insulation Flat Flexible Wire |
RVS | Copper Core PVC Insulation Twisted Flexible Wire |
RVV | Copper Core PVC Insulation Sheath Round Flexible Wire |
RVVB | Copper Core PVC Insulation Sheath Flat Flexible Wire |
RV-90 | Copper Core Heat-resistak Losc PVC Flexible Wire |

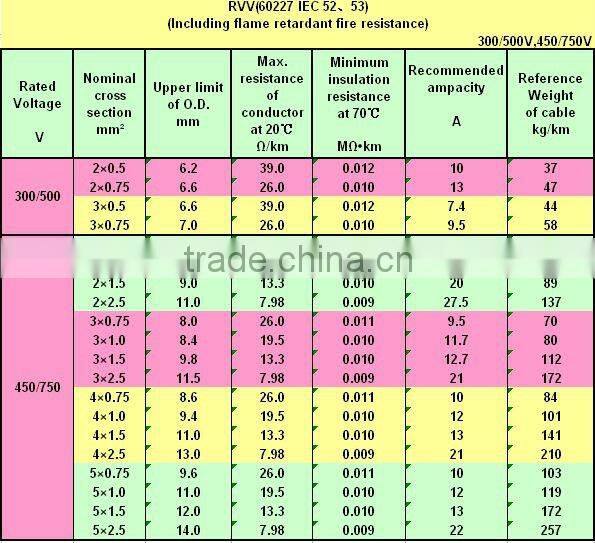

4.Specification Size and Technical Data:see table 2
Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
0.3 | 16/0.15 | 2.3 | 6.4 |
0.4 | 23/0.15 | 2.5 | 8.1 |
0.5 | 16/0.2 | 2.6 | 9.1 |
0.75 | 24/0.2 | 2.8 | 12.2 |
1.0 | 32/0.2 | 3.0 | 15.1 |
RV 450/750V
Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
1.5 | 30/0.25 | 3.5 | 21.4 |
2.5 | 49/0.25 | 4.2 | 24.5 |
4 | 56/0.20 | 4.8 | 51.8 |
6 | 84/0.30 | 6.4 | 74.1 |
10 | 84/0.30 | 8.0 | 12.4 |
Other sizes can also be produced as you required.
