BVVB BVVB+E CU PVC PVC Multi-stranded flexible flat cable
- 800000 Meter / Meters per Month
- Shenzhen
- T/T
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Yongkuntai | Model Number: | BVVB BVVB+E |
Type: | Insulated | Application: | Overhead | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | PVC |
Product Description
BVVB BVVB+E CU PVC PVC Multi-stranded flexible flat cable
1.ITEM DESCRIPTION:
Name: BVVB BVVB+E CU PVC PVC Multi-stranded flexible flat cable.
Sheathed cable is one of the most common household wiring, usually consisted of three core( Twin & Earth ) or two-core. A high quality, well constructed product which is easily stripped and worked with. With its outer layer jacket eliminating the need for trunking and wear tube, it is very convenient used in building and construction.Building wire is fit for AC rated voltage 300/500V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
Model:BVVB(without earth core),BVVB+E( Twin & Earth )

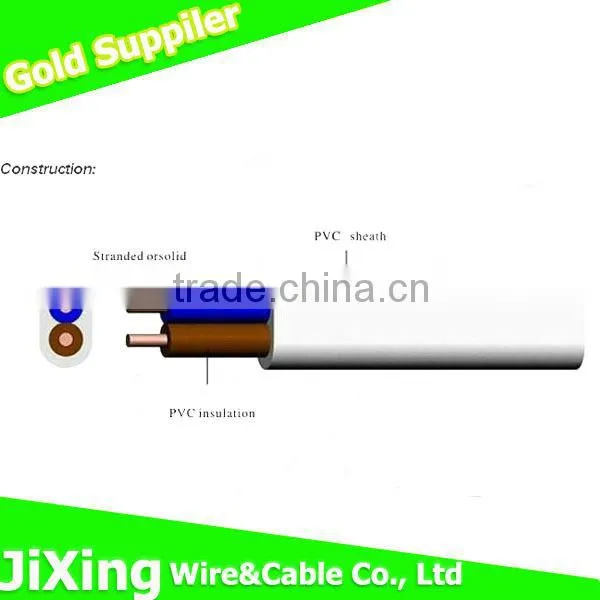

Construction:
BVVB
conductor:single solid copper wire or multi-core stranded copper wire
Insulation&sheath:PVC
BVVB+E
Specification:
number of cores*section-area of each core(sq mm)
BVVB
2×0.50, 2×0.75,2×1,2×1.5,2×2.5,2×4,2×6.
Application: General purpose flexible PVC cable suitable for use in dry domestic, commercial, indoor and outdoor conditions. It can be used for general electrical and security applications such as lawnmowers, Power Tools, Table & Floor Lamps, Radios, office equipment, lighting pendants, CCTV, Intruder Alarm and Access Control where an earth is not required.
Service Conditions
Working temperature:Not more than 70oC.
Technical data
PVC insulated PVC sheathed flat wire
Type | Name | Properties |
BVVB | Copper-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70℃ |
BLVVB | Aluminum-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70℃ |
Technical data (BVVB/BLVVB)
Core number & sectional area, mm | Conductor structure, Nr./mm | Stipulated insulation thickness, mm | Stipulated sheath thickness, mm | Average external size, mm | 20°C , DC, resistance ≤Ω/km | ||
Min. | Max. | Copper-core | Aluminum-core | ||||
2×0.75 2×1.0 2×1.5 2×2.5 2×4 2×4 2×6 2×6 2×10 3×0.75 3×1.0 3×1.5 3×2.5 3×4 3×4 3×6 3×6 3×10 | 1/0.97 1/1.13 1/1.38 1/1.78 1/2.25 7/0.85 1/2.78 7/1.04 7/1.35 1/0.97 1/1.13 1/1.38 1/1.78 1/2.25 7/0.85 1/2.78 7/1.04 7/1.35 | 0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.8 1.0 0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.8 1.0 | 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.1 1.2 0.9 0.9 0.9 1.0 1.1 1.1 1.1 1.1 1.2 | 3.8×5.9 3.9×6.1 4.4×7.0 5.1×8.4 5.6×9.2 5.7×9.5 6.2×10.4 6.4×10.8 7.9×13.4 3.8×7.9 3.9×8.4 4.4×9.6 5.1×11.6 5.8×13.1 5.9×13.5 6.2×14.5 6.4×15.1 7.9×19.0 | 4.6×7.1 4.8×7.4 5.3×8.5 6.2×10.1 6.7×11.1 6.9×11.5 7.5×12.5 7.8×13.0 9.5×16.2 4.6×9.6 4.8×10.1 5.3×11.7 6.2×14.0 7.0×15.8 7.1×16.3 7.5×17.5 7.8×18.2 9.5×23.0 | 24.5 18.1 12.1 7.41 4.61 4.61 3.08 3.08 1.83 24.5 18.1 12.1 7.41 4.61 4.61 3.08 3.08 1.83 | - - - 12.1 7.41 - 4.61 - 3.08 - - - 12.1 7.41 - 4.61 - 3.08 |

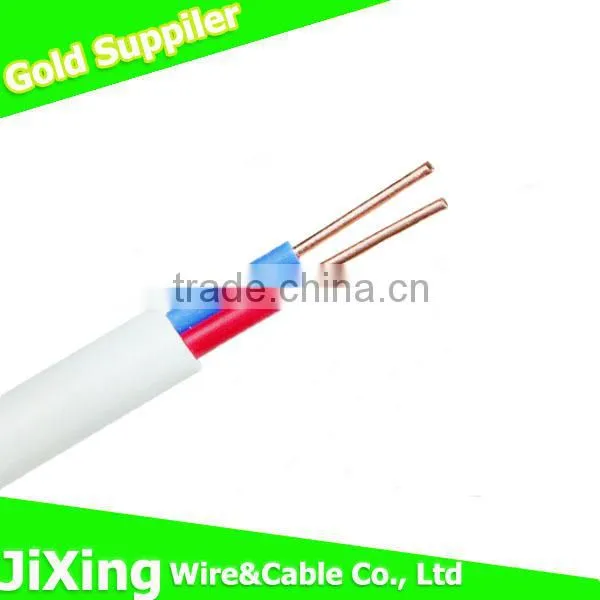

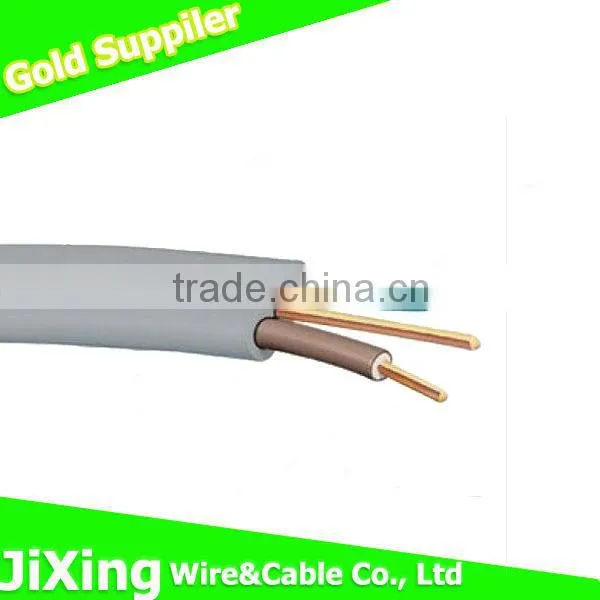

Pictures Of different Specifications
2.Our factory:
company profile:
Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.
3.Our equipment:
4.Our electric cable and wire:
0.6/1KV PVC,XLPE insulated armored power cable
Environment-friendly LSZH(low smoke halogen free) cable
Flame retardant cable
Branching wire
aluminum cable
Welding cable
Internet Lan cable
control cable
THHN,THW etc UL America standard cable
CCA cable
We can also providing customizing service according to your requirement,your specificantions and sample.
5.Our Certifications:
6.Our customers:
7.Construction Case
Shenzhen Longgang Grand Canal Center Stadium
8.Our Package
9.Contract with me:
Austin
Skype:Austin Electric Cable
Wechat/whatsapp:18879133952
QQ:1795002689
Tel:13528477143
