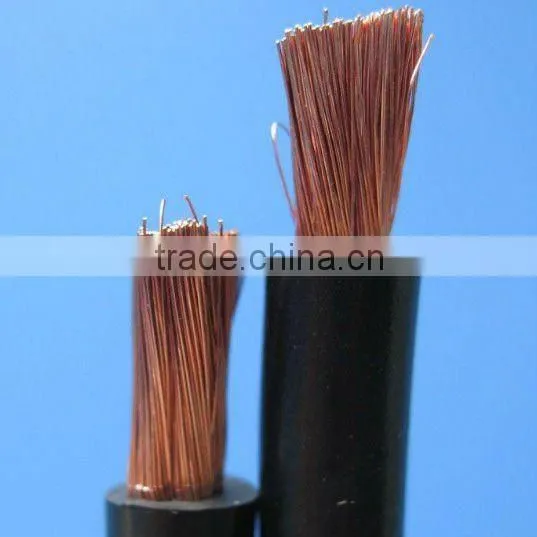

China CCC extra flexible copper cable 70mm single core CU/PVC

FOB Price

USD $0.1 - $10 / Meter

10000 Meters(Min.Order)

Supply Ability 30000000 Meter / Meters per Month
Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	YONGKUNTAI TIANXIANG
Model Number	RV	Type	Insulated
Application	Other, suitable for power and lighting circuits and building wiring	Conductor Material	Copper
Conductor Type	Other, Extra Flexible and Stranded	Insulation Material	Other, PVC (Polyvinyl Chloride)

Product Description

Specifications

1.PVC single core cable
2.Extra flexible cable
3.Low price good quality
4.Professional cable manufacturer
5.China RV series

RV---regular specification

Name	Usage	Specification
300/500V or 450/750V Copper conductor PVC insulated flexible connector cable (electrical wire)	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	RV 0.3mm²
		RV 0.5mm²
		RV 0.75mm²
		RV 1mm²
		RV 1.5mm²
		RV 2.5mm²
		RV 4mm²
		RV 6mm²
		RV 10mm²
		RV 16mm²
		RV 25mm²
		RV 35mm²
		RV 50mm²
		RV 70mm²

RV 1mm ² (32pcs of copper wires)

RV 1.5mm ² (20 pcs of copper wires)

RV 2.5mm ² (80 pcs of copper wires)

RV 25mm ² (280 pcs of copper wires)

All models:

BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV

Code Designation by IEC	Code Designation by GB	Rated Voltage	Name	Application	Rated Temperature
60227 IEC 01	BV	300/500V	Copper conductor PVC insulated rigid cable (electrical wire)	Fixed laid indoors Instrument etc.	0°C to +70°C
60227 IEC 05	BV	450/750V
	BLV	450/750V	Aluminum conductor PVC insulated rigid cable (electrical wire)
	BVR	450/750V	Copper conductor PVC insulated semi-flexible cable (electrical wire)	Be for laying permanent place where flexible required.	0°C to +70°C
60227 IEC10	BVV	300/500V	Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire)	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.	0°C to +70°C
	BLVV	300/500V	Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)
	BVVB	300/500V	Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)
	BLVVB	300/500V	Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)
60227 IEC 02	RV	450/750V	Copper conductor PVC insulated flexible connector cable (electrical wire)	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	0°C to +70°C
60227 IEC 06	RV	300/500V
60227 IEC 42	RVB	300/300V	Copper conductor PVC insulated flat flexible connector cable (electrical wire)
	RVS	300/300V	Copper conductor PVC insulated flexible twisting connector cable (electrical wire)
60227 IEC 52	RVV	300/300V	Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
60227 IEC 53	RVV	300/500V

Packing--(size from RV0.3mm² to RV16mm² )

1-paper reel

2-plastic reel

3-metal reel

4-plastic film (free)

5-plastic bag+belt

Packing--(size above RV25mm² )

Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag

Option3-plywood reel

Why choose us?

1)Rated Voltage: 300/500V,450/750V

2)Rated temperature:0°C to 70 °C

3)Standard: GB, IEC. etc.

4)Testing Voltage: 2.5KV

5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046

6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)

7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey

8)Sheath:non-sheath

9)Certification: CCC,CE,RoHS

10)20 years manufacturing experience

11)Specialized in electric/electrical appliances,lighting,construction,home applicances

12)Customer wire cable

13)Stock available, free sample

14)Small profits, quick returns

15)High quality and competitive price

16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery

Our factory

*Kindly note that also we can make cables according to your requirements.
