Specifications
1.CE,CCC,RoHS2.Reliable manufacturer, exporter
3.Credible quality,Factory price

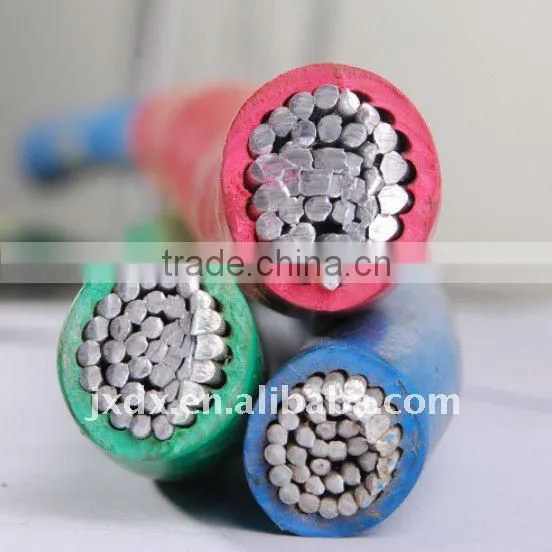

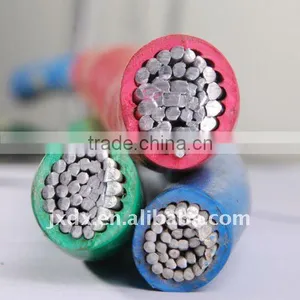

4.PVC insulated aluminum conductor
Standard
GB/T 5023.3-2008/IEC 60227-3:1997,JB/T 8734.2-1998
Voltages U /U0
450/750V 300/500V 300/300V
Max. permissible continuous operating temperature of the conductor: 70°C
The ambient temperature under installation should not below: 0°C
Impedance (ohms): 100±2ohm
Application
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
Model and Name
Model |
Name |
BV |
Copper Conductor PVC Insulation Cable /Electric Wire |
BLV |
Aluminum Conductor PVC Insulation Cable /Electric Wire |
BLVV |
Aluminum Conductor PVC Insulation PVC Sheath Round Cable /Electric Wire |
BVR |
Copper Conductor PVC Insulation Flexible Cable /Electric Wire |
BVV |
Copper Conductor PVC Insulation PVC Sheath Round Cable /Electric Wire |
BVVB |
Copper Conductor PVC Insulation PVC Sheath Flat Cable /Electric Wire |
BLVVB |
Aluminum Conductor PVC Insulation PVC Sheath Flat Cable /Electric Wire |
Build up the bridge between you and me ,by emailing us your requirements.
1.OD(Overall Diameter) =mm?
2.Sectional Area=mm²?
3.Inner Diameter=mm?
Our quality certification: CE for European Union,CCC for China.
Our insulation and jacket material: PVC( polrvinyl chloride) only.
