aluminum welding wire
- 800000 Meter / Meters per Month
- Shenzhen
- T/T Credit Card
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Yongkuntai | Model Number: | YH |
Type: | Other, Insulated, aluminum welding wire | Application: | Other, Welding Machine | Conductor Material: | Aluminum |
Conductor Type: | Stranded | Insulation Material: | PVC |
Product Description

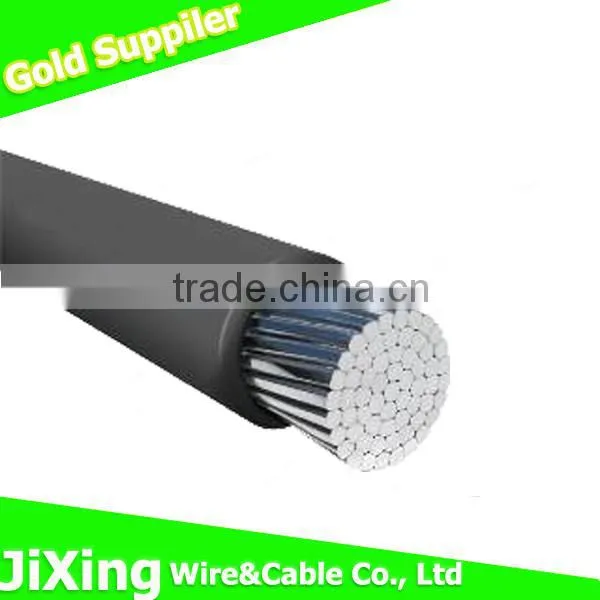

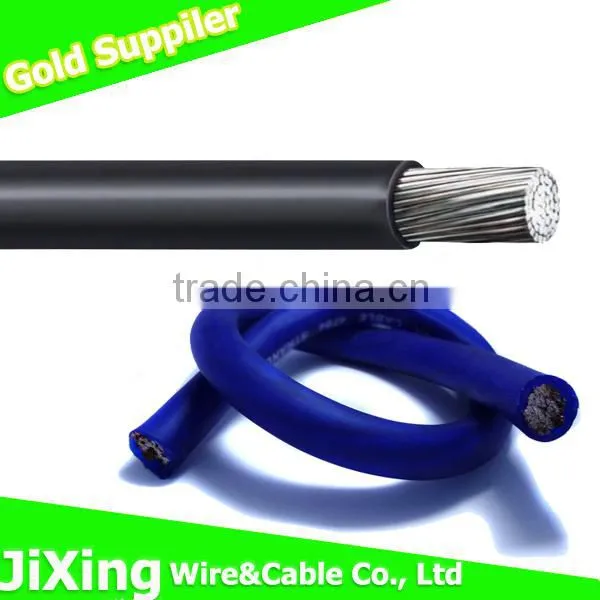

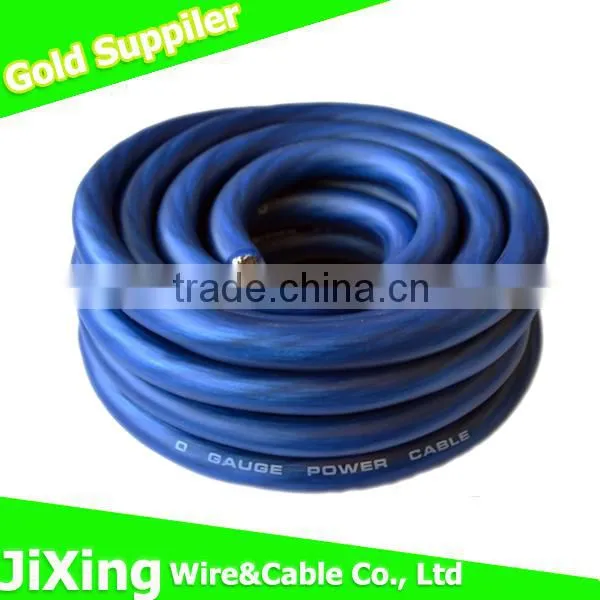

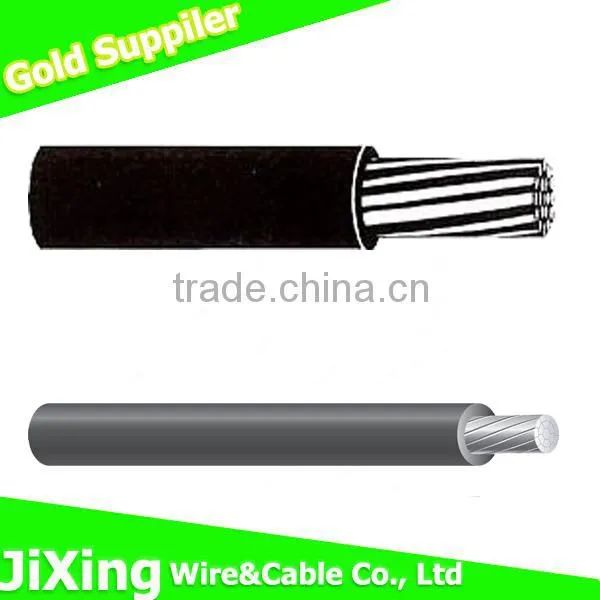

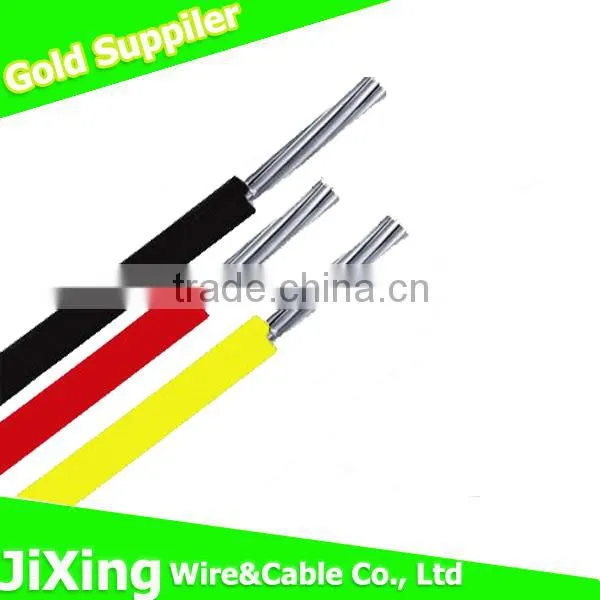

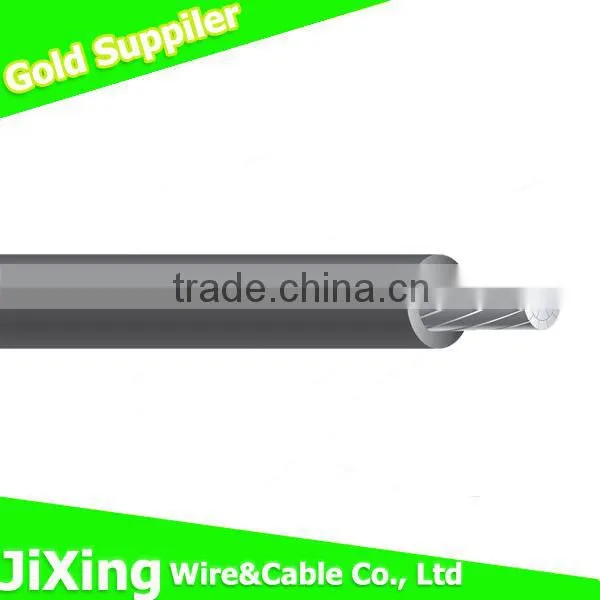

aluminum welding wire
1.ITEM DESCRIPTION:
Model:
VV:copper core PVC insulated PVC sheathed power cable
VLV:Aluminum core PVC insulated PVC sheathed power cable
VV22:cooper core PVC insulated,steel tape armored (STA),PVC sheathed power cable
VLV22:Aliuminum core PVC insulated,steel tape armored (STA),PVC sheathed power cable
YJV: copper core XLPE insulated PVC sheathed power cable
YJLV: Aliuminum core XLPE insulated PVC sheathed power cable
YJV22: copper core XLPE insulated PVC sheathed steel tape armored (STA) power cable
YJLV22: Aliuminum core XLPE insulated PVC sheathed steel tape armored (STA) power cable
V means PVC,L means aliuminum,22 means steel tape armored(STA)
Description:Single core and multi-core cables with copper or aluminium conductor;XLPE insulated and PVC sheathed. Cables are rates at 0.6/1KV and conform to IEC 60502.
Construction:
Conductor:Plain annealed copper or aluminium conductor
Shape: Circular Compacted or shaped Stranded Conductor (Class 2)
Insulation:VV/VV22 PVC
YJV/YJV22 XLPE (cross-linked polyethylene) rated at 90℃
Colours for core indentification:
Single core-natural(black on request)
Two core-red,black
Three core-red, yellow,blue and black
Five core-red,yellow,blue,black and green/yellow
Armour:Galvanized steel wire armoured(SWA) or steel tape armoured(STA).
Sheath:PVC type ST2 to IEC 60502,colour black
Assembly:Two,three,four or five insulated conductors are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.
Application:
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1KV indoor or outdoor,enclosed in conduit, in underground duct where not subject to mechanical damage.
Non-armoured cables are designated for general use including underground bruial,where they are not likely to suffer mechanical damage.
Armoured cables are most suitable for underground burial where there is a risk of mechanical damage.
Standards
International:IEC 60502,IEC 60228
China:GB/T 12706,1-2008
Other standards such as BS,DIN and ICEA upon request
Certificates
CE,RoHS,CCC,SGS,ISO-9001 and more others at request
Technical data
Max.Conductor Temp:normal(70℃),short circuit no more than 5s(160℃ when section-area below 300mm2,140℃ when section-area above 300mm2)
Min. Ambeent Temp:0℃after installation and only when cable is in a fixed position
Min. Bending Radius:20×O.D.
Operating Features
1, Max .Long-time operating temperature of PVC insulated cable is 70°C
Max .Long-time operating temperature of XLPE insulated cable is 90°C
2.Installing temperature of cable should not be less than 0°C
3, Max short-circuit temperature is not exceed 250°C, Not more than5 Sec.
4,Ambient temperature of installation is not lower than 0°C
5,With good chemical stabilities, such as resistance to acid, alkali, salt, oil and organic solvent and flam-retardant..
6,With light weight, good character, easy to installation and maintenance.
Istallation:
In air
1.As the single core cable laying in parallel,the distance between the cables center is 2 times of the cable diameter,which cross sectional area of conductor<=182mm and 90mm,which cross sectional area of conductor>=240mm
2.Ambient temperature:40℃
3.Max.Temperature of conductor:90℃
4.Rating factors of current for ambient temperature.
Air temperature | 20℃ | 25℃ | 30℃ | 35℃ | 40℃ | 45℃ |
Rating factor | 1.29 | 1.22 | 1.15 | 1.08 | 1 | 0.91 |
Direct in ground
1.When the single core cable are installed separately,the distance between the cable's center is 2 times of the cable diameter.
2.Ambient temperature:25℃
3.Max. Temperature of conductor:90℃
4.Soil therm our resistively:1℃.m/W
5.Depth of laying:0.7m
6.Rating factors of current rating for ambient temperature.
Air temperature | 20℃ | 25℃ | 30℃ | 35℃ | 40℃ |
Rating factor | 1.04 | 1 | 0.96 | 0.92 | 0.87 |
Norminal cross section size of conductor: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, , 500mm2 630mm2
Cores available: Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores.
Wire Gauge(No. of cores*section-area of each core)(mm2) | wires of each core | thickness of insulation(mm) | thickness of steel tape armour(mm) | thickness of outer sheath(mm) | O.D.(mm) | Weight(kg/km)
| resistance of conductor at 20℃ (Ω/km) | ||
Cu | Al | Cu | Al | ||||||
4*1.5 | |||||||||
4*2.5 | |||||||||
4*4 | 1 | 1 | 2*0.2 | 1.8 | 18.5 | 565 | 464 | 4.61 | 7.41 |
4*6 | 1 | 1 | 2*0.2 | 1.8 | 19.7 | 685 | 533 | 3.08 | 4.61 |
4*10 | 7 | 1 | 2*0.2 | 1.8 | 22.8 | 960 | 699 | 1.83 | 3.02 |
4*16 | 7 | 1 | 2*0.2 | 1.8 | 25.3 | 1273 | 851 | 1.15 | 1.91 |
4*25 | 7 | 1.2 | 2*0.2 | 1.8 | 30.5 | 1998 | 1374 | 0.327 | 1.2 |
4*35 | 7 | 1.2 | 2*0.2 | 1.9 | 33.5 | 2505 | 1602 | 0.524 | 0.868 |
4*50 | 19 | 1.4 | 2*0.5 | 2.0 | 35.2 | 3122 | 1832 | 0.387 | 0.641 |
4*70 | 19 | 1.4 | 2*0.5 | 2.2 | 38.7 | 4025 | 2220 | 0.268 | 0.443 |
4*95 | 19 | 1.6 | 2*0.5 | 2.4 | 44.7 | 5291 | 2842 | 0.193 | 0.32 |
4*120 | 37 | 1.6 | 2*0.5 | 2.5 | 49.4 | 6464 | 3370 | 0.153 | 0.253 |
4*150 | 37 | 1.8 | 2*0.5 | 2.6 | 53.7 | 7866 | 3998 | 0.124 | 0.206 |
4*185 | 37 | 2.0 | 2*0.5 | 2.8 | 58.9 | 9452 | 4772 | 0.991 | 0.164 |
4*240 | 61 | 2.2 | 2*0.5 | 3.0 | 61 | 11916 | 5727 | 0.0754 | 0.125 |
4*300 | 61 | 2.4 | 2*0.5 | 3.0 | 67 | 14118 | 6558 | 0.601 | 0.1 |
4*400 | 61 | 2.4 | 2*0.5 | 3.4 | 73.6 | 19950 | 9366 | 0.047 |
2.Our factory:
company profile:
Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.
3.Our equipment:
4.Our electric cable and wire:
0.6/1KV PVC,XLPE insulated armored power cable
Environment-friendly LSZH(low smoke halogen free) cable
Flame retardant cable
Branching wire
aluminum cable
Welding cable
Internet Lan cable
control cable
THHN,THW etc UL America standard cable
CCA cable
We can also providing customizing service according to your requirement,your specificantions and sample.
5.Our Certifications:
6.Our customers:
7.Construction Case
Shenzhen Longgang Grand Canal Center Stadium
8.Our Package
9.Contract with me:
Austin
Skype:Austin Electric Cable
Wechat/whatsapp:18879133952
QQ:1795002689
Tel:13528477143
