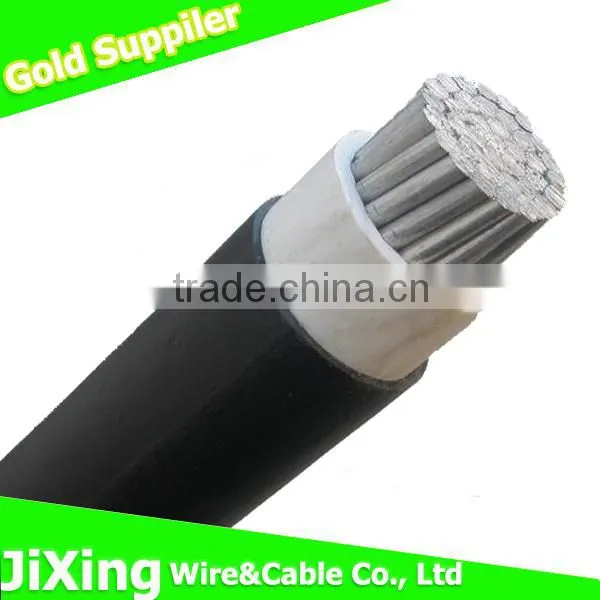

Stranded Single core Aluminum cable 240mm2 with PVC insulation

  Stranded Single core Aluminum cable 240mm2  with PVC insulation

1.ITEM DESCRIPTION:

Name:  4 core dc power cable

Model:

VV:copper core PVC insulated PVC sheathed power cable

VLV:Aluminum core PVC insulated PVC sheathed power cable

VV_{22:cooper core PVC insulated,steel tape armored (STA),PVC sheathed power cable}

VLV_{22:Aliuminum core PVC insulated,steel tape armored (STA),PVC sheathed power cable}

YJV: copper core XLPE insulated PVC sheathed power cable

YJLV: Aliuminum core XLPE insulated PVC sheathed power cable

YJV22: copper core XLPE insulated PVC sheathed steel tape armored (STA)  power cable

YJLV22: Aliuminum core XLPE insulated PVC sheathed steel tape armored (STA) power cable

V means PVC,L means aliuminum,22 means steel tape armored(STA)

Description:Single core and multi-core cables with copper or aluminium conductor;XLPE insulated and PVC sheathed. Cables are rates at 0.6/1KV and conform to IEC 60502.

Construction:

Conductor:Plain annealed copper or aluminium conductor

Shape: Circular Compacted or shaped Stranded Conductor (Class 2)

Insulation:VV/VV₂₂  PVC

                  YJV/YJV₂₂  XLPE (cross-linked polyethylene) rated at 90℃

Colours for core indentification:

Single core-natural(black on request)

Two core-red,black

Three core-red, yellow,blue and black

Five core-red,yellow,blue,black and green/yellow

Armour:Galvanized steel wire armoured(SWA) or steel tape armoured(STA).

Sheath:PVC type ST2 to IEC 60502,colour black

Assembly:Two,three,four or five insulated conductors are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.

Application:

Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1KV indoor or outdoor,enclosed in conduit, in underground duct where not subject to mechanical damage.

Non-armoured cables are designated for general use including underground bruial,where they are not likely to suffer mechanical damage.

Armoured cables are most suitable for underground burial where there is a risk of mechanical damage.

Standards

International:IEC 60502,IEC 60228

China:GB/T 12706,1-2008

Other standards such as BS,DIN and ICEA upon request

Certificates

CE,RoHS,CCC,SGS,ISO-9001 and more others at request

Technical data

Max.Conductor Temp:normal(70℃),short circuit no more than 5s(160℃ when section-area below 300mm2,140℃ when section-area above 300mm2)

Min. Ambeent Temp:0℃after installation and only when cable is in a fixed position

Min. Bending Radius:20×O.D.

Operating Features

1, Max .Long-time operating temperature of PVC insulated cable is 70°C

Max .Long-time operating temperature of XLPE insulated cable is 90°C

2.Installing temperature of cable should not be less than 0°C

3, Max short-circuit temperature is not exceed 250°C, Not more than5 Sec.

4,Ambient temperature of installation is not lower than 0°C

5,With good chemical stabilities, such as resistance to acid, alkali, salt, oil and organic solvent and flam-retardant..

6,With light weight, good character, easy to installation and maintenance.

Istallation:

In air

1.As the single core cable laying in parallel,the distance between the cables center is 2 times of the cable diameter,which cross sectional area of conductor<=182mm and 90mm,which cross sectional area of conductor>=240mm

2.Ambient temperature:40℃

3.Max.Temperature of conductor:90℃

4.Rating factors of current for ambient temperature.

Direct in ground

1.When the single core cable are installed separately,the distance between the cable's center is 2 times of the cable diameter.

2.Ambient temperature:25℃

3.Max. Temperature of conductor:90℃

4.Soil therm our resistively:1℃.m/W

5.Depth of laying:0.7m

6.Rating factors of current rating for ambient temperature.

Norminal cross section size of conductor: 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², , 500mm²  630mm²

Cores available: Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores.
