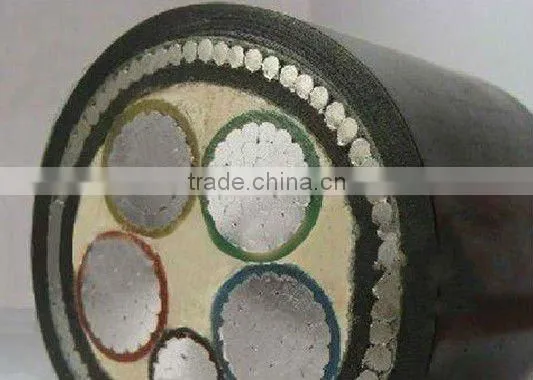

low voltage Tape armoured Power aluminium cable
we can manufacture one to five cores all kinds of VV cable.
China Type |
Description |
Application |
|
Cu |
Al |
||
YJV |
YJLV |
XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC) |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE) |
|
YJV62 |
YJLV62 |
XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC) |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
Application:
XLPE insulated corrugated Aluminum sheathed PVC outer sheath power cable for laying in tunnel or duct , used in damp environment or the place where water level is comparatively high,and able to bear moderate pressure.
XLPE insulated lead sheathed PVC outer sheath power cable also can be used in above place ,but unable to bear pressure.
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.

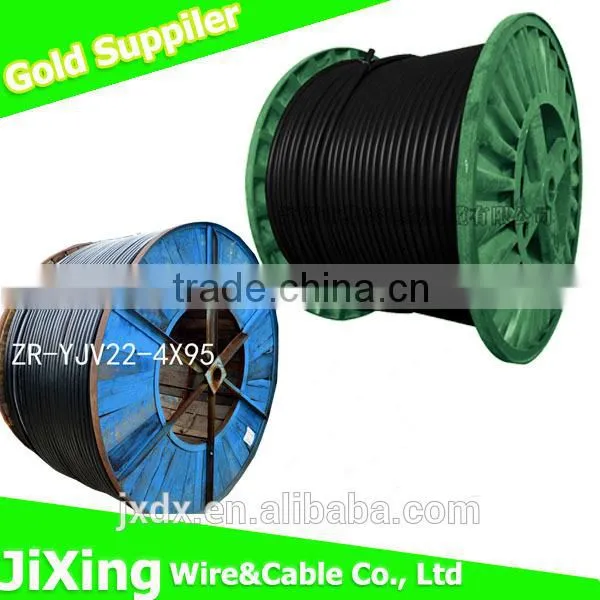

2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other
length could be supplied if required.
Our factory:
Our customers:

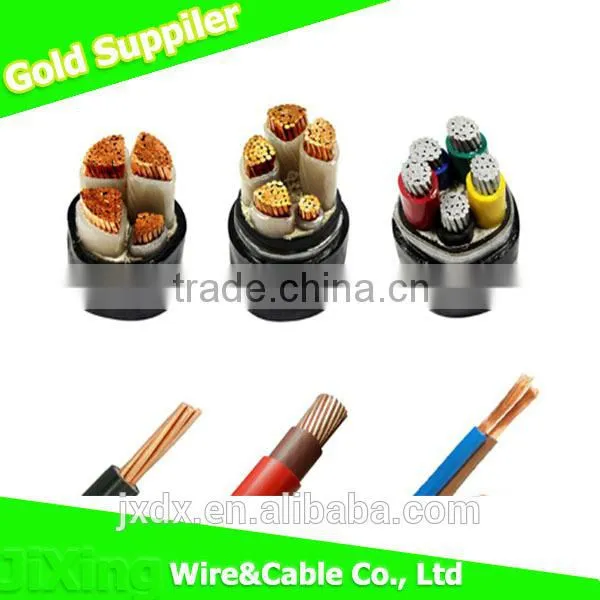

Similar productions:
