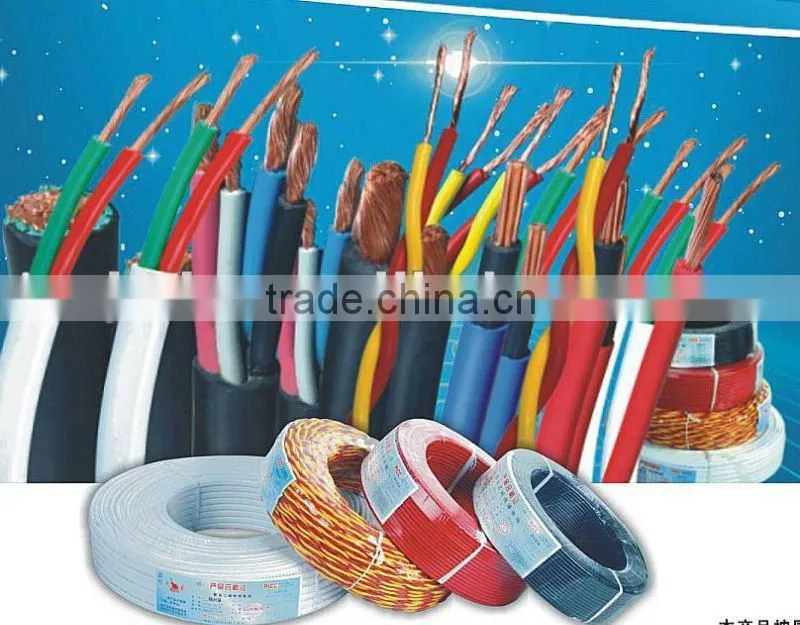

Help CenterCopper Core Wire 6mm With Pvc Insulation
Related Products
-
China BVVB 3 Core Flat White Power Cord CU/PVC/PVC 300/500VUS$ 0.1 - 10MOQ: 5000 Meters -
China CCC RVV 2 Core Flexible Electric Cables 2x1.5mm2 300/500VUS$ 0.137 - 6.865MOQ: 5000 Meters
-
China CCC RVV 2 Core Flexible Pvc Cable 300/500VUS$ 0.137 - 6.865MOQ: 5000 Meters
-
China CCC RVV 3 Core Electric Wire and Cable 16mmUS$ 0.137 - 6.865MOQ: 5000 Meters
-
3 Core Power Cable for HotplateUS$ 0.137 - 6.865MOQ: 5000 Meters
About our products
Usage |
It applies to electrical appliances,household appliances,construction, instrument and telecom device with rate voltage up to and including 450/750 volts. |
Insulation & Sheath Color |
Black, red, white, blue, green, yellow etc.. |
Conductor Material |
CU/AL/CCA Copper/Aluminum/Copper Clad Aluminum |
Model |
BVV,BV,BVVB,BVVB+E,BVR,RV,RVV,KVV,YH,RVS,RVB , BLV,BLVV |
Conductor Type |
Solid or Stranded |
Brand |
Yongkuntai GB, Tianxiang ZB |
Number of cores |
one, two, three, four, five |
Common Wire Specification |
1 sqmm / 1.5 sqmm / 2.5 sqmm sq / 4 sqmm / 6 sqmm / 10 sqmm etc. |
Max. Conductor Operating Temperature |
70 Celsius degree,90 Celsius degree |
|
Rated Voltage
|
300/300V,300/500V, 450/750V |
Relative Standard |
IEC, GB5023, JB |
Certification |
ROHS compliance CCC Approved CE certification |
Packing |
expert standard reels, coils, rolls, bundles |
Model and Name
Type |
Name |
Laying place and requirement |
Long term working Temperature Celsius degree |
|
60227IEC01 (BV) 60227IEC 05 (BV)
|
Copper conductor PVC insulated cable (electrical wire)
|
Fixed laid indoors Conduit etc. |
70 |
BLV |
Aluminum conductor PVC insulated cable (electrical wire) |
||
|
60227IEC07 (BV-90) |
Heat resistant copper conductor PVC insulated cable (electrical wire) at 90 Celsius degree |
Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. |
90 |
BVR |
Copper conductor PVC insulated flexible cable (electrical wire)
|
Be for laying permanent place where flexible required. |
70 |
|
60227IEC10 (BVV) |
Copper conductor PVC insulated PVC sheathed round cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
70 |
|
BLVV |
Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)
|
||
BVVB |
Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)
|
||
BLVVB |
Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)
|
||
|
60227IEC02 (RV) 60227IEC06 (RV) |
Copper conductor PVC insulated flexible connector cable (electrical wire)
|
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
70 |
60227IEC42(RVB) |
Copper conductor PVC insulated flat flexible connector cable (electrical wire)
|
||
|
RVS
|
Copper conductor PVC insulated flexible twisting connector cable (electrical wire)
|
||
|
60227IEC52(RVV) 60227IEC53 (RVV) |
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
|
||
|
60227IEC08 (RV-90)
|
Copper conductor heat resistant PVC insulated flexible connector cable (electrical wire) at 90 Celsius degree |
Mainly used at the places where heat resistance is required |
90 |
Noted:
1.A roll of wire length: 100 meters.(minus or plus 1 or 2 m)

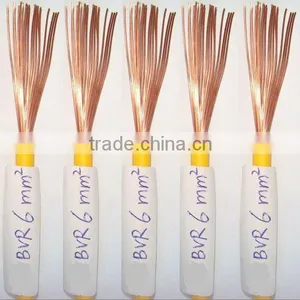

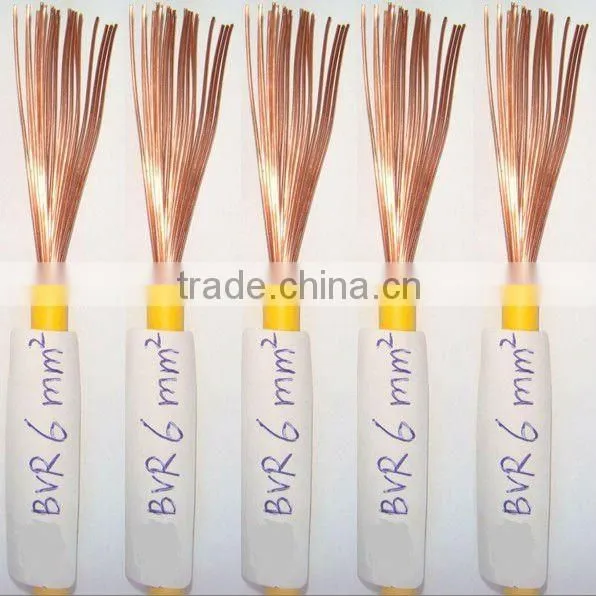

2. BV / BVR difference: BV for the single-strand wire, BVR for the multi-strand wire, price for BVR more than about 5% of BV.
