Home > Products > 2,3,4,5 Core Cable > China BVVB flat flexible wire CU/PVC/PVC 300/500V

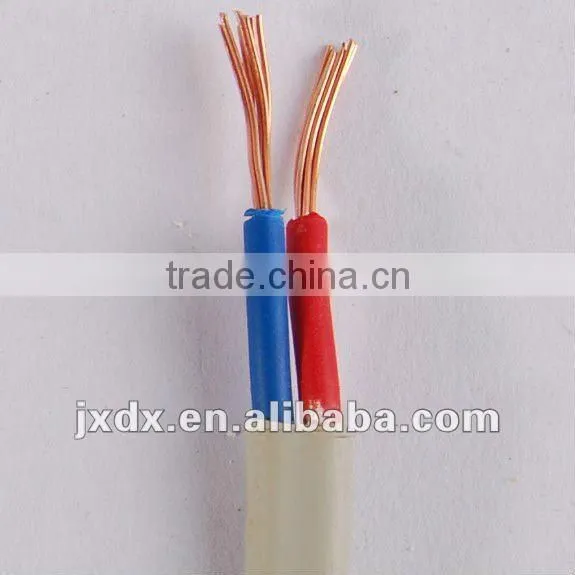

China BVVB flat flexible wire CU/PVC/PVC 300/500V
- 30000000 Meter / Meters per Month
- Shenzhen
- T/T
-
AY A108 Laser Radar FPC Cable Solves iPhone Camera Lag Problem
-
2.5/4/6mm red black solar cable 1500V DC solar cable awg PV solar panel cable
-
New Design 4mm 6mm 10mm Tinned Copper Conductor DC Photovoltaic Solar pv Cable
-
2.5mm 4mm solar dc wire pv electric cable 6mm2 solar panel power cable H1Z2Z2-K photovoltaic solar extension wire
-
electric power solar extension cable 6mm2 solar cable 4mm 10mm 16mm dc pv wire h1z2z2-k solar panel photovoltaic electric cable
-
TUV pv solar cable Red 6mm PV1-F for solar panel collecting cable electric solar cable wire
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Yongkuntai | Model Number: | BVVB |
| Insulation Material: | PVC | Type: | Low Voltage | Application: | Other, Household Applications |
| Conductor Material: | Copper | Jacket: | PVC |
Product Description
About us
Our factory
BVVB (flexible) Structure
BVVB (flexible) Regular Specifications
Name | Usage | Specification |
Copper conductor PVC insulated PVC Sheathed rigid flat cable (electrical wire) | Power cord for house appliances | BVVB 2×1mm² |
BVVB 2×1.5mm² | ||
BVVB 2×2.5mm² | ||
BVVB 2×4mm² | ||
BVVB 2×6mm² |
*Kindly note that also we can make cables and wires according to your required specification.
Packing
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Why choose us?
1)Rated Voltage: 300/500V
2)Rated temperature:0°C to 70 °C
3)Standard: JB8734.2-1998
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:PVC (polyvinyl chloride) Color:black(white,orange,grey,cream,milk available)
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
All models:
BV,BLV,BVR,BVV,BVVB,BLVV,BLVVB,RV,RVB,RVS,RVV
Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | ||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
| BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 | RV | 300/500V | |||
60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227 IEC 53 | RVV | 300/500V |
Our factory
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
Contact Us
- Shenzhen Jixing Electric Wire & Cable Co., Ltd.
- Contact nameCharles Lin
- Phone86-0755-27536065
- AddressA3 First Floor North, Dadi Industrial Area, Yanchuan,Songgang Street,Bao'an District Shenzhen,Guangdong
-
