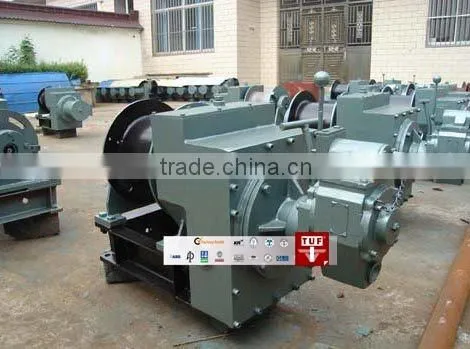

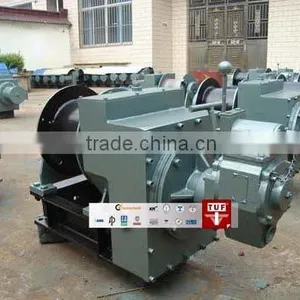

Pneumatic Winch for Accommodation Ladder

US$ 1 - 1 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

TUF

Contact Supplier Request Quote Chat Now

Chongqing Perpetual Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TUF

Specifications

Pneumatic Winch for Accommodation Ladder

Specifications

Pneumatic Winch for Accommodation Ladder:
1) with air motor
2)Working Load: 10KN, 16KN

Pneumatic Winch for Accommodation Ladder:

The winch is a short-time working machinery mainly for hoisting and lowering the ship's accommodation ladder.

Standard: GB1392-85

Main Parts: frame, drum, gear box, motor, handle.

Main Technical Parameters:

Working Load		10KN	16KN
Support Load		30KN	48KN
Rope Dia.		13mm	13-15mm
Pneumatic Motor	Power	3.5-5.5PS	5.5-7PS
	Air consumption	3.5-5.5m3/min	5.5-7m3/min
Air pressure		0.5-0.7Mpa
Hoist Speed		>9.75m/min

Remarks:

1.Change the working oil in the gear box regularly. After the 1st 50hours’ usage, change all lubrication oil and clean the gear box. The lubrication oil should be changed once for one year. N68 (GB443-84) mechanical oil or ISO VG68 is adopted for lubricating. About4.6 liter of lubrication oil should be put into the gear box for the first time .

2. All blocks and riggings that wire rope on drum will pass by should be lubricated with calcium base grease ZG-3(GB491-65) andoften filled with grease.
