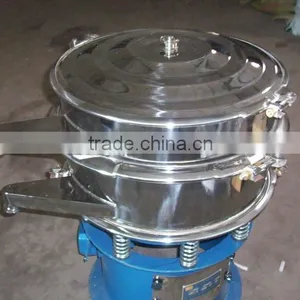

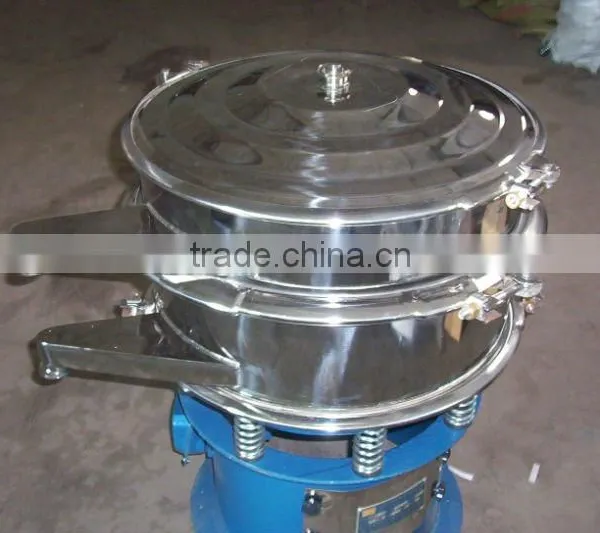

Help CenterPowder Gainsliquid Standard Vibrating Screen
Related Products
-
Metallurgy Vibrating Seiving MachinesUS$ 2,000 - 100,000MOQ: 1 Set -
Metallurgy Vibratory Seiving MachinesUS$ 2,000 - 100,000MOQ: 1 Set
-
Three-Dimension Vibratory Filter for SlurryUS$ 3,000 - 4,500MOQ: 1 Set
-
SY Rotary Vibrating Screen for ChemicalUS$ 2,000 - 20,000MOQ: 1 Set
-
Test Sieve ShakerUS$ 1,000 - 2,500MOQ: 1 Set
Specifications
1.MOQ: 1 set2.Screen powder gainsliquid
3.Closed design, no dust flying
4. ISO9001:2000, CE
Application: this kind of vibrating screen is widely used in sieving and filtering of powder, grains and slurry in various industries,such as food, paper-making, chemical, pharmaceutical, grinding, ceramics, metallurgy, mining, electronic industry etc.
Features:
1. The unique structure of screen mesh, change it conveniently (only 3-5 minutes);
2. Sophisticated machine, easily install, one can operate;
3. Largely effective area, high efficiency;
4. Can be installed up to five layers; can sieve different materials at the same time;
5. High quality of screen mesh, long service life, and low production cost.
Technical Parameters:
Model |
Power(KW) |
Effective diameter |
Dimensions(mm) |
layer |
|
|
SY-400 |
-1S |
0.18 |
360 mm |
580×580×560 |
1 |
-2S |
580×580×670 |
2 |
|||
-3S |
580×580×780 |
3 |
|||
|
SY-600 |
-1S |
0.25-0.55 |
560 mm |
800×800×750 |
1 |
-2S |
800×800×890 |
2 |
|||
-3S |
800×800×1030 |
3 |
|||
|
SY-800
|
-1S |
0.55-0.75 |
760 mm |
900×900×750 |
1 |
-2S |
900×900×890 |
2 |
|||
-3S |
900×900×1030 |
3 |
|||
|
SY-1000 |
-1S |
0.75-1.5 |
930 mm |
1160×1160×810 |
1 |
-2S |
1160×1160×950 |
2 |
|||
-3S |
1160×1160×1090 |
3 |
|||
|
SY-1200 |
-1S |
1.10-1.75 |
1130 mm |
1360×1360×885 |
1 |
-2S |
1360×1360×1050 |
2 |
|||
-3S |
1360×1360×1275 |
3 |
|||
|
SY-1500 |
-1S |
1.50-2.20 |
1430 mm |
1850×1850×990 |
1 |
-2S |
1850×1850×1185 |
2 |
|||
-3S |
1850×1850×1380 |
3 |
|||
|
SY-1800 |
-1S |
2.20-3.0 |
1730 mm |
2200×2200×1050 |
1 |
-2S |
2200×2200×1250 |
2 |
|||
-3S |
2200×2200×1450 |
3 |
|||
