xinxiang sanyuantang wheat flour vibrating screen
- 1000 Set / Sets per Month
- shanghai tianjin.qingdao
- Credit Card
Product Details
Condition: | New | Type: | Circular | Application: | Chemicals |
Place of Origin: | Henan, China | Brand Name: | SANYUANTANG | Model Number: | STZ |
Voltage: | 380V | Power(W): | 1.5kw | Dimension(L*W*H): | Choose |
Weight: | 380kg | Certification: | ISO9001:2002 | Warranty: | 1 Year |
After-sales Service Provided: | No overseas service provided |
Product Description
xinxiang sanyuantang wheat flour vibrating screen
Wheat flour vibrating screen , which has single-and dual vibration source, is mainly used for powder production line processing of powder cleaning and screening .
1.Product description
It is widely used for flour, starch, washing powder, metal powder, additives, chemicals, non-mining sectors of the particle powder rough screening, precision screening. High capacity, easy to integrate with the production line. Can choose between 600MM with 2000MM.
2. Application
This type of direct discharging screen is new-type and multi-purpose. Different from the traditional one with dual-motor structure, this type of screen is with single horizontal vibrating electric motor. So the track of the material can be adjusted in multiple ways, and the equipment can become extraordinarily adaptable. Moreover, the material can be discharged directly, so the handing capacity is greater. This type of equipment is for rough screen and accurate screen of flour, starch, washing-powder, metal powder, additive, and other kinds of particle or powder in chemical, coal, and other related industry. With great handing capacity, this type of equipment is easy to be applied to manufacture. Especially the SYM-1000 screen, which has 24 meshes, performs outstandingly in the producing of instant noodles. In the screening, cleaning and loosing of wheat flour, its rate can reach 350 kg/150 s, and you have more options from 600 mm to 2000 mm.
3. Features
(1).all stainless steel, attractive and durable
(2).small cubage, and easy to move
(3).low consumption, high efficiency
(4).easy to install and clean
(5).automatically work, can continually work for the whole day
(6).low noise
(7).well sealed, no liquid-releasing, no dust-flying
(8).the number of layers is alternative
4.Technical parameters
Model | Power (kw) | Diameter mm | Active Area (centiare) | Size mm | Remarks |
SYM-600 | 0.12 | 520 | 0.2124 | 740*600*500 |
|
SYM-800 | 0.18 | 720 | 0.4072 | 1010*800*600 |
|
SYM-1000 | 0.18 | 890 | 0.6221 | 1200*970*640 |
|
SYM-1200 | 0.25 | 1090 | 0.9331 | 1430*1170*790 |
|
SYM-1500 | 0.55 | 1390 | 1.5175 | 1780*1470*760 |
|

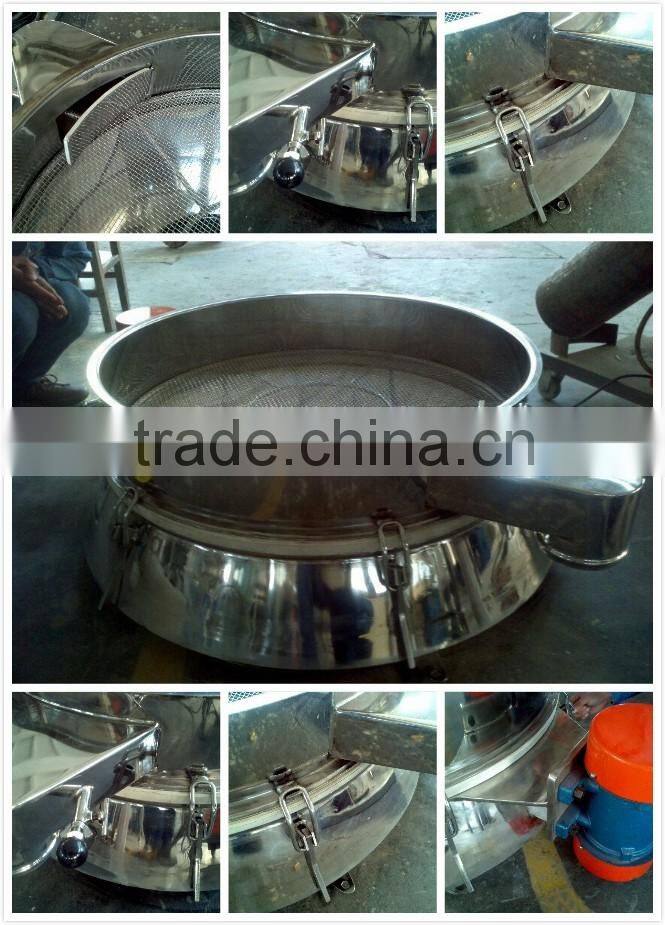

Part of the pictures show
1 .Design as your request
2.Any problems, please feel free to tell us
3.We will offer you the perfect design with competitive price
4. Provide technical support unconditionally.
5. Providing solutions according to the real situation.
Exhibition pictures show:
Frequently Asked Questions (FAQ):
Q: What are you mainly specilized in?
A: Our company is a professional manufacture of vibrating equipments(like rotary vibrating screen,linear vibrating screen,test sieve machine and so on);conveying equipment (like screw conveyor,vertical bucket condeyor and so on);honey processing equipment;grain sieving equipment.we have been in this field for 20 years.
Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.
Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
Ususlly 7-10 working days,if the order is large,the time should be longer.
Q: What’s the advantage compared to other suppliers?
A:We are a Industry and trade company,there isn't any link between customers,so we can offer competitive price for you.
Contact me to get more details...
