High Frequency Vibrating Screen for Screening, Grading and Filtering

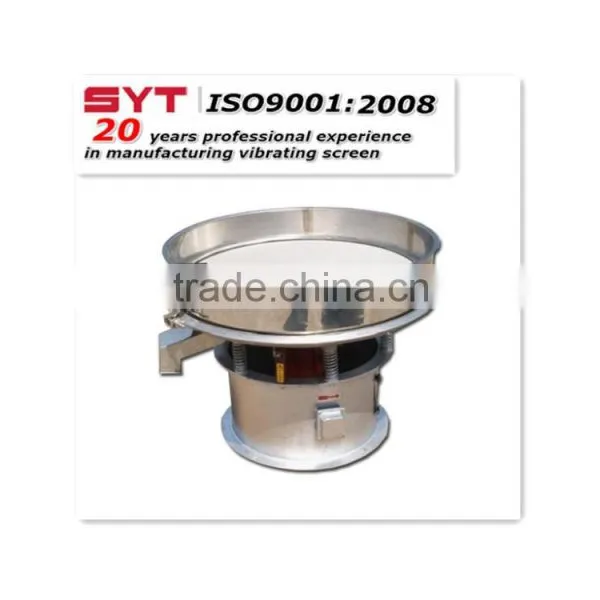

High Frequency Vibrating Screen for Screening, Grading and Filtering photo-1
High Frequency Vibrating Screen for Screening, Grading and Filtering photo-2
High Frequency Vibrating Screen for Screening, Grading and Filtering photo-3
High Frequency Vibrating Screen for Screening, Grading and Filtering photo-4
High Frequency Vibrating Screen for Screening, Grading and Filtering photo-5
High Frequency Vibrating Screen for Screening, Grading and Filtering photo-6
US$ 1,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Chemicals
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai tianjin qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Chemicals
Place of Origin Henan, China
Brand Name SANYUANTANG
Model Number SYT-800
Voltage 380V
Power(W) 1.5kw
Dimension(L*W*H) Choose
Weight 380kg
Certification ISO9001:2002
Warranty 1 Year
After-sales Service Provided No overseas service provided
Product Description

High Frequency Vibrating Screen for Screening, Grading and Filtering

High frequency vibrating screen with a high frequency.On the one hand it destroys the surface tension of ore pulp and the high speed concussion of the fine grained materials in the sieve surface,one the other hand the high speed oscillation increase the contact probability between materials less than separation grsnulsrity and the screen surface.

Application
Chemical industry:Resin,,powder, paint, fine powder, soda,citric acid
Foodstuffs industry:Sugar,salt, alkali milk, powder,soybean milk,yeast
Papermaking industry:ck and white liquid paper,pulp,waste water recycle
Pharmacy:Chinese medicine powder,western medicine powder
Classification
Anyone of our products can screen and separate precisely and continuously Multi layer type can screen and separateof different particles once,and ensure low percentage of undersize and oversize mixture.
Filtrating of Specific Gravity
The mixture of solid and liquid can be separated effectively by single or multi layer type into different grade materials.
Screen the Impurity
Our equipment can quickly separate a few oversize or undersize particles from a quantity of material.

Technical parameter

Model

Effective sieving area (m2)

Screen mesh size

Layer

Power(kw)

JZS-400

0.0907

2-500 mesh

1-3

0.18

JZS-600

0.2289

2-500 mesh

1-3

0.55

JZS-800

0.4169

2-500 mesh

1-3

0.75

JZS-1000

0.6359

2-500 mesh

1-5

1.1

JZS-1200

0.9490

2-500 mesh

1-5

1.1

JZS-1500

1.5386

2-500 mesh

1-5

1.5

JZS-1800

2.2687

2-500 mesh

1-5

2.2

JZS-2000

2.7922

2-500 mesh

1-5

3

 High Frequency Vibrating Screen for Screening, Grading and Filtering



Packaging & Shipping

 High Frequency Vibrating Screen for Screening, Grading and Filtering
