Specifications
Hole Punch Machine1.Suitable for perforting gypsum board,ceiling board
2.Simply operation, easy maintenance.

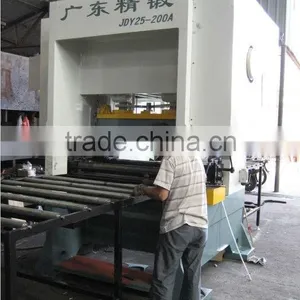

Hole Punch Machine
Perforating machine for gypsum board,Model-"JDY25-100".
1.Length of stroke:60mm
2.Max mold height:250mm
3.Slide adjustment:80mm
4.Distance of both pole:1300mm
( load the max width of gypsum board is 1220mm,thickness of gypsumboard:6-15mm)
5.Main motor power:11KW
6.Gross weight of the machine:11000KG
Good effection for perforating: the holes are Smooth, clean, burr, and vertical.
FOSHAN JINGDUAN MACHINERY MANUFACTURE CO.,LTD is the first and only one manufacture of Gypsum board,Cement board perforating machine in China.
Common punching press
Perforating machine for Gypsum board, Fiber cement board, Calcium silicate board and other building materials
Full automatic metal perforating production line
Some project cases

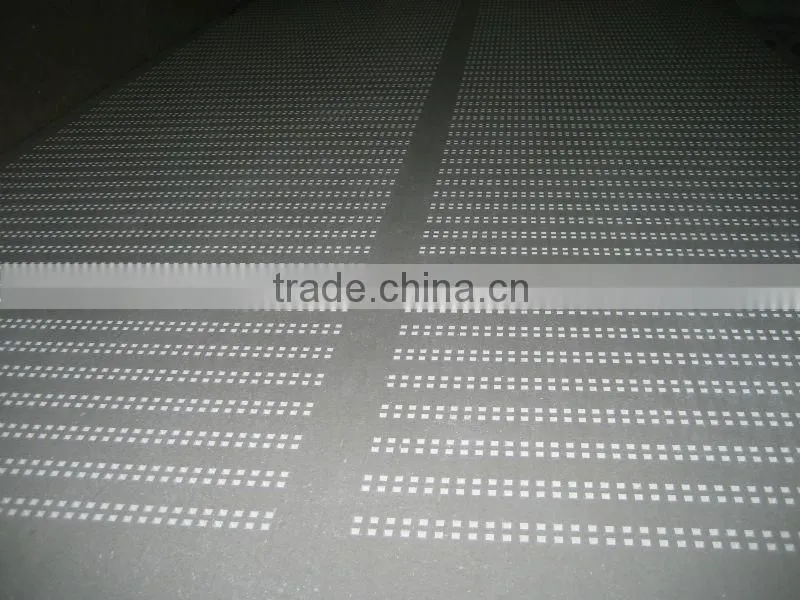

Perfoating effection
