Classic Design roller shutter door roll forming machine
- 30 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- CNC machine tool Oil Lubrication products and equipment
- Centralized Lubrication System Pump for Machinery
- automatic pump control oil machine maintenance lubricators
- electronic products machinery manufacturing lubrication solutions
- cnc turning electric motor machine parts and lubrication pump
- Centralized Lubrication system industrial machinery equipment
Product Details
Place of Origin: | Hebei, China | Brand Name: | TG | Model Number: | TG- shutter |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Equipment Description
1. Material:
1) Suitable Coil Thickness: 0.3-0.7mm
2) Suitable Raw Material: Galvanized steel sheet
2. The Chart of Process flow
Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables
3. The equipment including
Roll forming machine | 1 set |
Hydraulic cutter | 1 set |
Electrical control system | 1 set |
Hydraulic system | 1 set |
Normal run out table | 3 PC 1m*1m |
Manual de-coiler | 1 set Max. loading 5 T |
4. Technical specification and details
(1) Hydraulic Ue-coiler
Un-power: manual de-coiler; Max. Capacity: 7T
Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm
Manual power expands the coil inner surface.
The de-coiler for reference:
(2) Roll forming machine
No |
| |
1 | Suitable Material | Colored Steel plate, Galvanized Board, Aluminum plate |
2 | Rows of rollers | 13 rows |
3 | Appearance size | 5500*800*1000mm |
4 | Total power
| Main motor power -4kw Hydraulic station power-3kw |
5 | Thickness of raw material | 0.3-0.8mm |
6 | Productivity | 8-10m/min |
7 | Diameter OF shaft | 70mm |
8
| Voltage | 380V 50Hz 3phases |
Equipment for Reference:
(3) Hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12 with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.
Hydraulic Cutting for reference:
(4) Hydraulic station
1) It supplies the power for the hydraulic cutter.
2) All hydraulic accessories are all use Chinese famous brand products.
4) Hydraulic motor power: 3KW
Hydraulic station for reference:
(5) PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Delta converter adjusts speed technology, realize the automatic production.
3) Text screen is input and cancelled the working data.
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)
Computer system for reference:
(6) Product Rack (un-powered)
1) They are used to put the final product when product coming out from cutting device.
2) Two pieces, each piece length is 1m, total length is 3 meters.
3) Collect the final product and final products are convenient to be stacked by workers.
Product Rack for Reference:

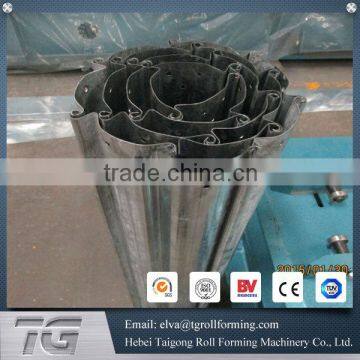

(7). Products for Reference
Products for Reference:
5.Equipment Details.
6. Factory overview
7. Foreign Customers
8. Authentication
9. Payment terms and after-sale service:
1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 30 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 120 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
If you have any further question of our Equipment, please feel free to contact me, thanks!
