Equipment Description
1. Equipment technical specification
Description | ||
Product Name | Roof seet curving machine | |
Machine Size | 2800mm*1200mm*1800mm | |
Install way | Vertical | |
Bending angle | 0-90 degree | |
Working speed | 90 degree /4 minutes | |
Convey rollers | 5 sets | |
Thickness | 0.5-1.0 mm colour steel | |
Min forming semi Diameter of curving | 450mm (Semicircle radius: 550mm) | |
Main Engine power | 4 KW with cycloidal reducer | |
Oil pump type | 63SCY-Y160L-4 | |
Material of press die | 40r, surface hardening and surface nitrating | |
Control systerm | PLC | |

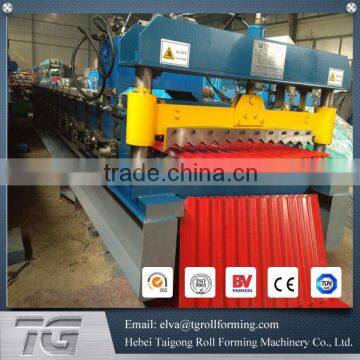

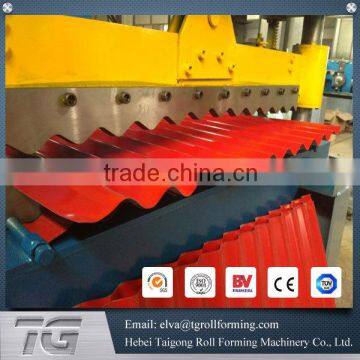

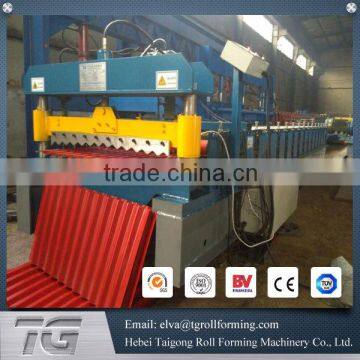

Equipment for Reference:
2. PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Delta converter adjusts speed technology, realize the automatic production.
3) Text screen is input and cancelled the working data.
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)
3. Company Information:
4. Payment terms and after-sale service:
1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 30 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 120 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
If you have any further question of our Equipment, please feel free to contact me, thanks!
