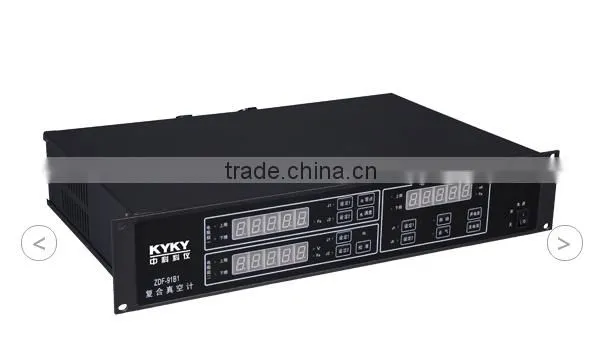

ZDF-91B1 series Composite vacuum gauge
Composite vacuum gauge uses two low vacuum measuring unit and a set of high vacuum measurement units into high-precision, high stability of the vacuum gauge, the way in which the resistance element (resistance gauge II) independently measuring unit low vacuum (1.0 * 105Pa-- -1.0 * 10-1Pa), another road resistance element (resistance normalized) unit combined with ionization is a composite unit, in order to complete 1 * 105Pa --- 1.0 * 10-5Pa continuous measurement and control.
Composite unit has two operating modes, the user can select manual mode or automatic mode according to the needs of the work environment. The gauge series with a high degree of automation, easy to use, stable operation for a long time, has a strong anti-interference ability and other characteristics. It is ideal in industrial production and scientific vacuum measurement equipment.
TECHNICAL DATA:
| Measuring line | 3 line(Resistance gauge 2 line,Ionization gauge 1 line) |
| Regulatory model | Resistance gauge 2,Ionization gauge 1 |
| Measuring range | Independent resistance unit 1.0*105Pa---1.0*10-1Pa;Composite Unit 1.0*105Pa---1.0*10-5Pa |
| Control range | Resistance Unit 2.5*103Pa---5*10-1Pa;Ionization unit2.5*103Pa---5.0*10-5Pa |
| Control circuit | 6 line |
| Control accuracy | ±1% |
| control method | On or off the relay contact, load capacity AC220V / 3A DC28V / 10A (no load) jog or regional control / power-fail memory |
| Display method | Five-digit LED digital display, using scientific notation. For example: 1.2E-1 is expressed as 1.2 * 10-1Pa |
| Analog Output | (0---5)V,(4---20)mA[Note: Only independent unit has an analog output resistance] |
| Communication Interface | RS-232/RS-485 |
| Gauges external control | PLC |
| sampling time | 1S |
| power supply | AC220V±10%50Hz |
| Power | 30W |
| weight | 7KG |
| Chassis dimensions | 480*88*280mm |
| Ambient temperature | 0℃---45℃ humidity ≤ 85% |
