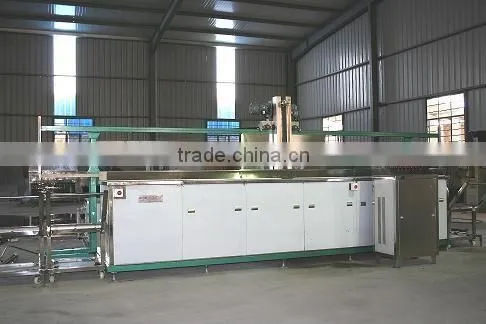

TS-8680 series automatic washing machine
product description:
With the rapid development of automobile industry, motorcycle industry, parts surface treatment process has been great progress.
The company produced a series of automobile, motorcycle parts cleaning equipment, the use of advanced cleaning process by PLC, touch screen control cleaning processes, with automated procedures, and ensure the quality of cleaning, the cleaning process of the workpiece can be carried out while ultrasonic cleaning rotation, polishing, spraying, drum gas and other cleaning methods. A thorough cleaning, the effect is good, fast, and low cost.
Widely used in valve control system, carburetor, cylinder, valve, crankshaft bearing, gear, spark plugs, fuel injectors, vacuum booster, pistons, headlights, door mirrors, sensors, shock absorbers, oil pump, auto air conditioning, cleaning motors, compressors and other auto and motorcycle parts production.
Features:
- Single robot or manipulator portfolio to achieve station process requirements.
- Full PLC program control with the touch screen user interface, ease of operation.
- Automatic loading and unloading station, accurately write unloading workpieces.
- Purification and drying tank, dry and without water spots.
- With throwing cleaning function to ensure clean uniform.
- Closed cover and exhaust system, with a good working environment.
Automatic ultrasonic cleaning machine principle is the transducer, the ultrasonic frequency power source acoustic energy,
and is to be converted into mechanical vibrations, the trough of the cleaning liquid through the cleaning tank ultrasonic radiation to the wall to make it.
Since the irradiated ultrasonic waves, so that the liquid in the tank under the action of micro-bubbles can thereby maintaining the acoustic vibration. When the sound pressure or sound intensity reaches a certain level, when subjected to pressure, the bubble will quickly swell, then suddenly closed. During this process, the instant closure of the bubbles generated shock wave, the bubble generated around 1012-1013pa pressure and Bureau thermostat, this enormous pressure generated by ultrasonic cavitation can destroy insoluble dirt and allow them to differentiate in the solution, steam type cavitation repeated impact directly on the dirt. On the one hand deterioration absorption of dirt and cleaning the surface, and on the other hand can cause fatigue damage dirt layer is split off, vibration-type gas bubbles on the solid surface scrub, dirt floor joints can be drilled once the bubble immediately. " drill "to make dirt layer off vibration due to cavitation, the two liquids quickly dispersed and emulsified in an interface, when the solid particles are wrapped in oil adhered when cleaning the surface, the oil is emulsified off on their own, solid particles, ultrasound will produce positive and negative alternating sound pressure, forming a jet, impact cleaning member, and because of the nonlinear effects will produce acoustic streaming and micro-acoustic streaming, and dissemination of ultrasonic cavitation in the cleaning solution in the solid-liquid interface and will produce high-speed microfluidization, all these effects can damage dirt, weaken or remove the boundary layer of dirt, increasing agitation, diffusion, dissolution accelerating soluble dirt, strengthening the role of cleaning chemical cleaning agents. Thus, any liquid can be immersed in the sound field and the existence of places cleaning action, which is characterized by very complex shapes applied to the surface of the cleaned parts. Especially after the adoption of this technology can reduce the amount of chemical solvents, thus greatly reducing the environmental pollution.
