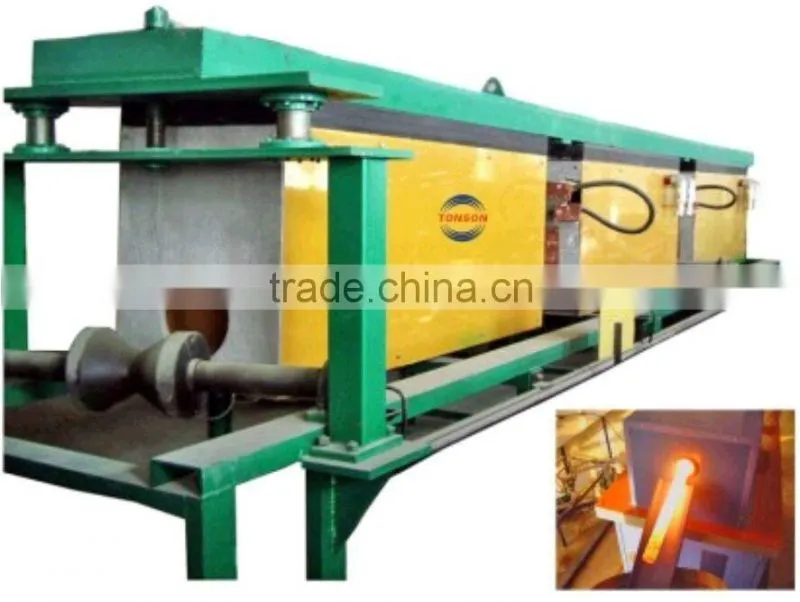

TS-ZP Intermediate frequency oven
Introduction:
TS-ZP IF oven is a power frequency 50HZ alternating current into an intermediate frequency (300HZ above to 10000 HZ) power supply unit, three-phase alternating current frequency, rectified into DC, then DC into adjustable frequency current is supplied from capacitive and inductive coil in the flowing medium frequency alternating current, high-density magnetic field lines generated in the induction coil, the induction coil in full bloom and cutting metal materials, have a huge vortex in the metallic material.
Some properties of these eddy currents also having an intermediate frequency,
i.e., the free electrons in the metal itself has a flow resistance in the metal body to generate heat.
For example, put a metal cylinder placed in an alternating current of medium frequency induction circles, there is no direct contact with the metal cylinder induction coil, the coil is energized itself has very low temperature, but the cylinder surface is heated to redness, and even melted , and this redness and melting speed adjustment as long as the size and frequency of the current strength can be achieved. If the coil is placed in the center of the cylinder, the cylinder is the same as the surrounding temperature, the heating cylinder to melt did not occur, and harmful gases, light pollution of the environment.
It is composed of several parts inverter device, furnace, furnace control other components. SCR frequency power supply is a three-phase frequency alternating current into direct current through a rectifier circuit, and then output through the inverter circuit for the single-phase AC power supply IF IF coreless induction furnace, and then use the principle of electromagnetic induction, and placing the workpiece in an alternating magnetic field the eddy current and heat, to melting, quenching, through heat and other heating requirements.
Feature:
- The central control circuit board by a computer optimized design, circuit optimization unit combination, stabilizing device performance, reliable quality, strong anti-jamming;
- Component placement coordination reasonable, easy maintenance;
- On the basis of zero pressure started on the addition of automatic sweep repeat start function, voltage and current loop circuit closely tracking, equipment start and stop the smooth and stable, no current impact.
- Inverter start signal using a single signal trigger circuit sensitive to further increase the performance of the device start, the starter device success rate reached 100%;
- Constant power circuit control system, with the change in the production of fast charge current and voltage regulation on the optimal settings automatically, without manual adjustment of the inverter cut-off angle;
- With perfect overvoltage, overcurrent, undervoltage, water shortages, lack phase, pressure limiting current protection system, thus ensuring the reliability and stability of work equipment;
- Highly integrated circuit program, commissioning and operation are quick and easy to learn.
Application :
1, Machine Tool quenching;
2, coal cutter welding;
3, mining drill head with a flat head and Phillips brazing welding;
4, thermal deformation of the bolt diameter of 30 or less;
5, hot nut 30 or less in diameter deformation;
6, remelting metal powder;
7, heat treatment of 300 or less in diameter sprocket;
8, 80 or less in diameter shaft quenching process;
9, the following cross-sectional diameter of the workpiece 80 processed;
10, quenching variety of hand tools (hammers, axes, pipe wrenches, bolt cutters);
11, a variety of automotive thermal deformation tools (such as wrenches);
12, automobile, motorcycle parts of local heat treatment;
13, local heat treatment of a variety of mechanical parts (required manufacturers to provide drawings and technical requirements). After the gear shaft quenching equipment quenching Shaft: Hardness uniform and consistent. Even moderate quenched layer. High quality of work. Energy saving. Easy to operate. Cost-effective. Gear shaft quenching equipment and a variety of power tools and auxiliary clamp configurations, suitable for surface hardening of small diameter to 10mm to 500mm- various shaft parts.
