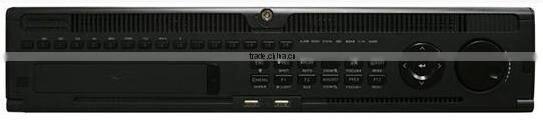

Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap

Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap thumbnail-1
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap thumbnail-2
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap thumbnail-3
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap thumbnail-4
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap thumbnail-5
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap photo-1
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap photo-2
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap photo-3
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap photo-4
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap photo-5
US$ 1,204 - 1,344 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LINOVISION/OEM/Neutral
Model Number:
NVR-8564S
Contact Supplier Request Quote Chat Now
Hangzhou Linovision Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LINOVISION/OEM/Neutral
Model Number NVR-8564S



Key Features



Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap





>  Up to 64 channel IP camera input
>  H.265/H.264/MPEG4 video formats
>  Max 320Mbps or 200 Mbps (when RAID is enabled) incoming bandwidth
>  Supports live view, storage, and playback of the connected camera at up to 12 MP resolution
>  HDMI1/VGA1 and HDMI2/VGA2 outputs provided, HDMI1 Video output at up to 4K (3840 × 2160) resolution
>  Up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup
>  VCA detection alarm is supported
>  HDD hot swap with RAID0, RAID1, RAID5 and RAID10 storage scheme configurable
>  2 self-adaptive 10M/100M/1000M network interfaces, and two working modes are configurable: multi-address and network fault tolerance
>  Instant playback for assigned channel during multi-channel display mode
>  Supports HDD quota and group modes; different capacity can be assigned to different channels
>  Dual-OS design to ensure high reliability of system running



Technical Datasheet

Model

NVR-8564S

Video/Audio input

IP video input

64-ch

Up to 12 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1kΩ)

Network

Incoming bandwidth

320 Mbps, or 200 Mbps (when RAID is enabled)

Outgoing bandwidth

256 Mbps, or 200 Mbps (when RAID is enabled)

Remote connection

128

Video/Audio output

Recording resolution

 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF



VGA1 /HDMI1 output resolution



HDMI1: 4K (3840 × 2160)/60Hz,

4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz,

1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz

VGA2 /HDMI2 output resolution

1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio output

 2-ch, RCA (2.0Vp-p, 1 KΩ)

Decoding

Decoding format

H.265/H.264/MPEG4

Recording resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

16-ch

Capability

4-ch @ 4K or 16-ch @ 1080p

Hard disk

SATA

8 SATA interfaces

eSATA

1 eSATA interface

Capacity

Up to 6TB capacity for each HDD

Disk array

Array type

RAID0, RAID1, RAID5, RAID10

Number of arrays

4

External interface

Network interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Serial interface

RS-232; RS-485; Keyboard

USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out

16/4

General

Power supply

100 to 240 VAC, 50 to 60 Hz

Max. Power

200 W

Consumption

(without hard disk)

≤ 30 W

Working temperature

-10 to +55° C (14 to 131° F)

Working humidity

10 to 90 %

Chassis

19-inch rack-mounted 2U chassis

Dimensions (W × D × H)

445 × 470 ×90 mm (17.5"× 18.5" × 3.5")

Weight (without hard disk)

≤ 10 Kg (22 lb)
Product Details
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap
Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap

Company Profile

Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.

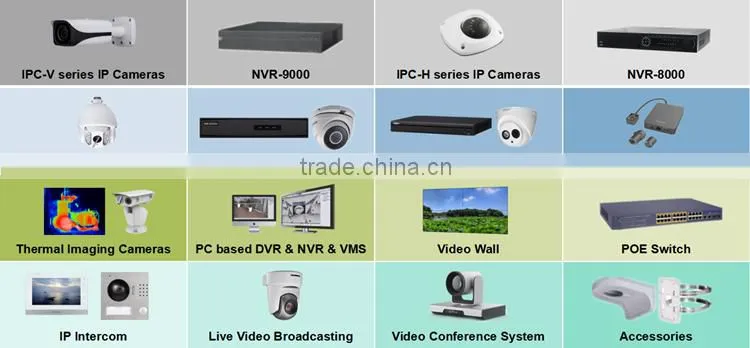

We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.



Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.



Our Mission: To be a global leading integrated video surveillance solutions provider.

Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap

Our Advantage

  • Consulting and Systems designing
  • Product qualification and recommendation
  • Project Integration service
  • End to End & One stop sourcing
  • Help to make website and marketing material
  • OEM hardware/software design for specific needs
  • Life cycle support
  • Regularly training and knowledge updates

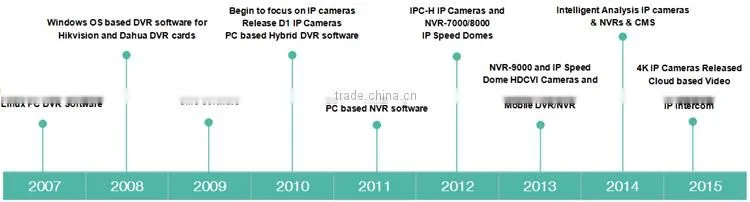

Our Milestone



Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap



Exhibitions

Professional 64CH 2U H.265 8 SATA RAID 4K NVR, Support HDD Hot Swap



Year Exhibition Name Address Year Exhibition Name Address
 2011  Public Security Exhibition  Shenzhen, China  2012  ISC WEST 2012 Exhibition  Las Vegas, USA
 2013  ISC WEST 2013 Exhibition  Las Vegas, USA  2013  EXPOSEC Exhibition  Sao Paolo, Brazil
 2014  ISC WEST 2014 Exhibition  Las Vegas, USA  2014  EXPOSEC Exhibition  Sao Paolo, Brazil
 2014  Security Essen Exhibition  Essen, Germany  2015  ISC WEST 2015 Exhibition  Las Vegas, USA
 2015  EXPOSEC Exhibition  Sao Paolo, Brazil  2016  ISC WEST 2016 Exhibition  Las Vegas, USA



FAQ



Q. May I print our company logo on camera and NVR?

A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.

Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.

Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.

Q.What is Minimum Order Quantity?

A: Sample order is welcome, but the price is depend on the quantity.



Q: How to ship the goods?

A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
