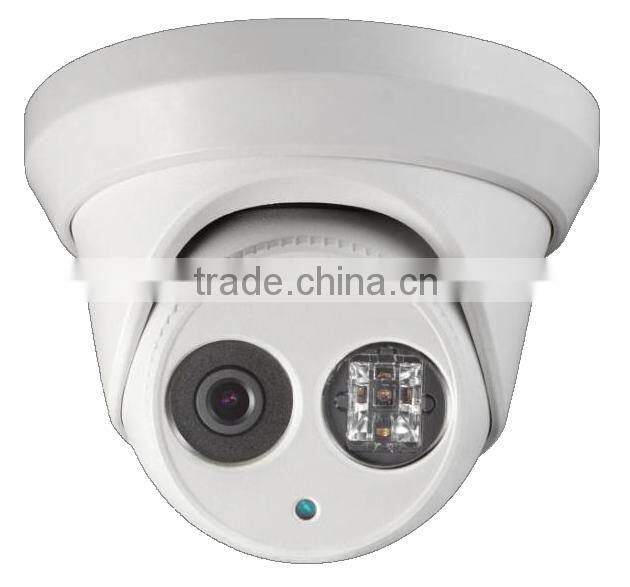

Help Center3MP HD Real-time Video 30m IR Outdoor Network Mini Dome IP CCTV Camera
Related Products
-
3MP DWDR Water-proof M12 Lens 30m IR Bullet Network CCTV CameraUS$ 83 - 93MOQ: 3 Pieces -
3MP HD Real-time Video Water-proof 30m IR DWDR Vari-focal Lens Bullet CCTV IP CameraUS$ 159 - 178MOQ: 3 Pieces
-
3 Megapixel Long IR Distance Bullet Network Security IPC CameraUS$ 101 - 113MOQ: 3 Pieces
-
3MP HD PIR Detection Build in Mic IR Cube IVS Network CCTV Camera With 64GB SD Solt and Support Wi-FiUS$ 84 - 94MOQ: 3 Pieces
-
3MP Vandal-proof Fixed Dome Network CCTV Camera With SD CardUS$ 83 - 93MOQ: 5 Pieces
> 1.3MP / 3MP high resolution
> HD real-time video
> 3D DNR & DWDR & BLC
> EXIR illuminator (up to 30m)
> IP66
> PoE
Model |
IPC-H3330-EI |
Camera | |
Image Sensor |
1/3" Progressive Scan CMOS |
Min. Illumination |
0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR |
Shutter Speed |
1/3 s to 1/100,000 s |
Lens |
4mm@ F2.0 (2.8mm, 6mm optional) 2048 × 1536: Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(6mm), 20.6°(12mm) 1920 × 1080:Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm) |
Lens Mount |
M12 |
Day &Night |
IR cut filter with auto switch |
Digital Noise Reduction |
3D DNR |
Wide Dynamic Range |
Digital WDR |
Angle Adjustment |
Horizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360° |
Backlight compensation |
Yes, zone configurable |
Compression Standard | |
Video Compression |
H.264/ MJPEG |
H.264 Type |
Main Profile |
Video Bit Rate |
32 Kbps – 12 Mbps |
Dual Stream |
Yes |
Image | |
Max. Resolution |
2048×1536 |
Frame Rate |
50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) |
Image Settings |
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
Backlight compensation |
Yes, zone optional |
ROI |
Support |
Network | |
Network Storage |
NAS (Support NFS,SMB/CIFS) |
Alarm Trigger |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protocols |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
General |
Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
Standard |
ONVIF, PSIA, CGI, ISAPI |
Interface | |
Communication Interface |
1 RJ45 10M/100M Ethernet interface |
General | |
Operating Conditions |
-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) |
Power Supply |
12 V DC ± 10% PoE (802.3af) |
Power Consumption |
Max. 5.5 W (Max. 7.5 W with IR cut filter on) |
Ingress Protection level |
IP66 |
EXIR Range |
Approx. 20 to 30 meters |

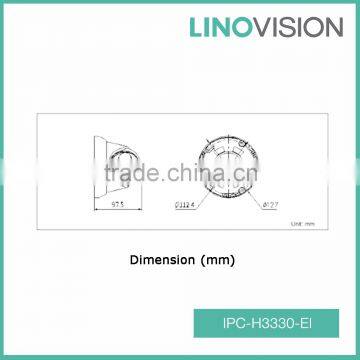

Dimensions |
Φ127×97.5 (5.0” × 3.8”) |
Weight |
570g (1.26 lbs) |
