Help Center3 Megapixel HD IR Water and Vandal-proof Build in Mic Network Mini Dome IP CCTV Camera
Related Products
-
3MP HD Real-time Video 30m IR Outdoor Network Mini Dome IP CCTV CameraUS$ 93 - 104MOQ: 5 Pieces -
3MP DWDR Water-proof M12 Lens 30m IR Bullet Network CCTV CameraUS$ 83 - 93MOQ: 3 Pieces
-
3MP HD Real-time Video Water-proof 30m IR DWDR Vari-focal Lens Bullet CCTV IP CameraUS$ 159 - 178MOQ: 3 Pieces
-
3 Megapixel Long IR Distance Bullet Network Security IPC CameraUS$ 101 - 113MOQ: 3 Pieces
-
3MP HD PIR Detection Build in Mic IR Cube IVS Network CCTV Camera With 64GB SD Solt and Support Wi-FiUS$ 84 - 94MOQ: 3 Pieces
> 3MP high resolution
> HD real-time video
> IR LEDs (up to 10m)
> DWDR & 3D DNR & BLC
> Onboard storage (up to 64GB)
> Built-in Mic, Audio out, Alarm I/O
> IP66 protection
Model |
IPC-H3530F-EIA |
Camera | |
Image Sensor |
1/3" Progressive Scan CMOS |
Minimum Illumination |
0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR |
Shutter Time |
1/3 s to 1/10,000 s |
Lens |
4mm@ F2.0 (2.8mm, 6mm optional) |
Lens Mount |
M12 |
Adjustment Range |
Pan: -30° ~ 30°, Tilt: 0 ~ 80°, Rotation: 0 ~ 360° |
Day& Night |
IR cut filter with auto switch |
Wide Dynamic Range |
Digital WDR |
Digital noise reduction |
3D DNR |
Backlight compensation |
Yes, zone configurable |
Compression Standard | |
Video Compression |
H.264/MJPEG |
H.264 code profile |
Main Profile |
Video bit rate |
32 Kbps~12Mbps |
Audio Compression |
G.711/G.722.1/G.726/MP2L2 |
Audio bit rate |
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Image | |
Max Image Resolution |
2048 × 1536 |
Frame Rate |
50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720) 60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720) |
Image Settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
ROI |
Support |
Network | |
Network Storage |
Local storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB NAS (Support NFS,SMB/CIFS) |
Alarm Trigger |
Line Crossing, Intrusion Detection,Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Security |
One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
System Compatibility |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface |
1 RJ45 10 M/100 M Ethernet interface |
Alarm |
1/1 alarm I/O |
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
General | |
Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
Power Supply |
12 V DC ± 10%; PoE (802.3af) |
Power Consumption |
Max. 5W |
Impact Protection |
IK08 Protection Level |
Weather Proof |
IP66 |
IR Range |
10 meters |

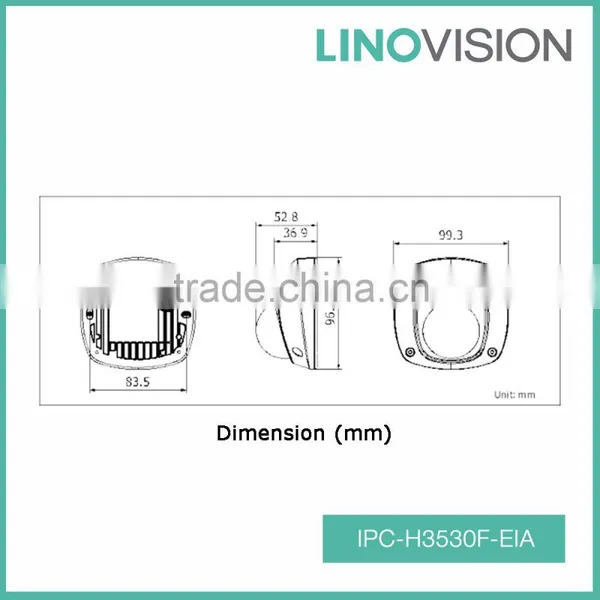

Dimensions |
99.3×96.7×52.8 mm |
Weight |
600 g (1.32 lbs) |
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider.
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
Our Milestone
| Year | Exhibition Name | Address | Year | Exhibition Name | Address |
| 2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
| 2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
| 2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
Q. May I print our company logo on camera and NVR?
A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.
Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
