Specifications
1.Up to 9 output.2x2,2x4,3x3,etc.2.Rich interface,HDMI/VGA/CVBS,etc.
3.NVR/DVR/IPC input.
4.split, merge, splice, roam.
Model
Videowall-kit 2x2: perfect for 2x2 video wall application,4x46’’professional display units and each resolution 1920x1080, flexible display functions: full-screen, splitting, overlay, roam and etc.
Features
Display Unit
- Industrial level DID LCD panel, suitable for 7*24 continuous works.
- Ultra-narrow side LCD patchwork
- High contrast and high brightness greatly enhance the video layering, and present the details of the video.
- High fidelity digital processing, brilliant and vivid video.
- Abundant interfaces, support video loop
- Fan smart detection, OSD prompt.
- Brightness smart detection, power-saving
- Widely used in MCC(monitor command center), Dispatching Platform, Safety City
Image controller
- Support up to 9 video-wall display units, support configuration of 2x2, 2x3, 2x4, 3x3
- Hot-swappable function cards, easy for maintenance
- Alarm input/output, RS232, RS485
- Local Video: Support CVBS/VGA/DVI/HDMI/HD-SDI input
- 9ch@DVI, support split, merge, splice, roam output
- Lossless switching with time delay less than 40ms
- Multiple switch control modes: network keyboard, web client &iPad
- Support 10M/100M/1000M for network video decoding & video-wall control
- Support ONVIF/PSIA/GB28181/DB33/DB41/RTP/RTSP, support mainstream manufacturers’ IPC/DVR/NVR
Specification
Model |
Videowall-kit 2x2 |
System Kit including | |
Display unit |
4 x 46" Display units, model LCD-L460UTS-E; |
Image controller |

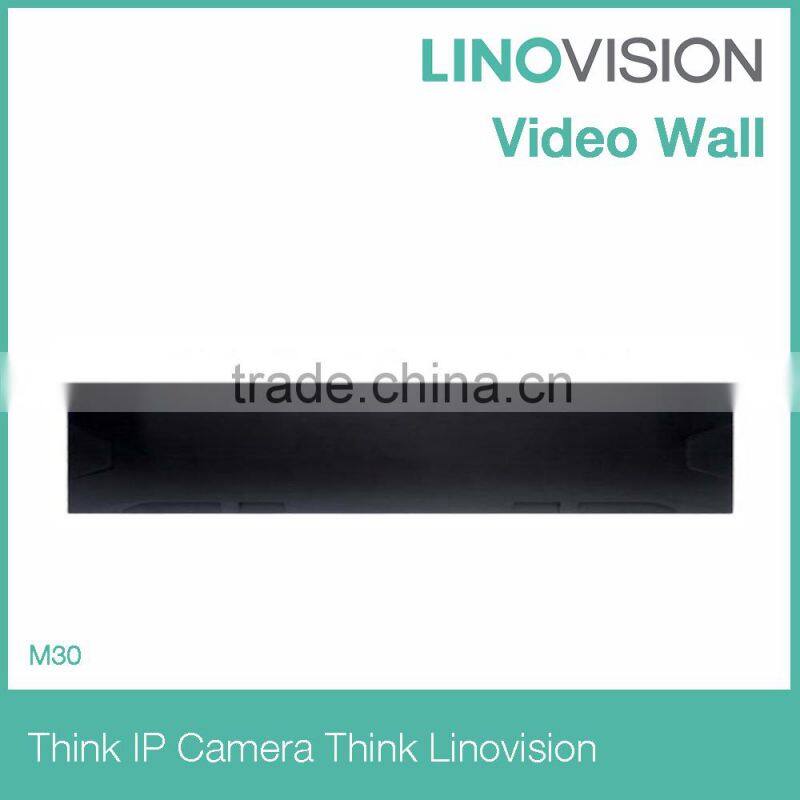

1 x Image controller, model Videowall-M30. |
Base of Display Unit |
2 x Base of Display Unit, model DS-DZ-46; |
CMS |
1 x package of related software; |
Component |
4 x Cable and Accessory; |
Transport packing |
3 x Wooden Case (Collective box for device when shipment) |
Main Spec of 46" Professional Display units | |
Each display unit's resolution |
1920×1080 |
Physical Seam |
5.7mm |
Contract |
35000:1 |
Luminance(Standard) |
450 cd/m^2 |
View Angle(Horizontal/Vertical) |
178/178 |
Response Time |
8ms |
Main Spec of Image controller | |
Main Processor |
TI high performance processor, incorporates ARM core, DSP & hardware video processing accelerating unit |
Operating System |
Embedded OS |
Network |
1×RJ45, 10M/100M/1000M |
Case |
3U 19’’Standard industry box |
Videowall Merge Control |
Support split/merge/splice/roam |
Matrix control |
Support control of external D1, VGA & DVI video matrix |
Network Video |
Support 9@1080P network video decoding at the same time |
Solution
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
Think IP camera, think Linovision.
In the last 8 years, we are proud of designing and manufacturing a complete line of IP cameras, as well as DVRs, NVRs, IP Speed Domes, PC based DVRs, management software, PoE switches, etc.
With headquarters in the city of Hangzhou (China), we are working closely with several world-leading manufacturers here, like Hikvision, Dahua, etc.
Our Core Competence includes:
- Excellent product quality as you can expect from other big brands;
- Capable of hardware/software customization according to your specific requirements;
- Faster response and speed delivery;
- We insist on win-win cooperation, most of our partners are growing together with us in the last 5 years.
