Model
Videowall-M30: Support up to 9 video-wall display units,Support CVBS/VGA/DVI/HDMI/HD-SDI input,Support IPC/DVR/NVR, etc.support 1080P/UXGA/720P/960H/D1/2CIF/CIF.
Features
Hardware Structure
- 3U 19’’ Standard industry box
- Support up to 9 video-wall display units, support configuration of 2×2, 2×3, 2×4, 3×3
- Hot-swappable function cards, easy for maintenance
Video Input
- Local Video: Support CVBS/VGA/DVI/HDMI/HD-SDI input
- Network Video: IPC/DVR/NVR, etc.
Video Output
- 9ch@DVI, support split, merge, splice, roam
Matrix Switch
- Support control of external D1, VGA & DVI video matrix
- Lossless switching with time delay less than 40ms
- Multiple switch control modes: network keyboard, web client &iPad
Network & Control
- Support 10M/100M/1000M for network video decoding & video-wall control
- Support control for matrix, video-wall, dome camera with RS485 & RS232, support mainstream
- Manufacturers’ protocol
- Support ONVIF/PSIA/GB28181/DB33/DB41/RTP/RTSP, support mainstream manufacturers’
- IPC/DVR/NVR such as Honeywell/Tyco/Pelco/Sony/Panasonic/Axis/Dahua/Hikvision/Uniview
- Support user authority management
Specification
Model |
Videowall-M30 |
|
System | ||
Main Processor |
TI high performance processor, incorporates ARM core, DSP & hardware video processing accelerating unit |
|
Operating System |
Embedded OS |
|
Bus |
High-performance serial bus |
|
Slot |
2 function card slots |
|
System Configuration | ||
Mainframe |
2 Power supply, main control card, high-performance serial bus backplane, smart temperature controlled fan |
|
Video Input Card |
2 max |
|
Case | ||
Mainframe |
3U standard 19”, 2 slots |
|
Main Control Interface | ||
Network |
1×RJ45, 10M/100M/1000M |
|
Serial |
3×RS232, for matrix, LCD display, mid-control 2×RS485, for PTZ |
|
USB |
1×USB2.0 |
|
Video Input (Standard Configuration) | ||
Video |
Interface |
16@BNC (1.0VP-P, Impedance75Ω) |
Format |
PAL/NTSC self-adaptable |
|
VGA |
Interface |
DVI/VGA |
Format |
Max input resolution : 1920×1080@60Hz |
|
Network Video |
Interface |
RJ45 |
Format |
1080P/UXGA/720P/960H/D1/2CIF/CIF Support 9@1080P network video decoding at the same time |
|
Video-wall Merge Control | ||
Splicing |
Function |
Splice, Zoom, Overlay, Roam, etc. |
Video Source |
HD & SD, Digital & Analog in any combination |
|
Output Interface |
9-ch DVI-I |
|
Control Mode |
PC client-end, Network keyboard, iPad |
|
Working Environment & other Physical Parameter | ||
Power Supply |
AC Power :100~120V AC, 200~240V AC |
|
Power Consumption |
≤80W |
|
Temperature |
0℃~+50℃ |
|
Working Humidity |
10%-90% 86kpa-106kpa |
|
Dimension(mm) |
3U standard 19”, 482.6(width)×496(depth)×133(height) |
|
Weight |
≤10Kg (full configuration) |
|

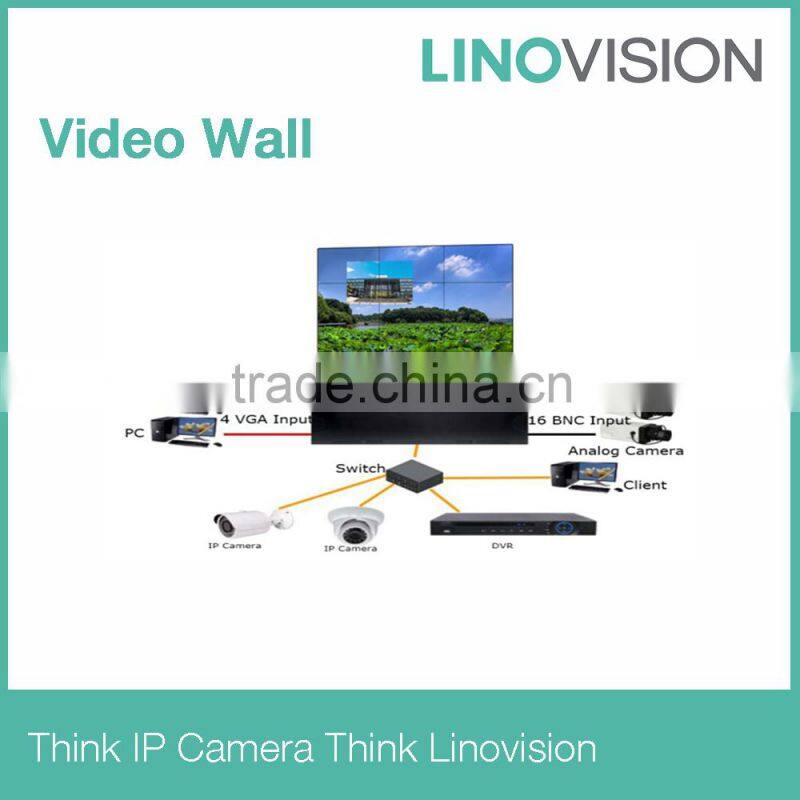

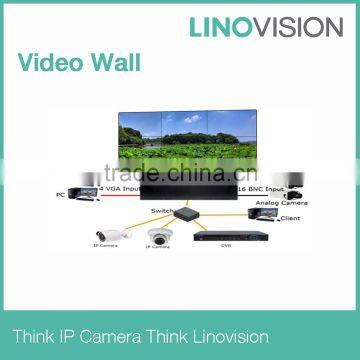

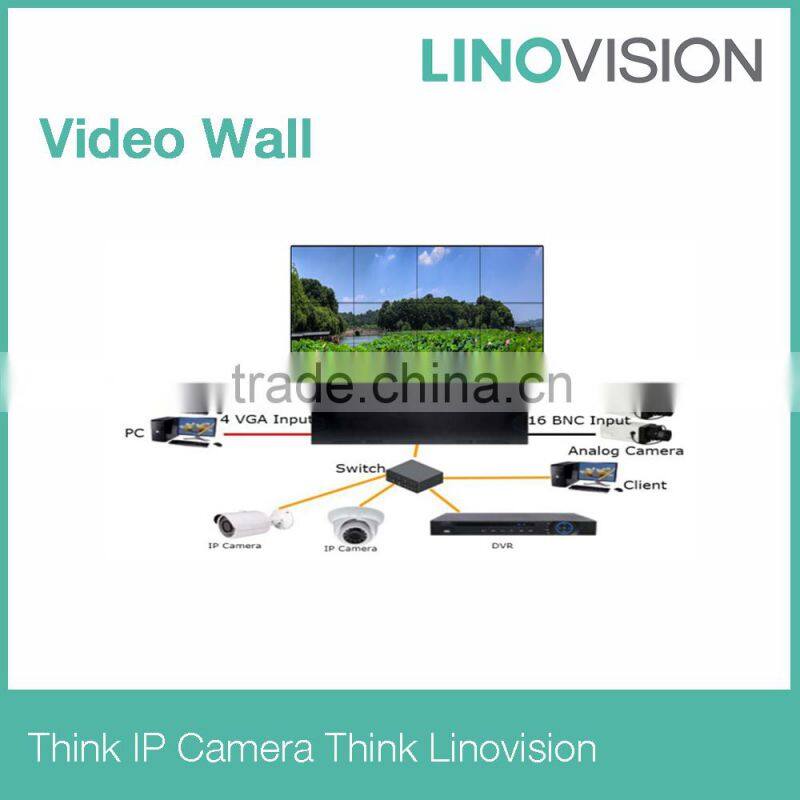

Solution
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
