6 core Professional fiber optic cable manufacturer optical fiber cable for communication network( indoor and outdoor)

FOB Price

USD $0.27 - $9.31 / Kilometer

10 Kilometers(Min.Order)

Supply Ability 100 Kilometer / Kilometers per Month
Port Shenzhen
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

HYG

Model Number:

hyg-ca-0316

Packaging Details

2~4km / wooden drums

Product Description

Specifications

6 core fiber cable:
1. Low dispersion
2.Reasonable design
3.Manufactuer price
4.Fast delivery time

6 core fiber cable

1.Low dispersion
2.Reasonable design
3.Manufactuer competitive price
4.Fast delivery time

6 core fiber cable feature:

1. Small diameter, light weight, good practical applicability.
2. Simple and reasonable structure, has good resist compression, tensile and ageing resistance

3. Groove design, easy to strip jacket, simplify install and maintain

4. Use ITU G.657 standard core, and has the best cost performance of the same type products

6 core fiber cable parameters:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min. Bending radius(mm)			Tension (N)			Crash loading (N/100mm)
			Static	Dynamic	Short term		Long term	Short term		Long term
2-12	8.9	90	10 times O. D.	20 times O. D.	1500		600	1000		300
14-24	10.2	110

optical characteristics


		G. 652	G. 655	50/125um	62.5/125um
attenuation(+20º C)	@850nm			≤ 3.0db/km	≤ 3.0db/km
	@1300nm			≤ 1.0db/km	≤ 1.0db/km
	@1310nm	≤ 0.36db/km	≤ 0.4db/km
	@1550nm	≤ 0.22db/km	≤ 0.23db/km
	@850nm			≤ 600mhz. km	≤ 200mhz. km
bandwidth(class A)	@1300nm			≥ 1200mhz. km	≥ 600mhz. km
numerical Aperture				0.200± 0.015na	0.275± 0.015na
cable cut-off waveleng th xcc				≤ 1620nm	≤ 1450nm
storage/operating temperature: -40º C to +70º C

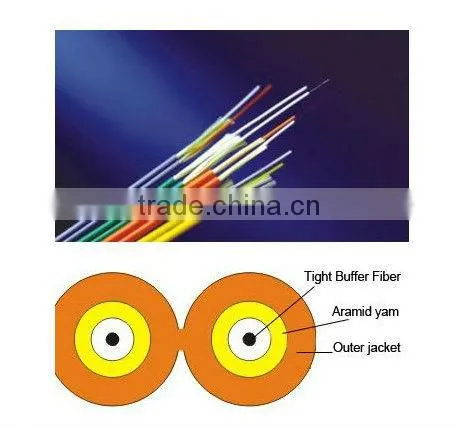

6 core fiber cable pictures:

Indoor cable

6 core fiber cable application:

ODF Transmission System
Connecting optical communications equipment
Telecom Network
LAN cable
High-speed, high-capacity SDH Optical Fiber Transmission
