12 core single mode fiber optics cable:
1.Low dispersion
2.Reasonable design
3.Manufactuer competitive price
4.Fast delivery time
12 core single mode fiber optic cable feature:
3. Groove design, easy to strip jacket, simplify install and maintain
4. Use ITU G.657 standard core, and has the best cost performance of the same type products
Technical data: | ||||||||||||
Fiber Num. |
Outer diameter (mm) |
Weight (kg/km) |
Min. Bending radius(mm) |
Tension (N) |
Crash loading (N/100mm) |
|||||||
Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
|||||||
2-12 |
8.9 |
90 |
10 times O. D. |
20 times O. D. |
1500 |
600 |
1000 |
300 |
||||
14-24 |
10.2 |
110 |
||||||||||
optical characteristics | ||||||
|
|
G. 652 |
G. 655 |
50/125um |
62.5/125um |
|
attenuation(+20º C) |
@850nm |
|
|
≤ 3.0db/km |
≤ 3.0db/km |
|
@1300nm |
|
|
≤ 1.0db/km |
≤ 1.0db/km |
||
@1310nm |
≤ 0.36db/km |
≤ 0.4db/km |
|
|
||
@1550nm |
≤ 0.22db/km |
≤ 0.23db/km |
|
|
||
@850nm |
|
|
≤ 600mhz. km |
≤ 200mhz. km |
||
bandwidth(class A) |
@1300nm |
|
|
≥ 1200mhz. km |
≥ 600mhz. km |
|
numerical Aperture |
|
|
|
0.200± 0.015na |
0.275± 0.015na |
|
cable cut-off waveleng th xcc |
|
|
|
≤ 1620nm |
≤ 1450nm |
|
storage/operating temperature: -40º C to +70º C | ||||||

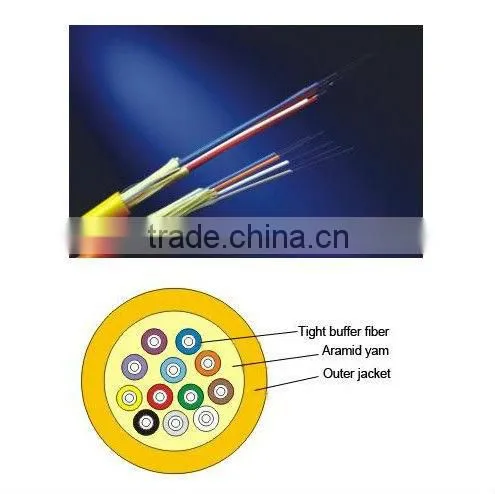

12 core single mode fiber optic cable pictures
