2 core cable:
1.Used in indoor and outdoor
2.Fast leading time.
3.Samples are supported
4.Professional factory
Features:
2 core cable
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics meet the requirements of relevant standards;
Soft,flexible,easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.
2 core cable parameters:
| Fiber Count | Cable Dimension(mm) | Cable Weight(kg/km) | Tensile (N) | Crush(N/100mm) | Min.Bend Radius | Range of Temperature(°C) | |||
| Long Term | Short Term | Long term | Short term | Dynamic | Static | ||||
| 1~2 | 3.1 × 2.0 | 8.2 | 60/100 | 100/200 | 500/1000 | 1000/2200 | 20H | 10H | "-20 to +60 |
NOTE:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable core use the colored coating fiber of 250um;
3. H is height of the flat cable;
4. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP AND steel are used;
5. The minimum bend radius(static) is 5H when G657 fiber is used.
Options
Fiber type: G.652, G.655 or G.657 single-mode fiber, A la or A 1b multi-mode fiber, or other types of fiber;
Jacket Matrial: Environmental flame-retardant polyvinyl chloride( PVC), environmental low smoke zero halogen flame retardant
polyolefin( LSZH),or other contracted meterial;
Jacket Color: (Including color of fiber) meets the requirements of relevant stangdards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

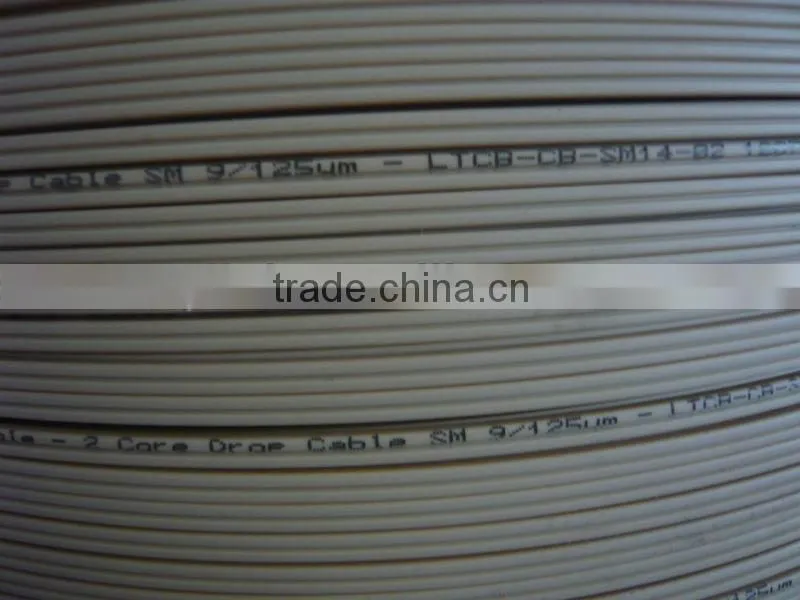

2 core cable pictures:
