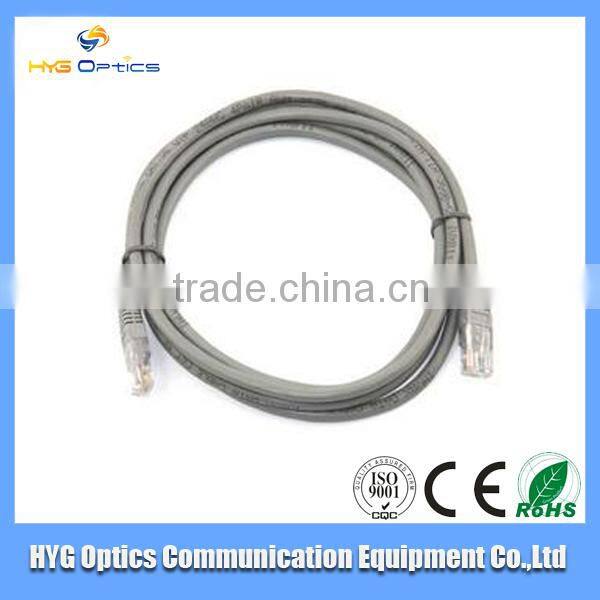

free sample grey cat5e network cable

FOB Price

USD $0.5 - $5.6 / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHENZHEN
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

HYG

Model Number:

HYG-PA-cat5e-3m

Packaging Details

each in polybag, standard carton

Product Description

Specifications

cat5e network cable
UTP/FTP/SFTP 23AWG 7X0.2mm
Pure Copper, CU, CCA, OFC option
TIA/EIA-568-B
PVC/LSZH Jacket

free sample grey cat5e network cable

Specification:

Industrial Standards:YD/T1019-2001(America) ANSI/TIA/EIA-568-B,(Internation) ISO/IEC 11801/71156.

Conductor: 7 copper wires Ø0.20 mm (0.008"), 23 AWG

Insulation: High-density Polythene(HDPE)

Jacket:Polyvinylchloride(PVC) ,Polyethylene(PE) or Low Smoke Zero Halogen(LSZH)

Enhance Connector: Two-Row RJ45 8P8C Gold Plating 3 u"

Color code ref. To TIA 568ATIA568BTIA568A-T568B110-RJ45110-110

Ratted Temperature: 75.

Network cable Performance Specification Chart
Parameter	Cat5 Patch Cables and Class D with additional requirements TSB95 and FDAM 2	Cat5e Patch Cables ('568-A-5)	Cat6 Patch Cables Class E (Performance at 250 MHz shown in parentheses)	Proposed Cat7 Patch Cables Class F (Performance at 600 MHz shown in parentheses)
Specified frequency range	1-100 MHz	1-100 MHz	1-250 MHz	1-600 MHz
Attenuation	24 dB	24 dB	21.7 dB (36 dB)	20.8 dB (54.1 dB)
NEXT	27.1 dB	30.1 dB	39.9 dB (33.1 dB)	62.1 dB (51 dB)
Power-sum NEXT	N/A*	27.1 dB	37.1 dB (30.2 dB)	59.1 dB (48 dB)
ACR	3.1 dB	6.1 dB	18.2 dB (-2.9 dB)	41.3 dB (-3.1 dB)**
Power-sum ACR	N/A	3.1 dB	15.4 dB (-5.8 dB)	38.3 dB (-6.1 dB)**
ELFEXT	17 dB (new requirement)	17.4 dB	23.2 dB (15.3 dB)	ffs***
Power-sum ELFEXT	14.4 dB (new requirement)	14.4 dB	20.2 dB (12.3 dB)	ffs***
Return loss	8 dB* (new requirement)	10 dB	12 dB (8 dB)	14.1 dB (8.7 dB)
Propagation delay	548 nsec	548 nsec	548 nsec (546 nsec)	504 nsec (501 nsec)
Delay skew	50 nsec	50 nsec	50 nsec	20 nsec

Pictures:

Package:

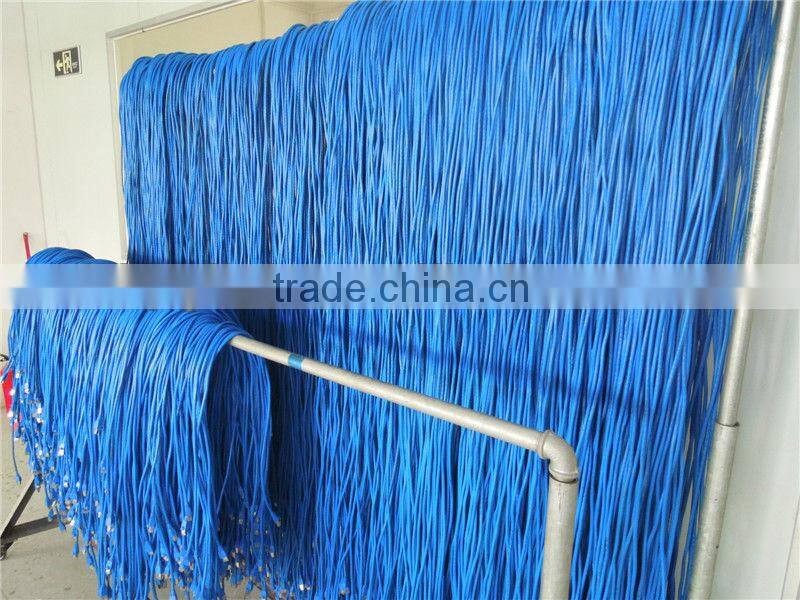

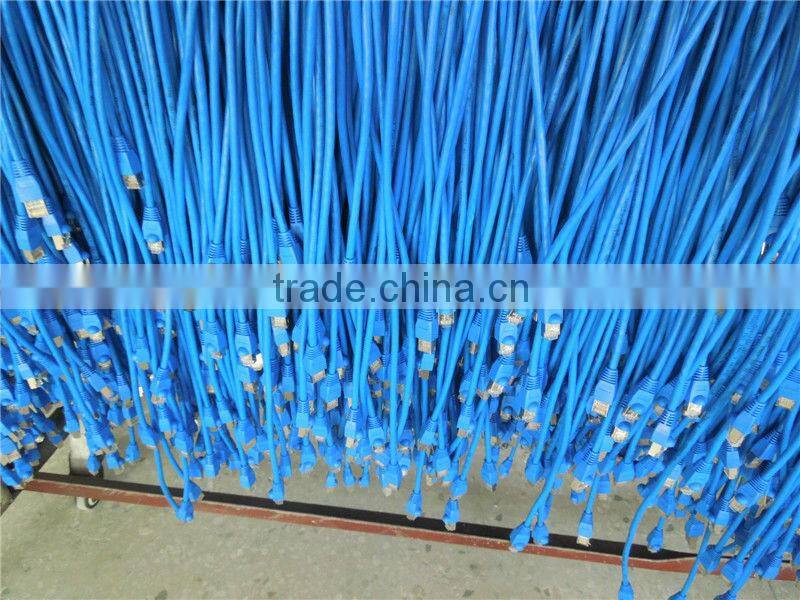

Workshop:
