Specifications
10km 2.5mm visual fault locator1.Detect range up to 15Km
2.2-year of warranty
3.Compact ,and easy to use
4.2 pcs AA
10km 2.5mm visual fault locator
Features
-Small size, easy to field test
-Easy identification of fiber break, bend, you can protect the fiber layer
-To-end fiber identification
-Complete mechanical connecting point detection and optimization
Applications
-Telecommunications Engineering and Maintenance
-CATV engineering and maintenance
-Cabling System
-Other fiber-optic project
Type | Pen-type fiber Visual Fault Locator |
Central Wavelength | 650nm±10nm (635nm can be required on request) |
Emitter Type | FP-LD |
Output Power | Optional choice for 1mw, 10mw on actual needs |
Optical Connector | 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
Operating Model | Both CW and Pulse available |
Pulse Frequency | 2~3Hz |
Power Supply | 2 AA alkaline batteries |
Battery Operating Time | 650nm@1mw ≥65hour 650nm@10mw≥15hour Test with Panasonic LR6 AA ALKALINE battery |
Operating Temperature | -10~+45 (°C) |
Storage Temperature | -40~+70 (°C) |
Dimension (mm) | 15X180 |
Weight | 120g(Without battery) |
Remark: Colors can be customized on request when meets certain qty!

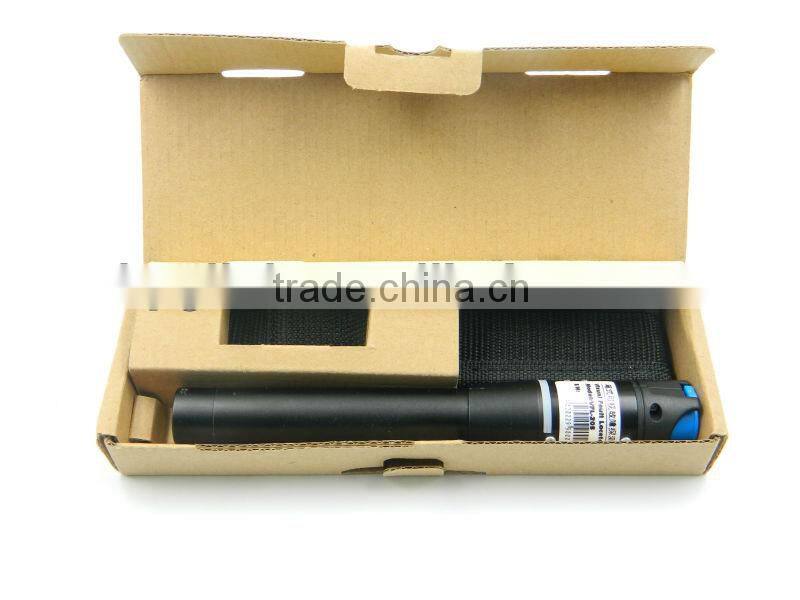

Standard Packages
MODEL | INCLUDES |
JW3105 P | Main Unit (Black color), 2pcs Alkaline battery, User Manual, Cotton swabs and Soft Carrying case. |
