Optical Access Networks Project Wall Mount Fiber Optic Splice Box With Competitive Factory Price

Fiber optic splice box :

1.Professional manufacturer.
2.Promptly delivery time.
3.1 year warranty.

This fiber optic splice box is used to connector the optical fiber and to protect the fiber splice. The box is rated to IP54 standard, it is used mainly in FTTH project.

OTB-E205 & OTB-E223 is ABS plastic terminal box, for indoor wall mounted or pole mounted using. E205 and E223 are same box, only splice tray is different. E205 can be 60~120 cores, each tray 12~24 cores, but adapter cannot be loaded inside. E223 can load 24pcs simplex adapters, but only 30~60 cores, each tray 6~12 cores.

Fiber optic splice box Features & Benefits:

This terminal box is used for indoor wall mount,the inside and outside of box is static powder spraying,nice and compact appearance.
 It can load splitter,max for 16way,if load with pigtail,can be 24fiber at most.
The adaper is for angel fixing,smooth swirl of pigtail,large radius of curvature,It could effectivly reduce the loss of fiber transmission.
SC,FC,ST and another adapter panel can be interchangable.
The splice tray can be cascade rotary type,it is convenient for increase,decrease,and operation

Fiber optic splice box specifications

Dimension: 265x300x78mm
Cable Port: Max 6
Number of Splice trays: Max. 5
Splice capacity of each tray: 6F
Number of the adapters: Max 24

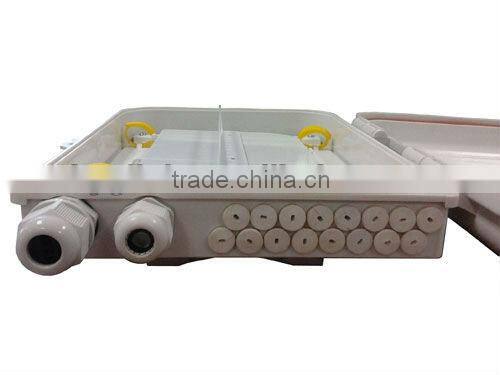

Fiber optic splice box picture:

Fiber optic splice box application:

1. Security System
2. medical TV
3. television and telephone conference
4. building control system
5. Intelligent Traffic Monitoring System (ITS)
6.distance multimedia teaching / campus monitor
7.long-distance radio and television transmission system
