Help Center64 Core PVC Fiber Optic Splitter for Protect Solution
Related Products
-
1 8 Fiber Optic Splitter for Protect SolutionUS$ 10 - 50MOQ: 10 Pieces -
Fiber Optic PLC Splitter/ftth Fiber Splitter/cable tv Splitter/fc/upc Connector Plc Splitter Fiber Optic SplitterUS$ 3.51 - 7.13MOQ: 50 Pieces
-
PLC Splitter, PLC CouplerUS$ 3.51 - 7.13MOQ: 50 Pieces
-
High Quality Fast Leadtime 1*8 Outdoor FBT Optical SplittersUS$ 3.51 - 7.13MOQ: 100 Pieces
-
Shenzhen Factory High Quality 1*32 PLC Optical Splitters / CouplersUS$ 5.12 - 12.35MOQ: 100 Pieces
Specifications
64 core PVC fiber optic splitter1.High channel counts
2.Compact design
3.Low insertion
4.Wide wavelength
high quality 64 core PLC PVC Fiber optic Splitter
Special Features :
· All-optical Structure
· Hi-reliability
· Low PDL, Low Insertion Loss
· Hi-directivity, High Return Loss
· Good stability and reliability
· Excellent polarization insensitivity
· Flexible packaging
· Operating wavelength: 1,310nm or 1,550nm, and other wavelength is available on requests
· Coupling ratio: 10/90, 20/80, 30/70, 40/60, 50/50, and customized ratios are available
· FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC fiber optic connectors are available
Applications :
· Optical LAN & WAN & CATV
· FTTH project & FTTX Deployments
· Broadband High-bit rate data transmission
· Active device terminations
· Testing instruments
· Optical fiber communication networks
· PON Networks
· Optical Signal Distribution
| Specifications | |||||
| 1*N | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Operating wave length (nm) | 1260-1650 | 1260-1650 | 1260-1650 | 1260-1650 | 1260-1650 |
| Insertion loss(dB) Max(S/P): | 7.4/7.2 | 10.7/10.5 | 13.7/13.5 | 16.9/16.5 | 21 |
| Loss homogeneity(dB) Max | 0.8 | 1 | 1.4 | 1.9 | 2.7 |
| Return loss(dB) Min(S/P) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Operating temperature: -40 ~ +85 | |||||
| Storage temperature: -40 ~ +85 | |||||
| Splitting ratio: average | |||||
| Type: 1X32 | |||||
| Fiber cable outer size: 0.9, 2.0, 3.0mm(D) are available | |||||
| Fiber lead length: 1.5m or customized | |||||
| Transmission mode: SM G.652 G.655 or MM 50/125,62.5/125 | |||||
| In/Out put way: FC, SC, ST are optional | |||||
| In/Out put connecter: PC, UPC, APC are optional |
Quality Warranty:
1,ISO90012,TLC Prove
3,Rohs report
4,GR-326-CORE Experiment room
5,Certificate of Metrological Authorization of China
6,NTT Compatible Test Certificate

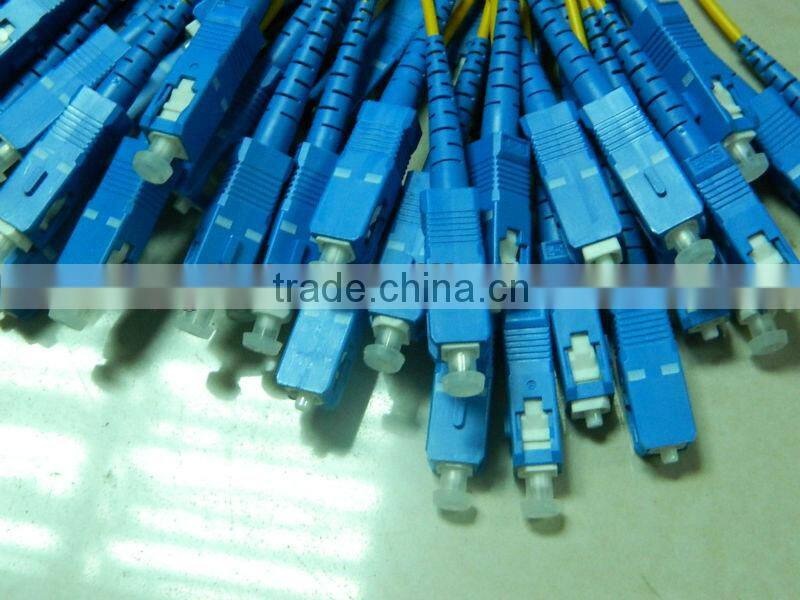

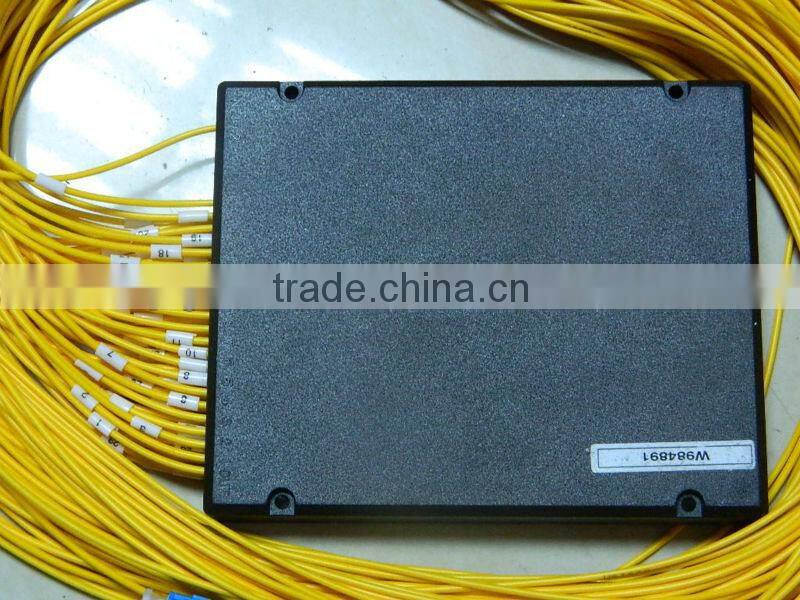

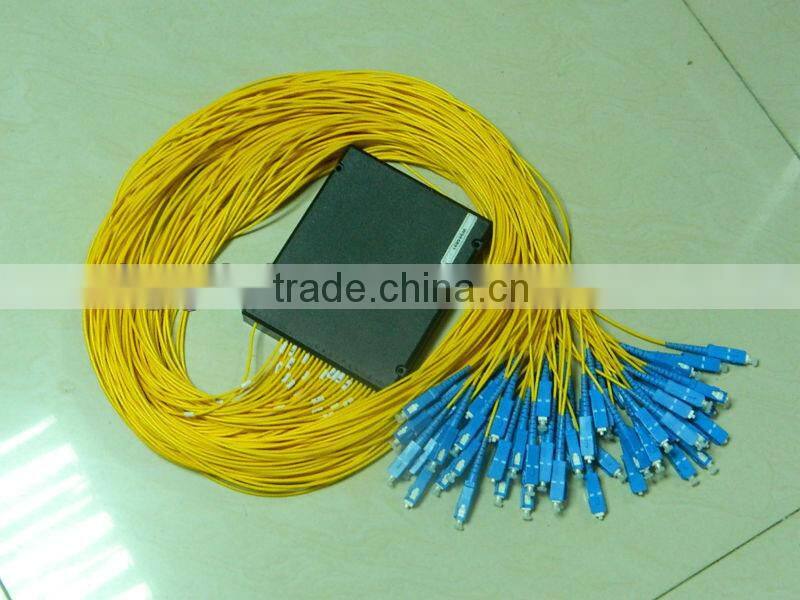

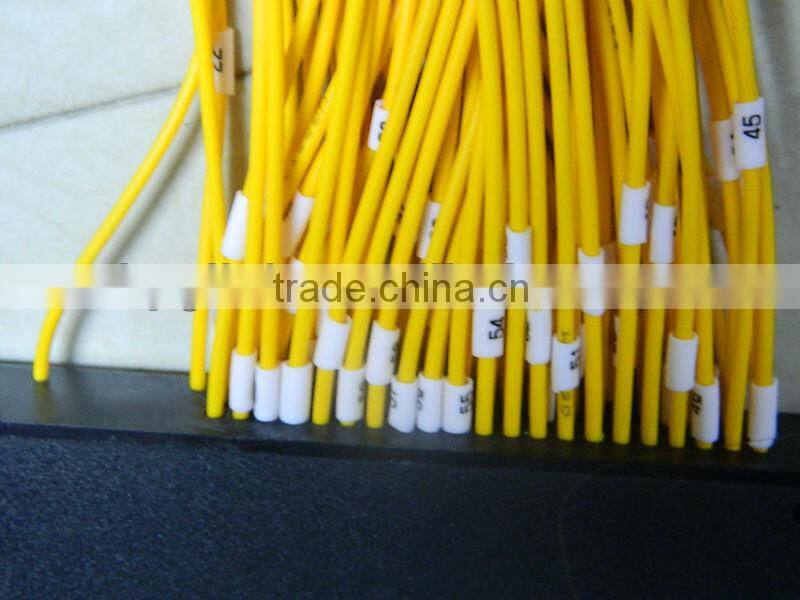

some detail picture

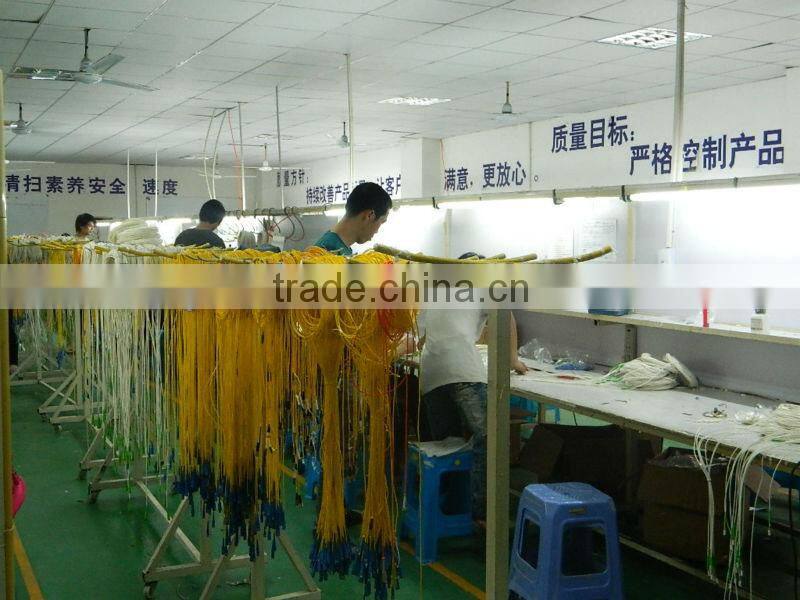

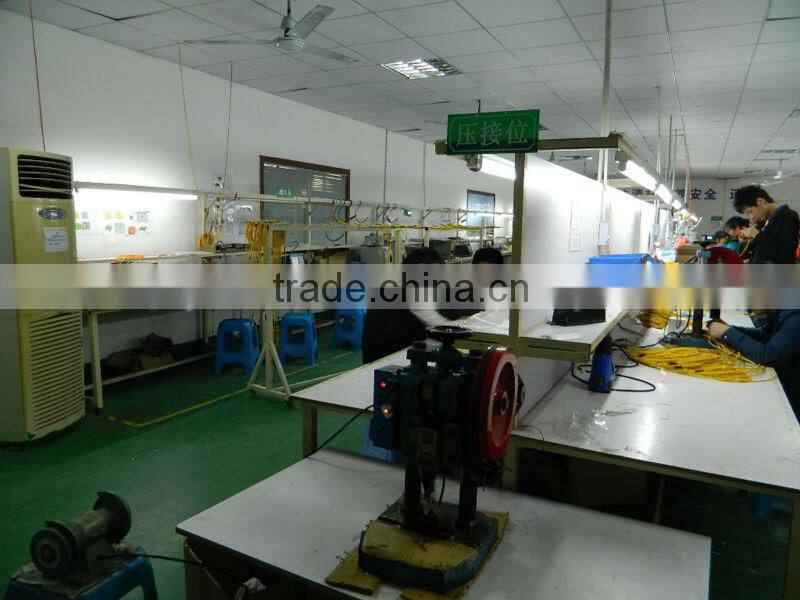

some pictures about our factory
