PLC Splitter, PLC Coupler

PLC Splitter, PLC Coupler photo-1
US$ 3.51 - 7.13 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYG
Model Number:
hyg-PL-0021
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name HYG
Model Number hyg-PL-0021

Specifications

PLC splitter:
1.Multimode plc splitter
2.Low insertion loss and low PDL
3.High reliability and channel

PLC Splitter, PLC Coupler





Features:

  • Various coupling ratio
  • Single mode and multi mode available
  • Low insertion loss, low PDL
  • Environmental stable
  • Industry standard and custom housing available
  • Variety of connectors available
  • SC APC 1x2, 1x4, 1x8 and 1 x n  PLC Splitter customized couplers configuration available

Product Information:



PLC spliiter technical specifications

Wavelength(nm)

1260-1650

Parameters

1×4

1×8

1×16

1×32

1×64

2×4

2×8

2×16

2×32

Insertion Loss(with connector)(dB)

≤7.4

≤10.7

≤13.7

≤16.9

≤21

≤7.8

≤11.5

≤14.5

≤17.7

Insertion Loss(W/O connector)(dB)

≤7.7

≤11.2

≤14.2

≤17.5

≤21.5

≤8.3

≤12

≤15

≤18.2

Uniformity (dB)

≤0.8

≤1.0

≤1.4

≤1.9

≤2.7

≤1.7

≤1.7

≤2.2

≤2.7

PDL(dB)

≤0.3

≤0.3

≤0.3

≤0.3

≤0.4

≤0.2

≤0.4

≤0.4

≤0.4

Size(bare bype)

(H×W×L)(mm)

4×4×50

4×7×50

4×12×60

4×4×50

4×7×50

Return Loss(dB)

>50

Directivity(dB)

>55

Temperature Range(°C)

-40~+75

storage Temperature(°C)

-40~+85







Applications:

  • LAN, WAN and Metro Networks
  • FTTH project & FTTX Deployments
  • CATV System
  • GPON, EPON
  • Fiber Optic Test Equipment
  • Data-base Transmit Broadband Net

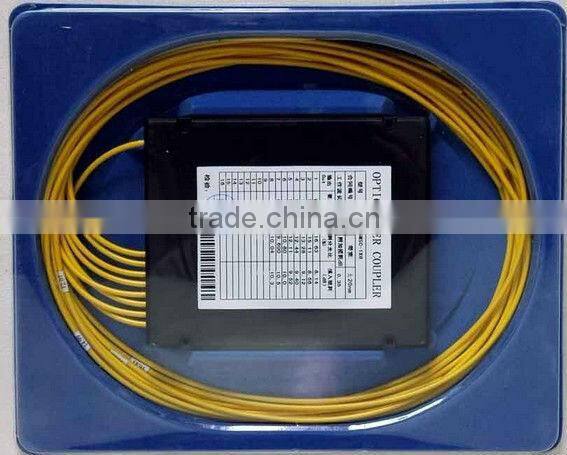

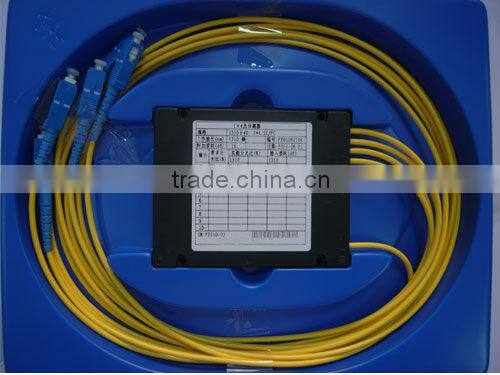

Pictures:



PLC Splitter, PLC CouplerPLC Splitter, PLC CouplerPLC Splitter, PLC Coupler



  PLC Splitter, PLC Coupler







Factory Photo:



PLC Splitter, PLC Coupler
