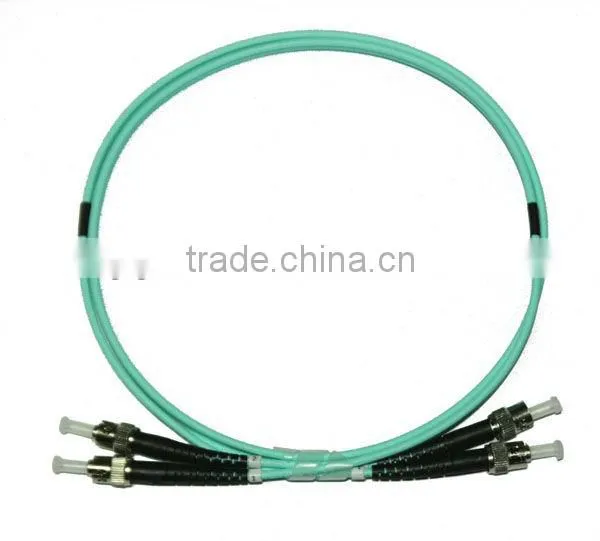

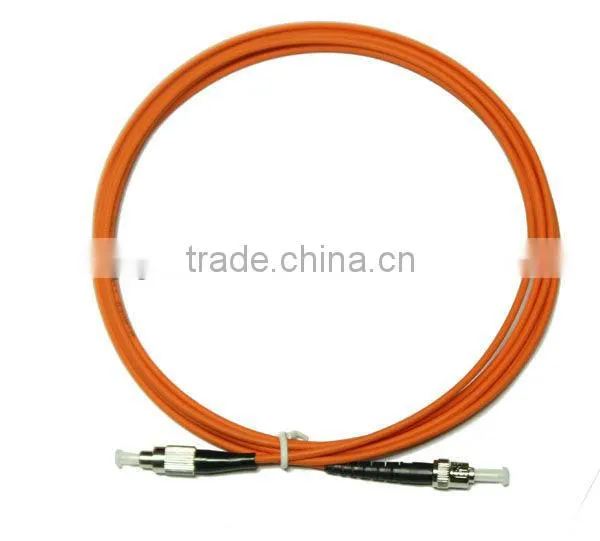

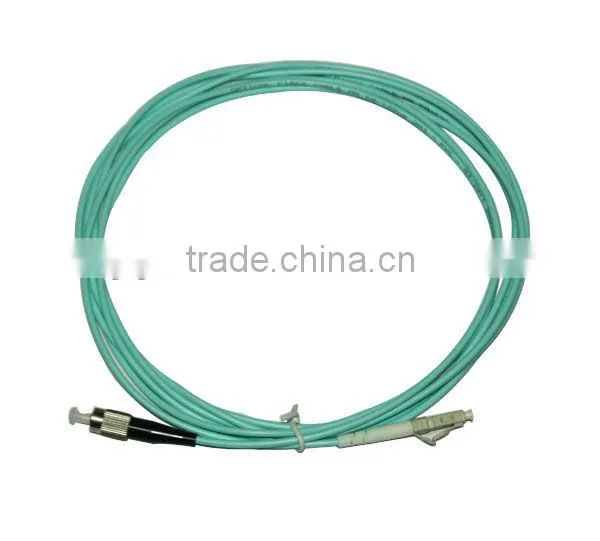

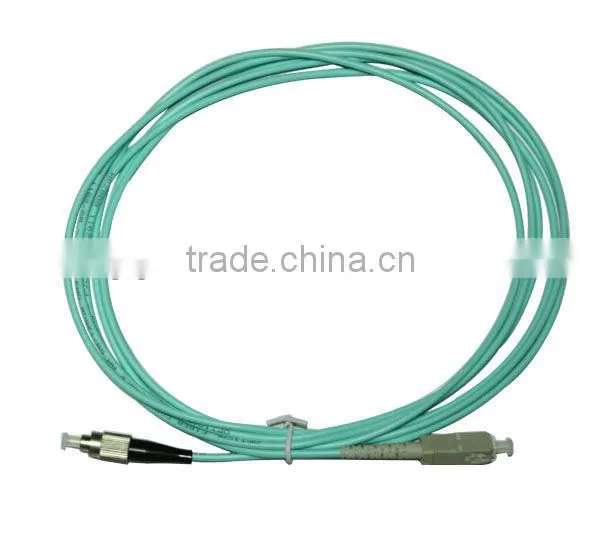

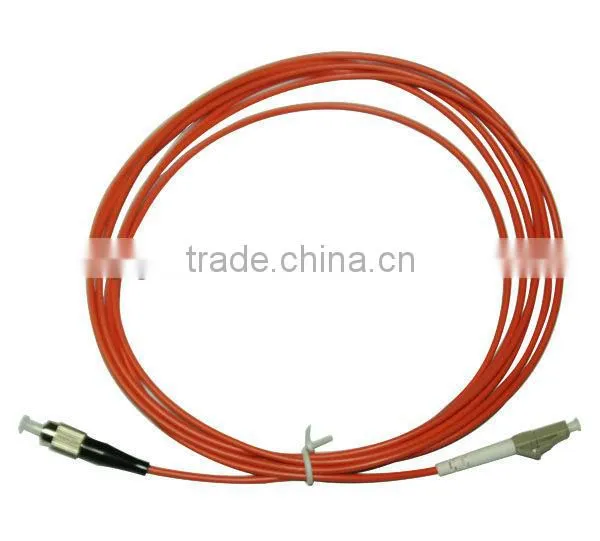

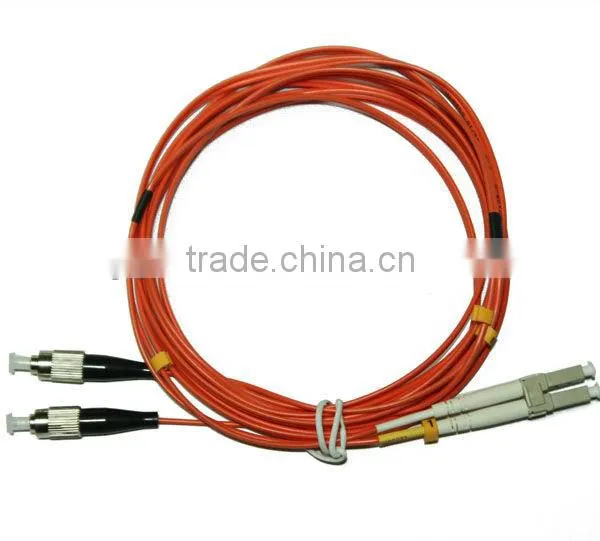

free sample fiber optic patch cord pu patches nylon tyre cord fabric for network solution and project
Applied range
1 Optical fiber communication system
2 Optical access network
3 Optic-fiber Date Communication
4 Optical-fiber CATV
5 A local area network (LAN)
6 Test Equipment
Order informations
HYG-ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M
1 2 1 2 3 4 5 6
1 Connector types: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, APC
3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Quantity: “2C” means duplex,C means simple
5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6 Length:1, 2, 3 meter or customized length
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
Technical parameters
1 The min bending radius: 3.8 cm
2 Operating temperature range: - 40 ~ 85 °C
3 connector materials: ceramic plug core
4 Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm
5 Repeat plug: < 0.2 dB, each 500 times plug
6 Min reflection loss: 20 db
7 Max return loss:-50dB
Environmental Reliability Test
The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others/ st/sc/fc/lc fiber adapter / hdmi to dvi patch cord
Other detail about FO pull patch cord:
