Specifications
HYG single mode SX fiber optical cable100% professional manufacturer
ISO9001.UL,ROSH,CE
12 years' factory
ce/rohs

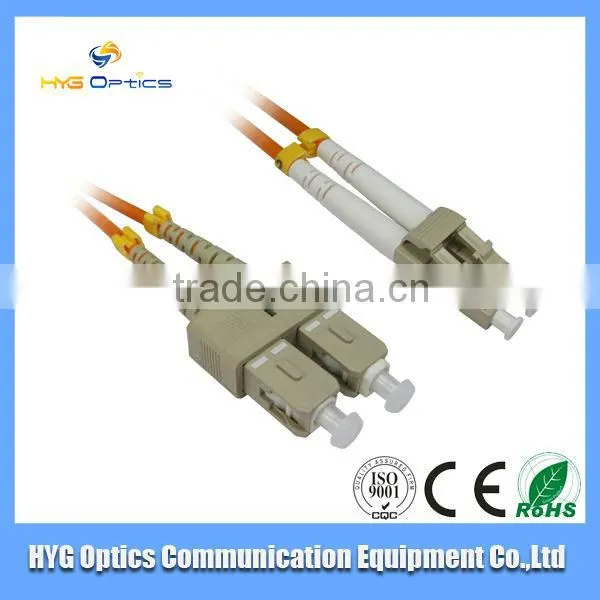

HYG single mode SX fiber optical cable
1.FC/SC/LC/ST/MTRJ/SMA/E2000/D4/MPO/MTP
2.Singlemode & Multimode(SM/MM)
3.PC & APC
4.Length(Optional)
Features
fiber jumper is one of the most commom components connecting from the equipment to the fiber optic lind .It is mormally used between the optical line teminal with the optical cable terminal box with thick protection layer.
1.Using high precision ceramic ferrule
2.rubbing exactitude and testing completelly
3. low insertion loss and high return loss
4. high stability and repeat
5.be according with the telcordia GR-326-CORE standard
6.ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule
Product application
1. Local Area Network
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
6.CATV
7.Fiber optics data transmission(FODT)
Ordering information
Face grinding:PC/UPC/APC
Fiber diameter :0.9mm/2.0mm/3.0mm
Length/colour/fibertype:according to customer's requiment
Parameters
| Connector type | FC,SC, ST, LC,MU |
| Fiber type | Sinle-mode |
| Operation wave length | 1310nm or 1550nm |
| Insertion loss | ≤0.25db |
| Return wave loss | ≥50db |
| Mechanical testing |
Vibration:10-55hz,0.75mm single amplitude,30min each direction
Drop test Drop highth:1m, fiber longth:1m, drop time:5 times
Durability 1000 times
Anti-pull power :90N |
| Storage temperature | -40-+80°c |
| Operation temperature | -40-+80°c |
Other pictures about fiber optic patch cord:
