Metal Ferrule Fiber Optic Patch Cord for Network Solution

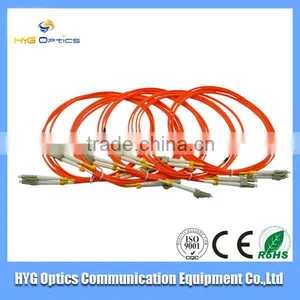

Metal Ferrule Fiber Optic Patch Cord for Network Solution thumbnail-1
Metal Ferrule Fiber Optic Patch Cord for Network Solution photo-1
US$ 0.98 - 2.32 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYG
Model Number:
HYG-ST-FC-MMDX-3.0-M
Contact Supplier Request Quote Chat Now
Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HYG
Model Number HYG-ST-FC-MMDX-3.0-M

Specifications

metal ferrule fiber optic patch cord
1.material:LSZH/PVC/PU
2.for FTTH/FTTP/FTTX
3.LC/FC/ST/SC connectors
4.CE ,ROHS and ISO

metal ferrule fiber optic patch cord for Net work solutions



Applied range

1 Optical fiber communication system

2 Optical access network

3 Optic-fiber Date Communication

4 Optical-fiber CATV

5 A local area network (LAN)

6 Test Equipment



Order informations

HYG-ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M

          1     2      1     2     3      4     5        6

1 Connector types:  FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2 Ferrule End-face: PC, APC

3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4 Cable Quantity: “2C” means duplex,C means simple

5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm

6 Length:1, 2, 3 meter or customized length

7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum



Technical parameters

1 The min bending radius: 3.8 cm

2 Operating temperature range: - 40 ~ 85 °C

3 connector materials: ceramic plug core

4 Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm

5 Repeat plug: < 0.2 dB, each 500 times plug

6 Min reflection loss: 20 db

7 Max return loss:-50dB



ITEM

TEST conditions

Single mode

Multi mode

Optical properties

Insertion loss

UPC

1.31um,LED

<=0.3dB

<= 0.3dB

APC

1.31um,LED

<= 0.3dB

<= 0.3dB

Return loss

UPC

1.31um,LED

>=50dB

>=35dB

APC

1.31um,LED

>=60dB



Mechanical properties

Impact test

HIGH:1.8   8 TIMES

<0.1dB

<0.1dB

Vibration experiment

5-50HZ,1mm Full amplitude

<0.1dB

<0.1dB

Plug life

More than 1000 times

<0.1dB

<0.1dB

tensile strength

>100N,

<0.1dB

<0.1dB

Environment characteristics

Temperature Cycling Test

-25°C~+70°C,5 circle

<0.2dB

<0.2dB

high-temperature test

+80°C,100 hours

<0.2dB

<0.2dB

Low-temperature test

-40°C,100 hours

<0.2dB

<0.2dB

Damp and hot test

+25°C~+65°C,Relative humidity 93%,100 hours

<0.2dB

<0.2dB



Environmental Reliability Test



The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others









Company information

About us

The HYG Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc.

HYG Quality Assurance

Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system.
Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer.

The location

The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc.


Our mission

QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
metal ferrule fiber optic patch cord for network solution
