Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Indoor PVC Fiber Optic Patch Cable for FTTH Solution

Indoor PVC Fiber Optic Patch Cable for FTTH Solution

Indoor PVC Fiber Optic Patch Cable for FTTH Solution thumbnail-3

Indoor PVC Fiber Optic Patch Cable for FTTH Solution thumbnail-4

Indoor PVC Fiber Optic Patch Cable for FTTH Solution thumbnail-5

Indoor PVC Fiber Optic Patch Cable for FTTH Solution thumbnail-6

Indoor PVC Fiber Optic Patch Cable for FTTH Solution photo-1

Indoor PVC Fiber Optic Patch Cable for FTTH Solution photo-2

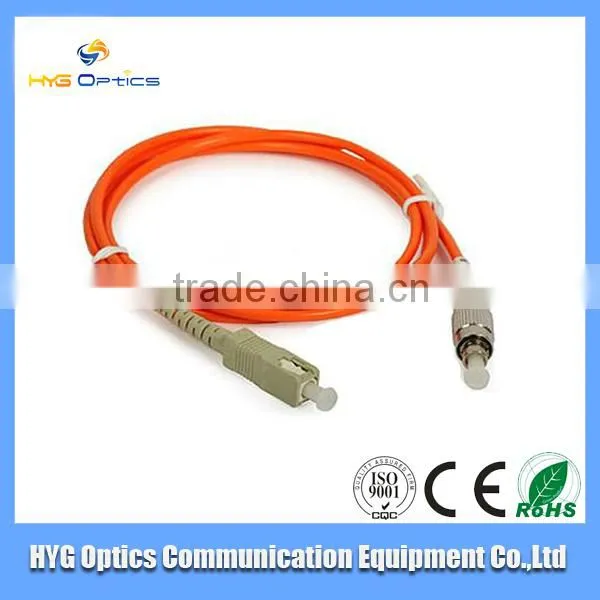

Indoor PVC Fiber Optic Patch Cable for FTTH Solution photo-3

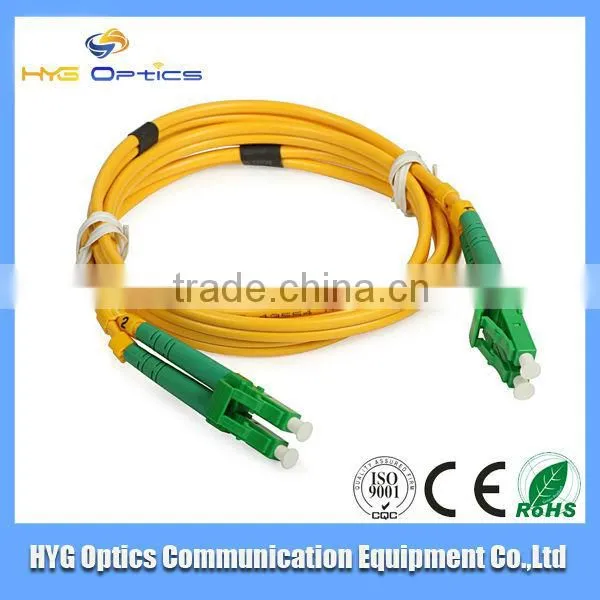

Indoor PVC Fiber Optic Patch Cable for FTTH Solution photo-4

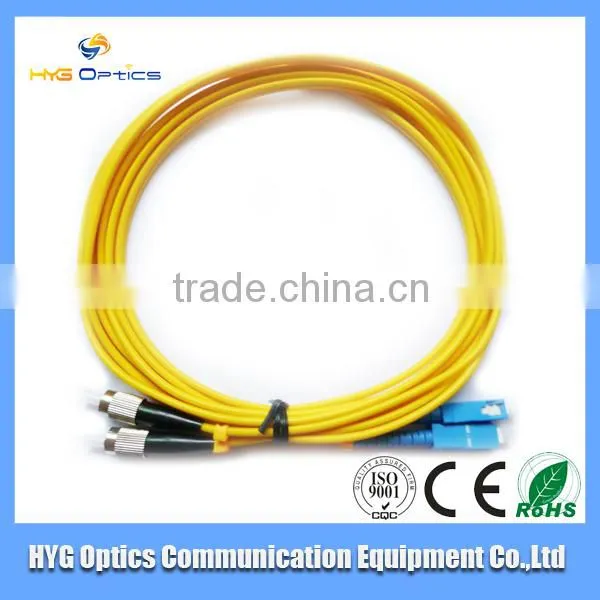

Indoor PVC Fiber Optic Patch Cable for FTTH Solution photo-5

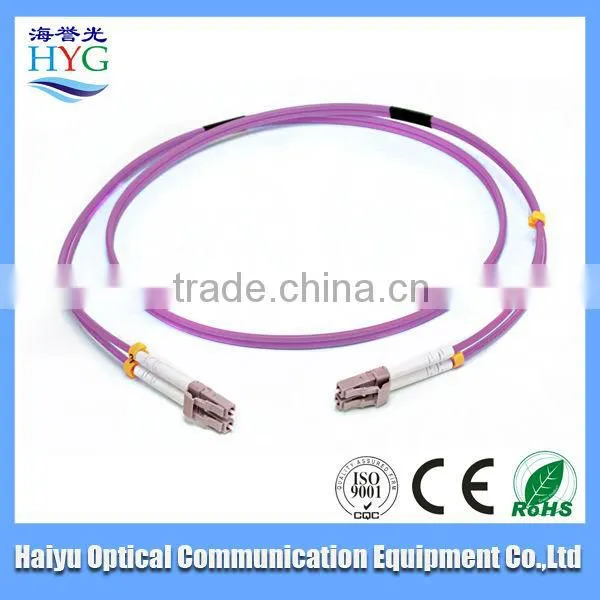

Indoor PVC Fiber Optic Patch Cable for FTTH Solution photo-6

US$ 1.22 - 2.32 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HYG

Model Number:

HYG-ST-FC-MMDX-3.0-M

Contact Supplier Request Quote Chat Now

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HYG

Model Number HYG-ST-FC-MMDX-3.0-M

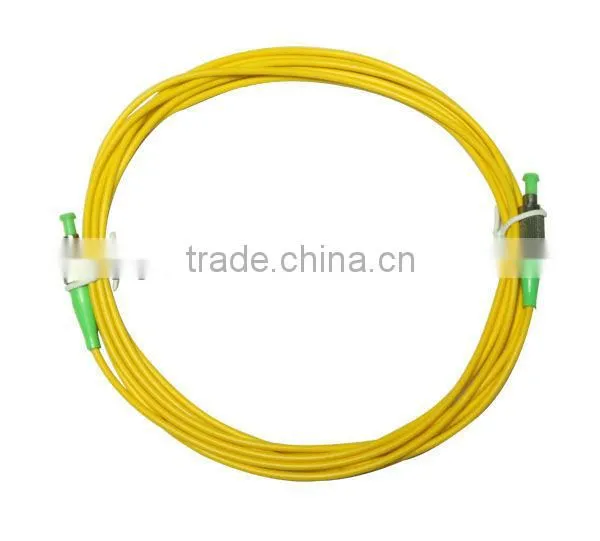

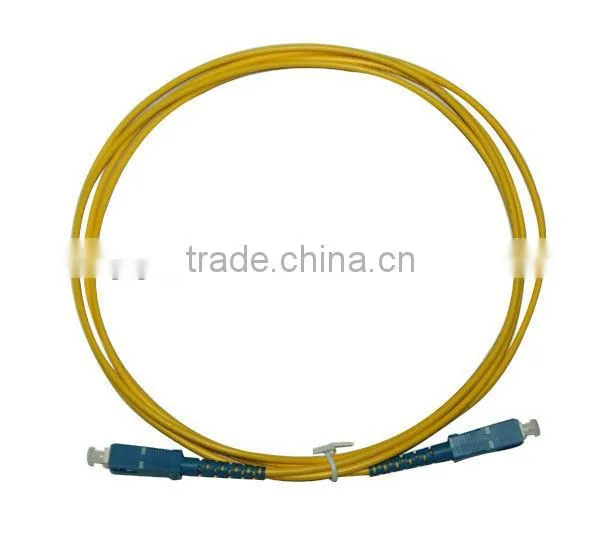

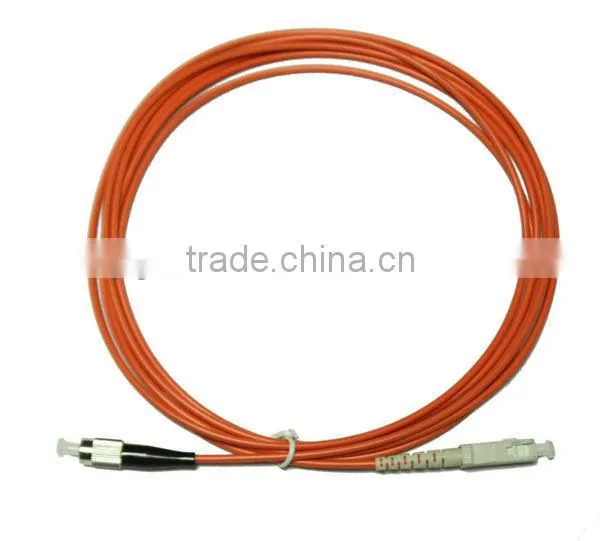

indoor PVC fiber optic patch cable for FTTH solution

Applied range

1 Optical fiber communication system

2 Optical access network

3 Optic-fiber Date Communication

4 Optical-fiber CATV

5 A local area network (LAN)

6 Test Equipment

Technical parameters

1 The min bending radius: 3.8 cm

2 Operating temperature range: - 40 ~ 85 °C

3 connector materials: ceramic plug core

4 Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm

5 Repeat plug: < 0.2 dB, each 500 times plug

6 Min reflection loss: 20 db

7 Max return loss:-50dB

ITEM			TEST conditions	Single mode	Multi mode
Optical properties	Insertion loss	UPC	1.31um,LED	<=0.3dB	<= 0.3dB
	Insertion loss	APC	1.31um,LED	<= 0.3dB	<= 0.3dB
	Return loss	UPC	1.31um,LED	>=50dB	>=35dB
	Return loss	APC	1.31um,LED	>=60dB
Mechanical properties	Impact test		HIGH:1.8 8 TIMES	<0.1dB	<0.1dB
	Vibration experiment		5-50HZ,1mm Full amplitude	<0.1dB	<0.1dB
	Plug life		More than 1000 times	<0.1dB	<0.1dB
	tensile strength		>100N,	<0.1dB	<0.1dB
Environment characteristics	Temperature Cycling Test		-25°C~+70°C,5 circle	<0.2dB	<0.2dB
	high-temperature test		+80°C,100 hours	<0.2dB	<0.2dB
	Low-temperature test		-40°C,100 hours	<0.2dB	<0.2dB
	Damp and hot test		+25°C~+65°C,Relative humidity 93%,100 hours	<0.2dB	<0.2dB

Environmental Reliability Test

The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others

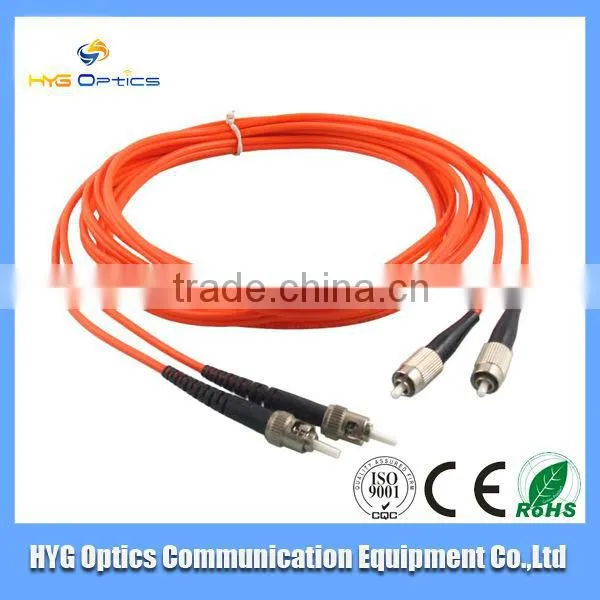

Other types about FO patch cord:
