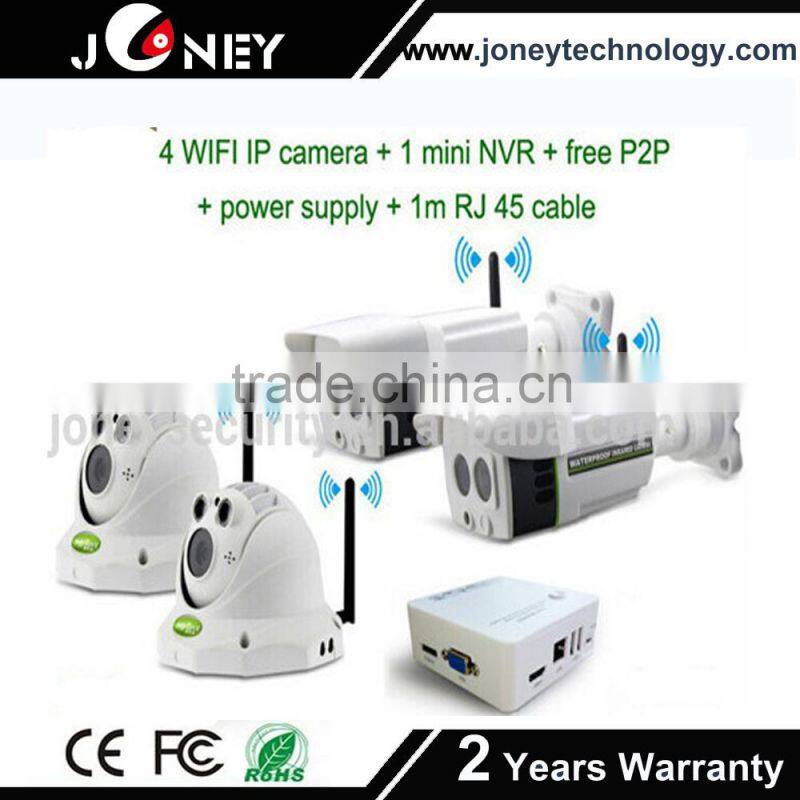

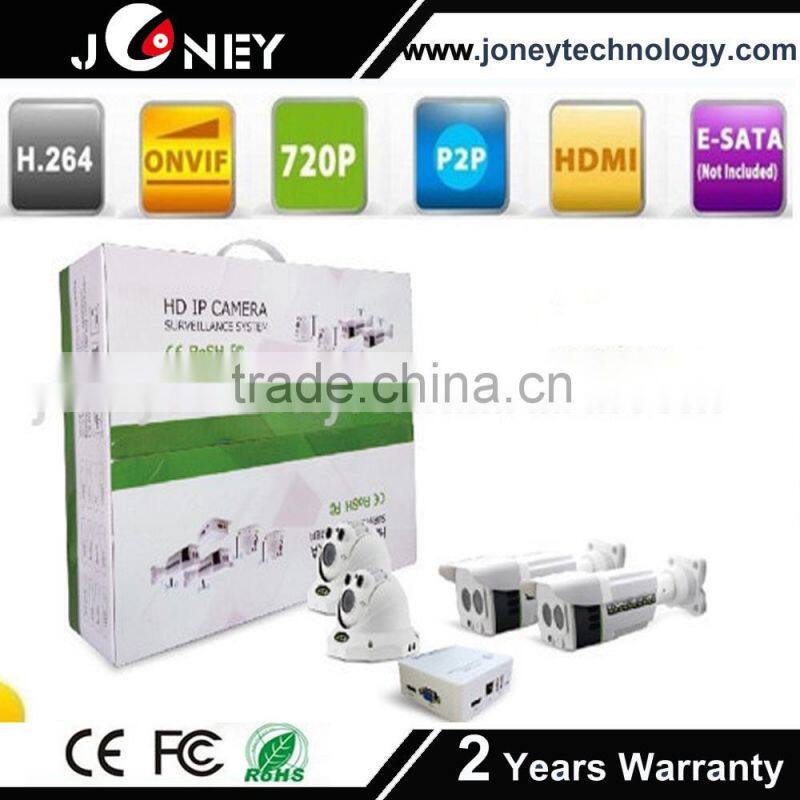

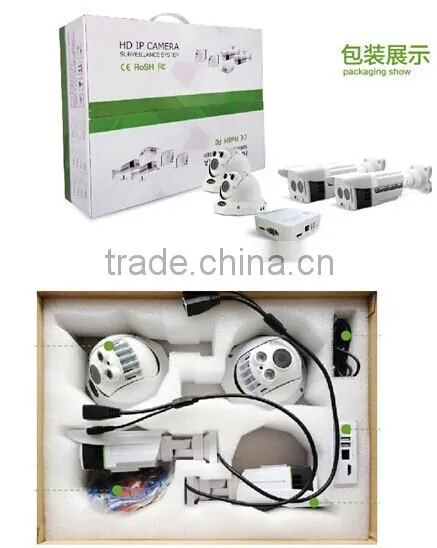

2015 hot sale 720P ip camera mini nvr kits

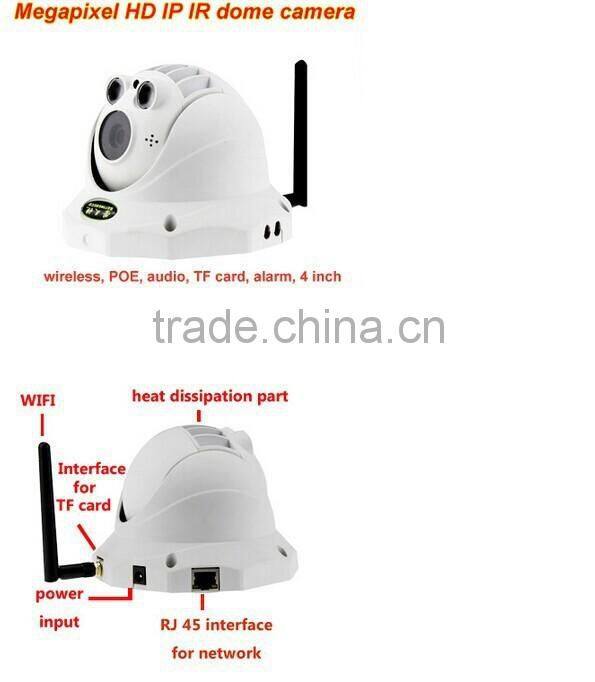

IP Dome Camera Features
1) Dual stream encoding (H.264/MJPEG)
2)include 3.6mm fixed lens(3MP).
3)IR view distance :35m with 2pcs Super power IR array leds
4) Support Multi-Screen software and CMS
5) Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
6)Plastic material,Size:131mm×95mm(dia.)
7)64 presets,4 cruises,2 point scan,home position,power cut off memory.
8)Audio Input/Output (optional)
10)TF card memory (optional )
11) Wifi optional

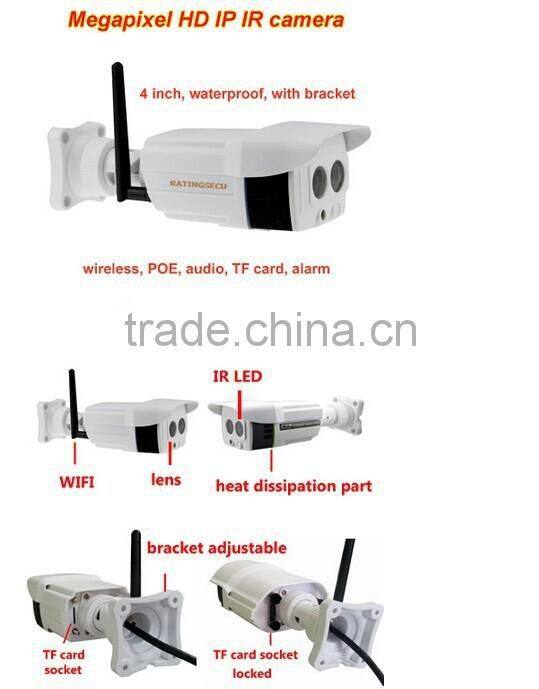

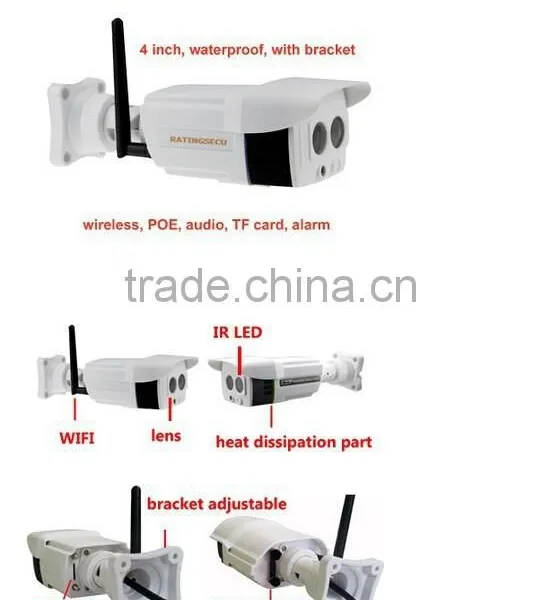

IP Bullet Camera Features
1) Dual stream encoding (H.264/MJPEG)
2) 1/2.8-inch 2.4 Megapixel low lux CMOS, include 3.6mm fixed lens(3MP) .
3) 2MP:1920*1080@30fps IR view distance :25m with 1pcs Super power IR array leds
4) Support Multi-Screen software and CMS
5) Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, UpnP, RTP, and RTCP
6)Plastic material,with all-in-one bracket.
7)Built-in POE,With Audio Input/Output,Alarm input/output,TF card memory.
Wifi optional

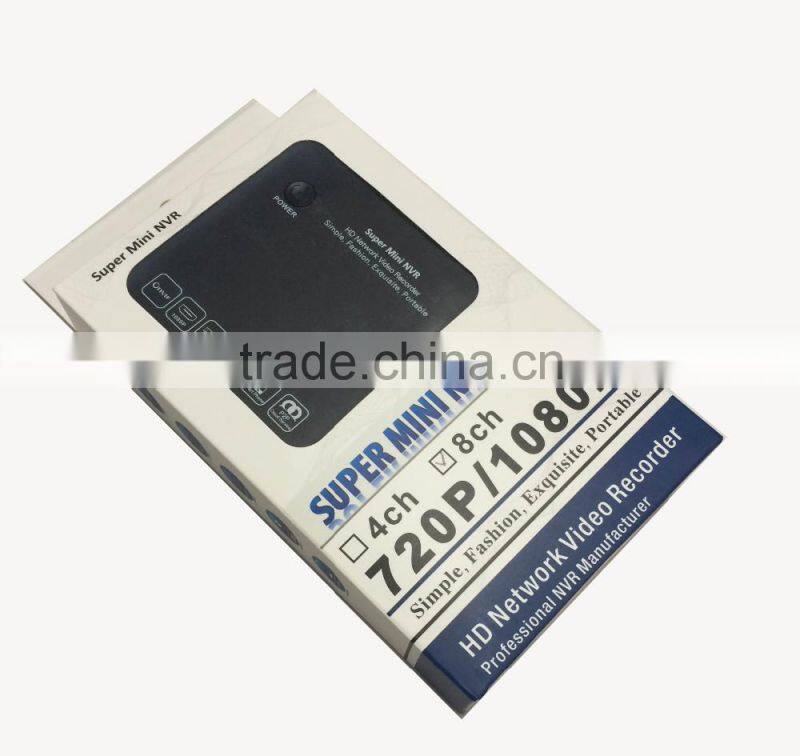

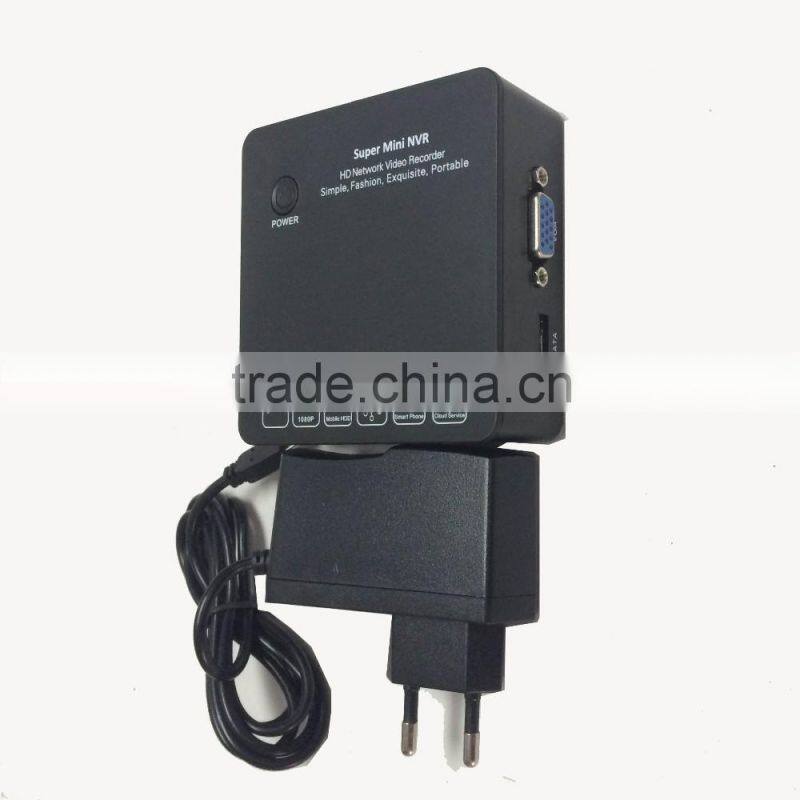

Mini NVR Specification
Model Number |
N6200-8E |
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) |
|
Recording Playback Quality |
4ch playback in8ch 720/960P mode; 1ch 1080P playback in 8ch 1080P mode |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
Operation Way |
Mouse |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
External Ports |
Video Input |
8×(1280*720)+sub[640*360]+1Ref.+4Play 8CH 1.0MP IP Camera |
8×(1280*960)+sub[640*480]+4Ref.+1Play 8CH 1.3MP IP Camera | ||
8×(1280*960)+sub[720*576]+2Ref.+1Play 8CH 1.3MP IP Camera | ||
8×(1920*1080)+sub[720*576]+1Ref.+1Play 8CH 2.0MP IP Camera | ||
Audio Input |
8ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Network Port |
1 RJ45,10M/100M self-adaptive LAN port |
|
USB Port |
2 USB 2.0 ports |
|
Wireless Port |
3G,WIFI |
|
HDD |
Mobile HDD/E-SATA/USB Disk |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian,Android) smart phone |
|
Power Supply |
5V2A |
|
Power Consumption |
≤10W(without HDD) |
|
Working Temperature |
-10℃~+55℃ |
|
Working Humidity |
10%-90% |
|
|
|
|
|
||
