shenzhen joney 16ch 720P/960P/1080P realtime recording & playback onvif NVR 16 channel
16 CHANNEL NVR
1. High-performance CPU, support HDMI, VGA output
2. Digital zoom function for both preview and playback
3. Support Cloud network function (P2P:Plug&Play)
4. Advanced playback function capable to activate within a second
5. Friendly GUI(Graphic User's Interface), support mouse, panel button and remote control
6. Support PTZ control, support web interface and HTTP, SMTP, DDNS, DHCP, PPPOE and NAT
7. Support mobile monitoring from iphone, Android, Symbian, Blackberry, Windows)
8. Built-in free DDNS
9. UPNP(Universal Plug & Play), NO need to set router port forwarding
10.Support mobile HDD backup
11.Support 3G/WIF USB
WHAT IS THE SPECIFICAYION OF 4 CHANNEL NVR?
Chipset |
Hisilion 3520A |
|
Operation System |
Embedded LINUX |
|
Bandwidth |
64Mbps |
|
Pentaplex |
Live play, recording, playback, backup & remote access |
|
Control Mode |
Front panel button, USB mouse, IR remote control, Network, Wireless mouse |
|
Video | ||
IP Camera Input |
4CH/8CH/16CH/32CH 720P@30fps(4Mbps); 4CH/8CH/16CH/32CH1080P@30fps(8Mbps) |
|
Protocol |
ONVIF2.0 compliant |
|
|
1CH HDMI@1920×1080/1440×900/1280×1024/1024×768/800×600 |
|
|
1CH VGA@1280×1024/1024×768/800×600 |
|
Alarm | ||
Input |
4CH/8CH/16CH |
|
Output |
1CH |
|
Recording | ||
Video compression |
H.264/MPEG 4 AVC, up to Main Profile 5.0 |
|
Audio compression |
G.711 |
|
Image Encoding |
Self-adaptive with local bandwidth, variable streaming & fixed streaming |
|
Dual Stream |
Support, main stream $ sub stream |
|
Resolution(NVR) |
5MP/3MP/2MP/1.3MP/1P/VGA/D1 |
|
Recording Mode |
Manual, Auto, Motion detect, scheduled |
|
Time bar |
Support |
|
Video detect | ||
Trigger Events |
Recording, PTZ, Tour, Email |
|
Motion Detect |
Support with variable sensitivity level |
|
Snapshot |
JPEG capture |
|
Playback & backup | ||
Max Playback |
4CH/8CH/16CH/32CH |
|
Backup Mode |
USB, HDD, Network Backup, Mobile HDD |
|
Networking | ||
Ethernet |
1 RJ-45 Port (10M/100M) |
|
Protocol |
TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP, FTP, UPnP |
|
Remote Operation |
Live viewing, Recording, Playback, system setting, Motion detect, Alarm, Log information |
|
Smart Phone |
iPhone, Android, Symbian, Blackberry, Windows Mobile |
|
HDD | ||
Capacity |
Support 2x SATA2.0 HDD each 4TB max. |
|
HDD Management |
Auto Hibernation, HDD faulty alarm & RAID |
|
Auxiliary Interface | ||
USB |
2x USB 2.0 |
|
RS485 |
Standard 485 for PTZ control |
|
Environment | ||
Power Supply |
DC 12V 4A |
|

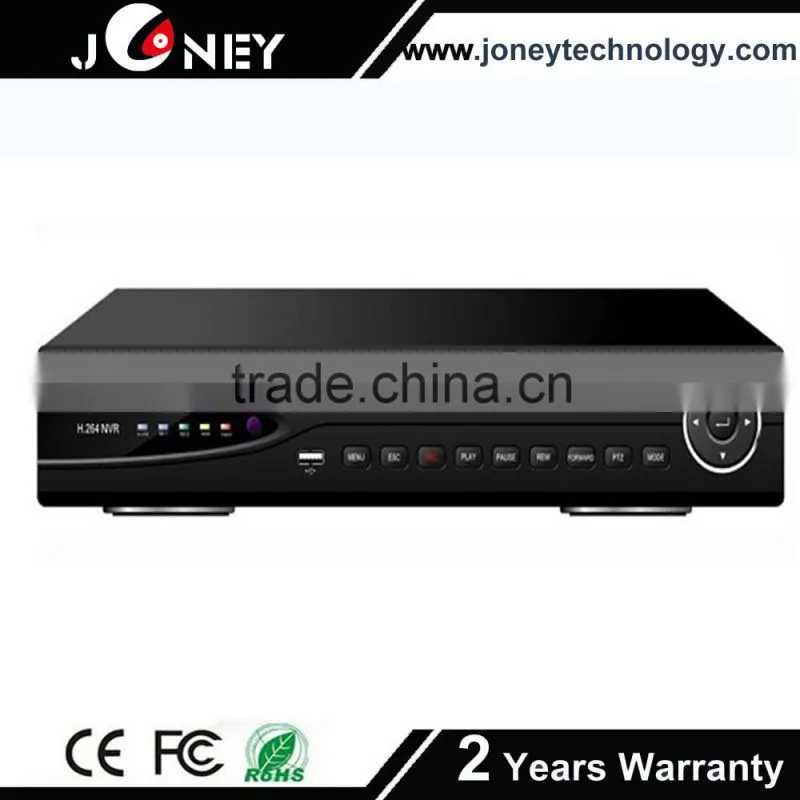

4CHANNEL NVR PHOTO

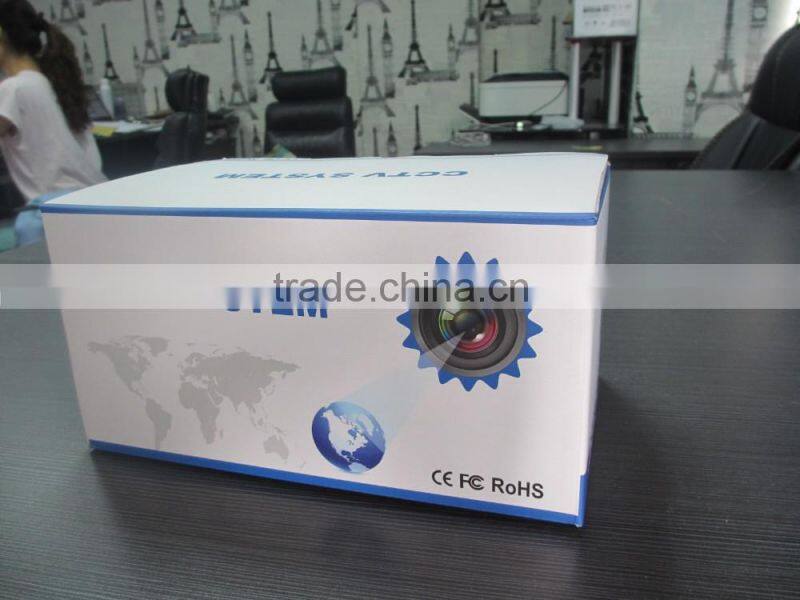

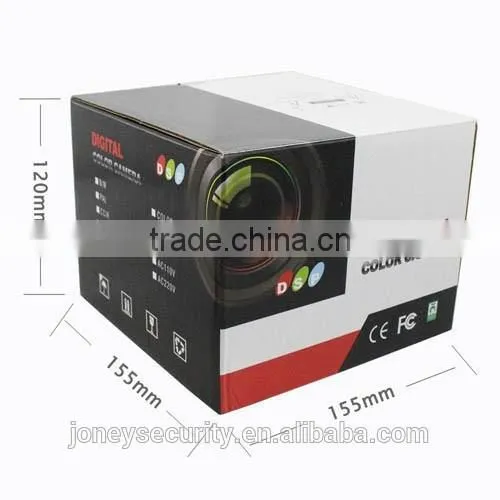

4 CHANNEL DVR PACKAGE
THE BEST SERVICES
1. Professional Technical Team:
A. We provide professional solution and reply for every inquiry in 24 hours.
B. Best quality and service, best after-sale
C. 2 year warranty time, life long technology support.
D. We can offer professional remotely technical support for problems.
2. OEM,ODM service: Customized requirement is available, we can design and produce machines with your own logo.
3. Good quality: We have strict quality control system .Good reputation in the market.
4. Special offers: We have special offers for long-term cooperation clients.
COMPANY VIEW
Shenzhen Joney Security Technology Co.,Ltd provide various specification
and items of CCTV cameras,PTZ cameras, IP cameras, Standalone DVR,
DVR card, related cctv accessories, Fingerprint device, access control system, Alarm products.
