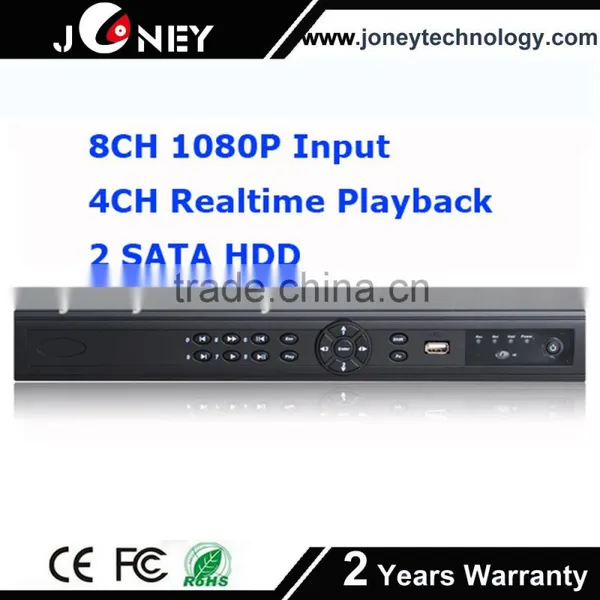

Professional NVR supports 8ch IP camera recorders suport audio and alarm
Function |
1. High-performance CPU, support HDMI, VGA, CVBS output |
Key Features
• Dual H.264 Streaming, Variable Bit Rate, self-adaptive with brandwidth
• Onvif Compliant, 8CH 1MP 720P/8CH 2MP 1080P input
• Support web interface & CMS, iphone/Android mobile view
• Support 2x SATA HDD each 4TB max.
• Support UPNP, free DDNS, Digital zoom
• Support 3G/WIFI USB, 3G Dongle
• Support P2P(Plug & Play), access with device ID, No DDNS needed
NVR support multiple language
Video | ||
IP Camera Input |
8ch.D1@30fps 8ch.720P@30fps 8ch.1080P@30fps |
|
Protocol |
ONVIF2.0 compliant |
|
Output |
1 CVBS, BNC (1.0Vp-p, 75 ohms) |
|
1CH HDMI@1920×1080/1440×900/1280×1024/1024×768/800×600 | ||
1CH VGA@1280×1024/1024×768/800×600 | ||
Audio | ||
Input |
8CH RCA |
|
Output |
1CH RCA (Line out, 2Vpp, 300ohms) |
|
Recording | ||
Video compression |
H.264/MPEG 4 AVC, up to Main Profile 5.0 |
|
Audio compression |
G.711 |
|
Image Encoding |
Self-adaptive with local bandwidth, variable streaming & fixed streaming |
|
Dual Stream |
Support, main stream $ sub stream |
|
Resolution(NVR) |
5MP/3MP/2MP/1.3MP/1P/VGA/D1 |
|
Recording Mode |
Manual, Auto, Motion detect, scheduled |
|
Time bar |
Support |
|
Video detect & Alarm | ||
Trigger Events |
Recording, PTZ, Tour, Email |
|
Motion Detect |
Support with variable sensitivity level |
|
Snapshot |
JPEG capture |
|
Alarm Input |
4CH |
|
Alarm Output |
1CH |
|
Playback & backup | ||
Max Playback |
8CH |
|
Backup Mode |
USB, HDD, Network Backup, Mobile HDD |
|
Networking | ||
Ethernet |
1 RJ-45 Port (10M/100M) |
|
Protocol |
TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP, FTP, UPnP |
|
Remote Operation |
Live viewing, Recording, Playback, system setting, Motion detect, Alarm, Log information |
|
Smart Phone |
iPhone, Android, Symbian, Blackberry, Windows Mobile |
|
HDD | ||
Capacity |
Support 2x SATA2.0 HDD each 4TB max. |
|
HDD Management |
Auto Hibernation, HDD faulty alarm & RAID |
|
Auxiliary Interface | ||
USB |
2x USB 2.0 |
|
RS485 |
Standard 485 for PTZ control |
|
Environment | ||
Power Supply |
DC 12V 4A |
|
DC +48V 2A(POE Mode) | ||
Working Environment |
-10°C~+55°C / 10%-90%RH |
|
Dimension |
350Wx245Dx60H(mm) |
|
Weight |
3Kg (without HDD) |
|
Installation |
Desk type |
|
THE BEST SERVICES
1. Professional Technical Team:
A. We provide professional solution and reply for every inquiry in 24 hours.
B. Best quality and service, best after-sale
C. 2 year warranty time, life long technology support.
D. We can offer professional remotely technical support for problems.
2. OEM,ODM service: Customized requirement is available, we can design and produce machines with your own logo.
3. Good quality: We have strict quality control system .Good reputation in the market.
4. Special offers: We have special offers for long-term cooperation clients.
COMPANY VIEW
Shenzhen Joney Security Technology Co.,Ltd provide various specification
and items of CCTV cameras,PTZ cameras, IP cameras, Standalone DVR,
DVR card, related cctv accessories, Fingerprint device, access control system, Alarm products.
