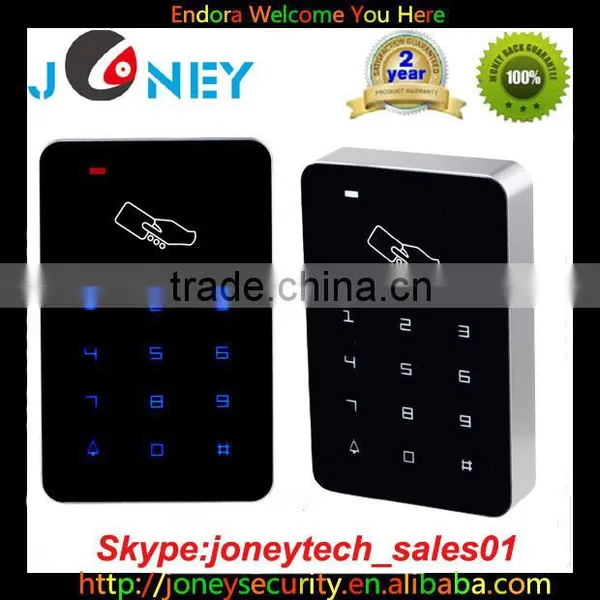

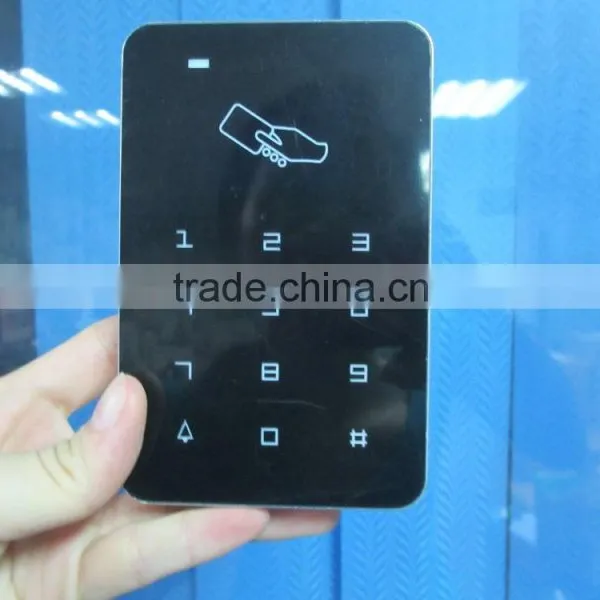

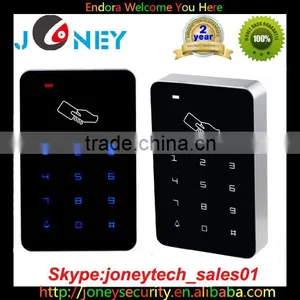

Model Number : JYA-T002EM
Introduction :
JYA-T002EM is a reliable standalone access control system for most home usage. With the IP68 waterproof design, it can adapt to most of weather and area and it is convenient even in the bad weather. It can allow 2,000 users use the machine. With backlight, it can use in the dark night.
Main Features :
.Keypad touch screen+UV polished shell
.Support external WG26 Reader
.With RFID Antena
.Backlight modes: ON,OFF,Automatically
.1 door Release Port and 1 doorbell Port;
.1 Relay output and 1 PUSH (low) output
.Built-in Buzzer; With two-color LED display
.Anti tamper
.LED and buzzer
.Multi way of backlighting optional
Operating voltage |
DC12V-24V |
Operating current |
< 100mA |

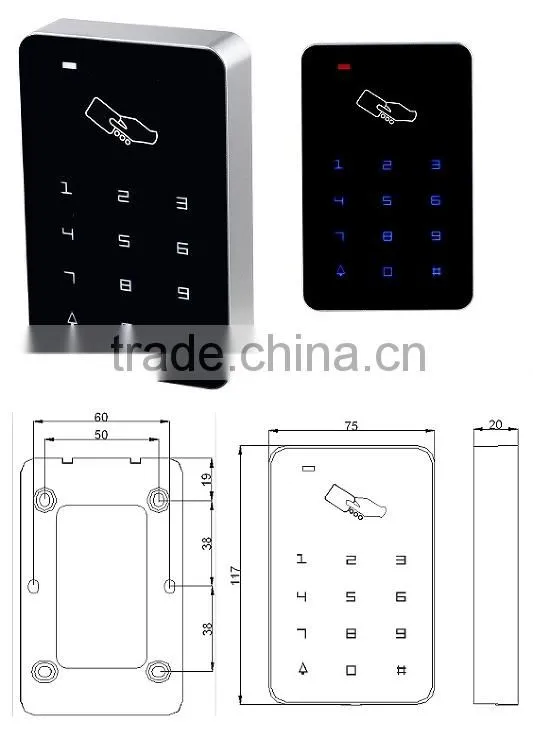

Dimensions |
120mm × 78mm × 22mm |
Weight |
130g |
Ambient temperature |
-10 °C_ 70 °C |
Relative humidity |
20% _ 80% |
Storage |
1000 users |
Card type (alternative) |
125KHz EM card |
Card reading distance |
1 - 15CM |
