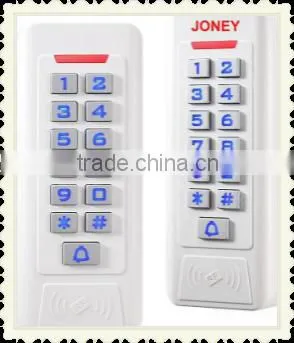

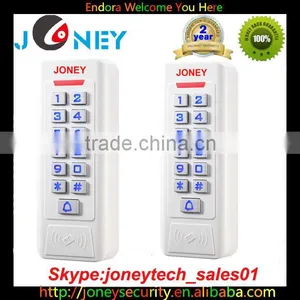

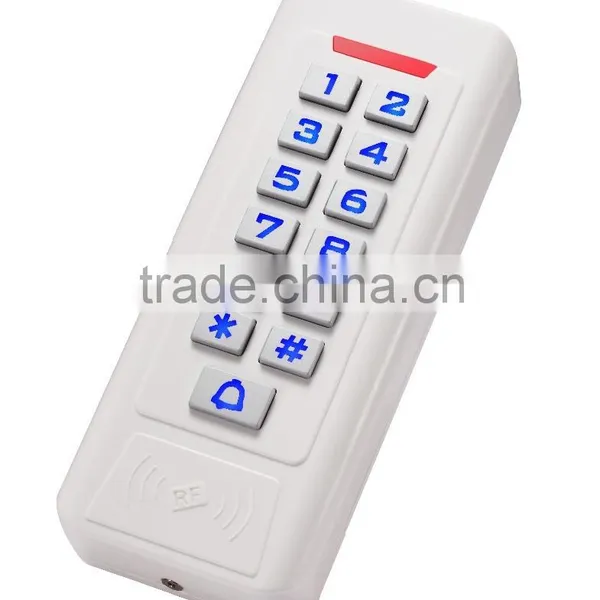

Help Center2 Relays Plastic Anti-passback Standalone Access Machine for Two Doors
Related Products
-
IP68 Pure Zinc Alloy Waterproof of Two Doors Standalone Access Control FacilityUS$ 70 - 75MOQ: 1 Piece -
IP68 Remote Mental Rainproof Durable Access Control Device for DoorsUS$ 38 - 45MOQ: 1 Unit
-
IP68 Mental Housing Vandal-proof and Keypad Access Control Security With BacklitUS$ 45 - 50MOQ: 1 Unit
-
IP68 RFID Mental Waterproof Keypad Standalone Access Control With BacklitUS$ 30 - 40MOQ: 1 Unit
-
Mental Housing Rfid Vandal-proof Standalone Access Control SystemsUS$ 22 - 25MOQ: 1 Unit
Model Number : JYA-CC1-ASEM
Introduction :
CC Series is a standalone for two doors, support card, pin, card+pin access way. It is with 2 relays to control 2 doors and supports up to 2000 users in total, each user can possess one card and one pin.It can directly drive Lock, Alarm, Ring Bell, and also can connect with Exit Button and Door Contact.
Main Features :
.Wiegand in/out
.Plastic casing
.Capacity: 2000 user
.Anti- passback for two door
.With external reader for two doors
.Multi way of backlighting optional
.2 relays, supports up to 2000 users in total for 2 doors
Main specification :
Card Type |
125KHZ EM card |
Working Voltage |
9V-12V |
Reading Range |
3~8cm |
Operating Humidity |
10%~90% |
Alarm output load |
≤20A |
Door Opening time |
0~99 |
Waterproof |
IP68 |
Idle Current |
≤30mA |
Operating Temperature |
-35°C~60°C |
Lock output load |
≤3A |
Short-circuit protect |
≤100μS |
Dimensions |
145*55*22mm |
Connection:
Red ------------------------------+12V
Black Wire ----------------------GND
Blue Wire -----------------------DATA 1
White Wire ----------------------DATA 2
Green Wire ----------------------LED
Brown Wire ---------------------BUZZER
Magnetic Lock Installation Instruction
