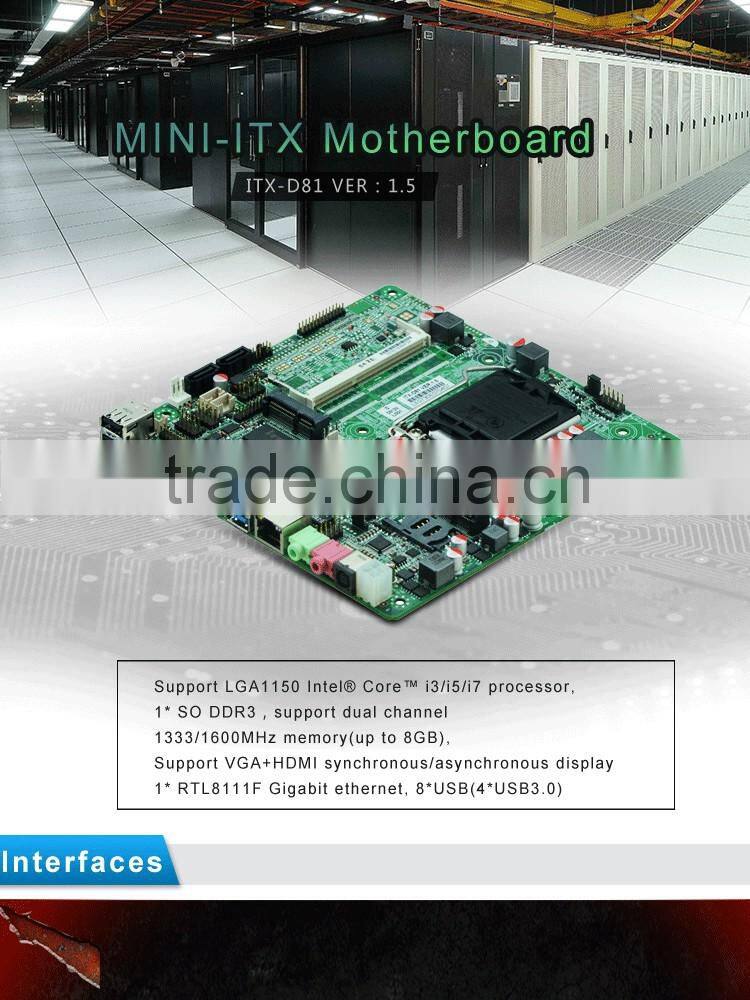

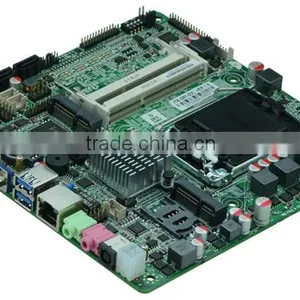

Mini PC Share Mainboard i3 Motherboard I7 Industrial Motherboard Support 2* SATAIII,Speed up to 6Gbps

Model NO.

ITX-D81_2L VER:1.5

CPU

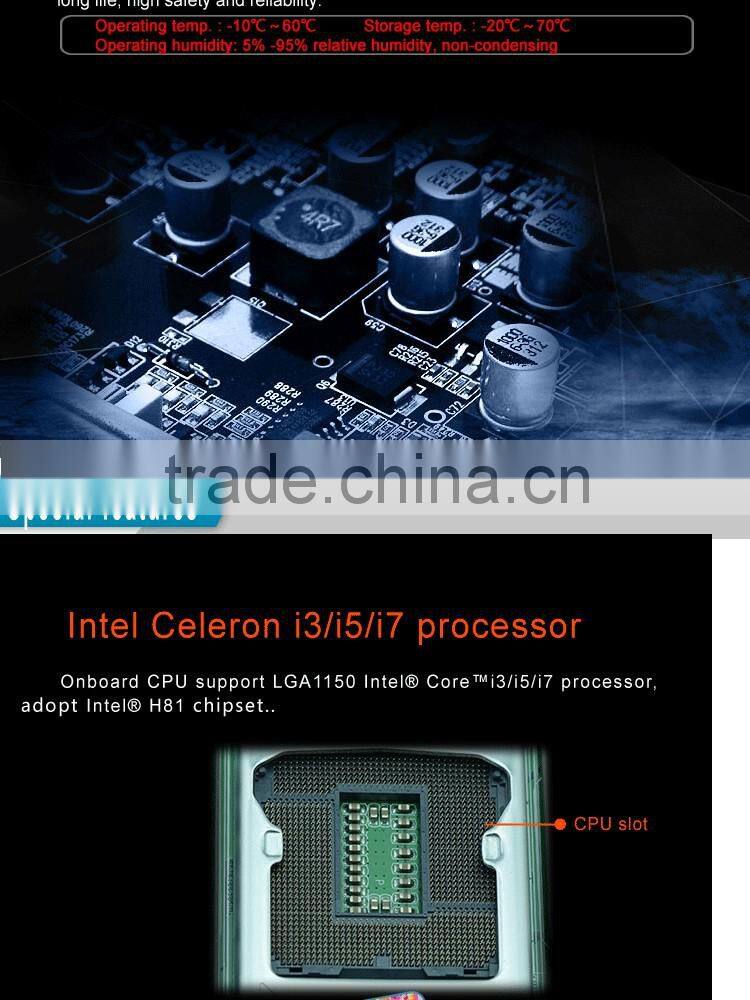

Support Intel® The fourth generation Haswell LGA1150 Processor

chipset

Intel® H81 Chipset

Memory

2*SO DDRIII,Support 1600/1333MHz Memory ,Support16GB

Display

Integrated Intel®HD Graphics

Support 1*VGA,2*HDMI

Support VGA;HDMI Synchronous / asynchronous display

LAN

1* RTL8111F 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE

Storage

2* SATAIII,Speed up to 6Gbps

Audio

Integrated ALC662 6-Chanel output,Support MIC/Line-out.

Advise 3Ω2W loudspeaker

Expansion Slots

1* Mini-PCIE Support WIFI/3G

1* MSATA Support SSD/WIFI,SSD transfer rate up to 6Gbps

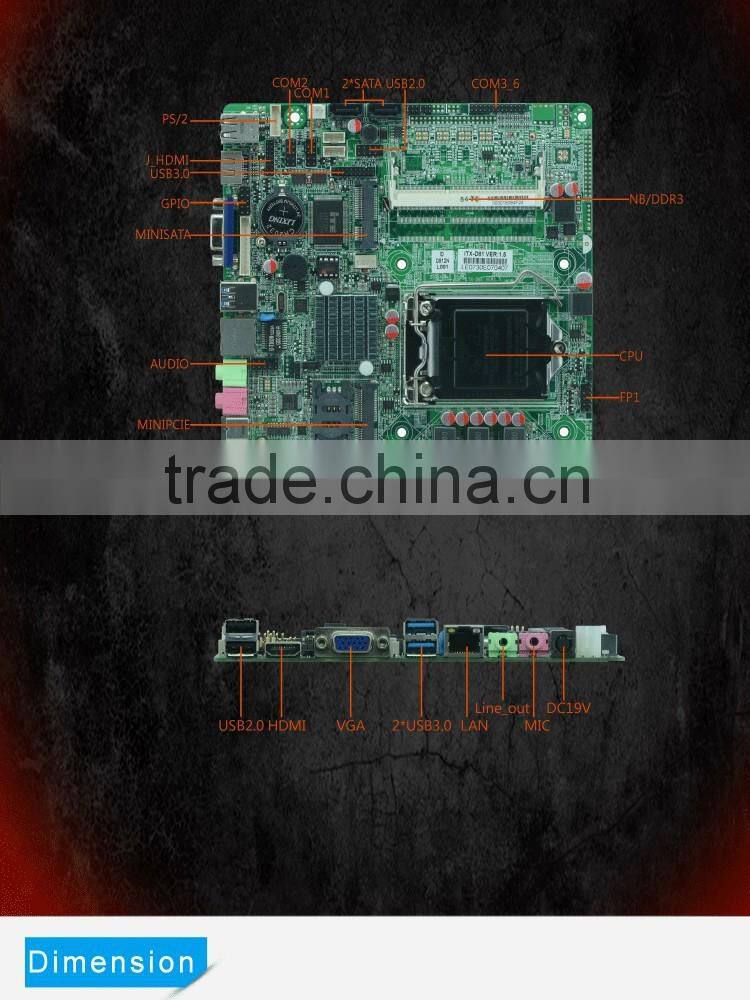

Rear I/O

4* USB2.0(2*USB3.0)

1* HDMI

1* VGA

1* RJ-45

1* Line out(Green)

1* Mic (Red)

1* 19V DC_JACK

1* LVDS(2*15pin),support dual 24 BIT LCD display

Internal I/O

1* JHDMI (2*8Pin)

1* JVGA1(2*12pin)

2* RS232 COM

1* LPT (2*13pin)

4* USB2.0 ( Including 2*USB3.0)

1* PS/2(1*6Pin)

1* AUDIO (2*5pin)

1* SIM card socket

2* PWROUT Hard disk power supply interface

1* FP1(2*5pin Front panel buttons and LED connected)

1* ATX_19V Can be 19V Input and output power interface

Fan interface

1* CPUFAN  4pin;1* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_19V Single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

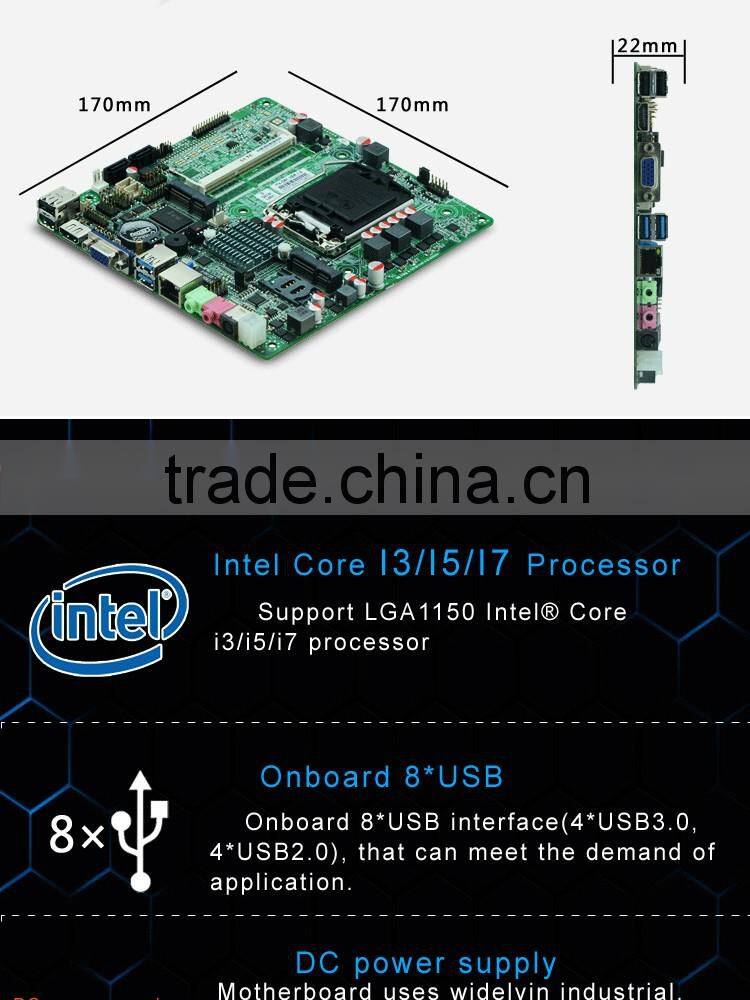

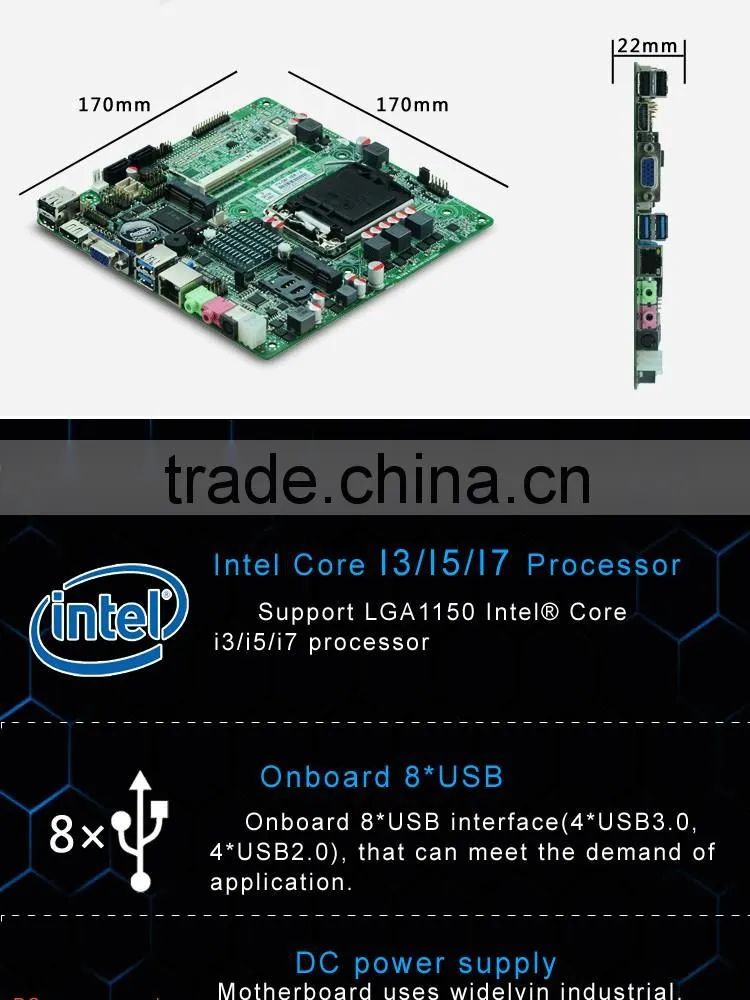

Dimension

170mm x 170mm

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-D81 VER:1.5

LGA1150

2*SODDR3

1*VGA

X

1*RTL8111F

8

2

X

DC/12V

2

ITX-D81_D2L VER:1.5

LGA1150

2*SODDR3

1*VGA

2*24BIT

1*RTL8111F

8

2

X

DC/12V

3

ITX-D81_D6L VER:1.5

LGA1150

2*SODDR3

1*VGA

2*24BIT

1*RTL8111F

8

6

COM3

DC/12V
