Specification &Details
x86 embedded motherboard I7 motherboard with lvds Support Intel Intel The fourth generation Haswell_U/I7-4510U/2.0GHz
Specifications:
Model No.: |
ITX-H98_I7(4510U) VER1.2 |
CPU |
Support Intel®Intel® The fourth generation Haswell_U/I7-4510U/2.0GHz Dual core four thread processor,TDP 15W |
Chipset |
Integrated Intel®HD Graphics |
Memory |
1*SO DDRIII slot, Only support 1600/1333MHz DDR3L/1.35V RAM,Max up to 8GB |
Graphics |
Integrated, Intel®HD Graphics |
|

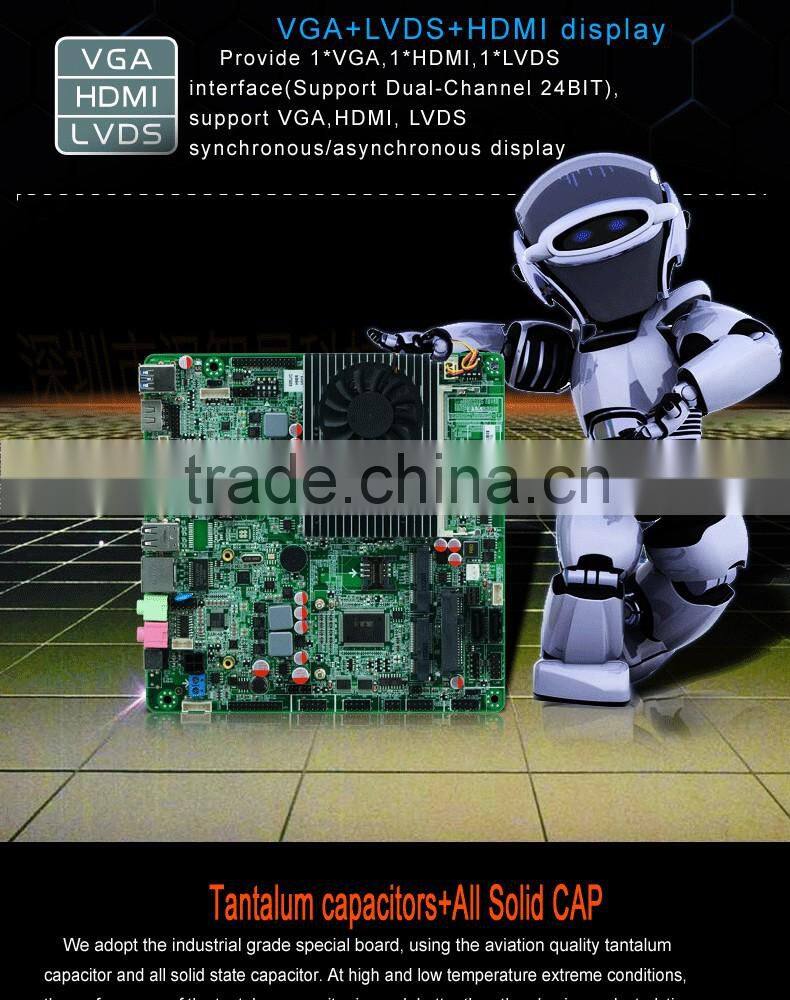

Support 1*VGA,2*HDMI,1*LVDS (Support Dual-Channel 24BIT) |
|
Support VGA;HDMI;LVDS Synchronous / asynchronous display |
Lan |
1* RTL8111F Gigabit network card chip, support network wake-up /PXE function |
Storage |
2* SATAIII,Transfer rate up to 6Gbps |
|
1* 2.5 inch Hard disk |
Audio |
Integrated ALC662 6-Channel output ,Support MIC/Line-out.Power amplifier |
|
Recommend 2Ω5W Loudspeaker |
Expansion Slots |
1* Mini-PCIE, Support WIFI/3G module |
|
1* MSATA Support SSD/WIFI,SSD Transfer rate 6Gbps |
|

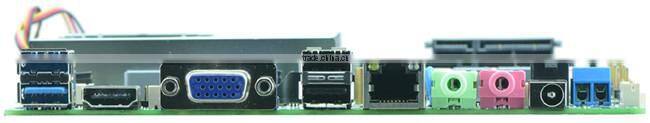

Rear I/O
|
2* USB2.0 port |
|
2* USB3.0 port |
|
1* HDMI port |
|
1* VGA port |
|
1* RJ-45 Lan port |
|
1* Line out(Green) |
|
1* Mic (Red) |
|
1* 12V DC_JACK input |
|
Internal I/O
|
1* LVDS port(2*15pin),Support 24BIT LCD |
|
1* LVDS INVERTER(1*6pin) |
|
1* JHDMI port(2*8Pin),The same signal with rear panel HDMI |
|
1* JVGA1(2*12pin) The same signal with DB15 |
|
2* RS232 COM port(Support only 9PIN with power function) |
|
1* LPT port(2*13pin) |
|
3* USB2.0 port |
|
1* PS/2 port(1*6Pin) |
|
1* AUDIO(2*5pin) |
|
1* SIM Card socket |
|
1* SATA power port |
|
1* JPW1(Support hardware power on) |
|
1* FP1(2*5pin Front panel buttons and LED connected) |
|
1* ATX_12V can be +12V Input / output power interface, 1*2Pin blue socket |
Fan interface |
1* CPU FAN 4pin;1* SYSFAN 3pin |
GPIO |
Support 4 input and output GPIO |
BIOS |
AMI 64Mb Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V single power supply |
Operating Temp. |
-10℃~60℃ |
Storage Temp. |
-20℃~70℃ |
Humidity |
5%-95%(relative humidity; non-condensing) |
Dimension |
170mm x 170mm |

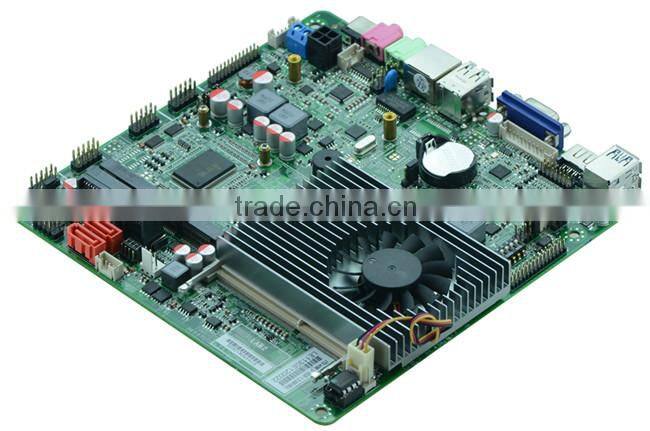

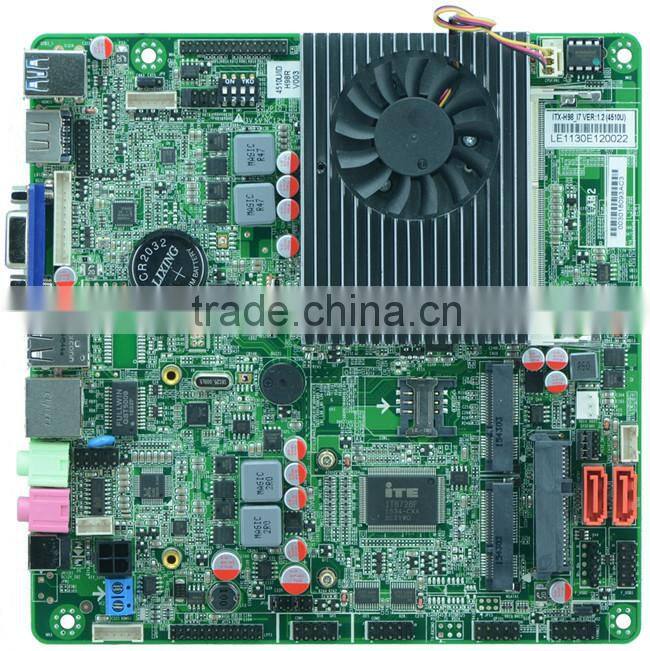

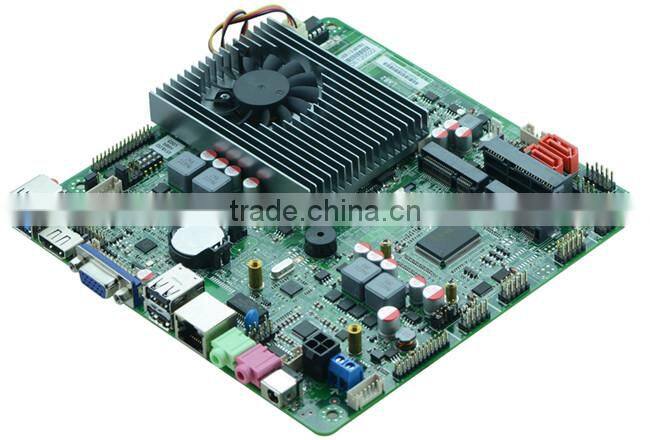

Images of product:
Order Information:
No. |
Model No. |
CPU |
Memory |
Display |
LVDS |
LAN |
USB |
COM |
RS485/422 |
Power |
1 |
ITX-H98_I7 VER:1.2 |
4510U/2.0G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111F |
7 |
2 |
X |
DC/12V |
2 |
ITX-H98_I5 VER:1.2 |
4200U/1.6G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111F |
7 |
2 |
X |
DC/12V |
3 |
ITX-H98_I3 VER:1.2 |
4010U/1.7G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111F |
7 |
2 |
X |
DC/12V |
Company information:
Certification:

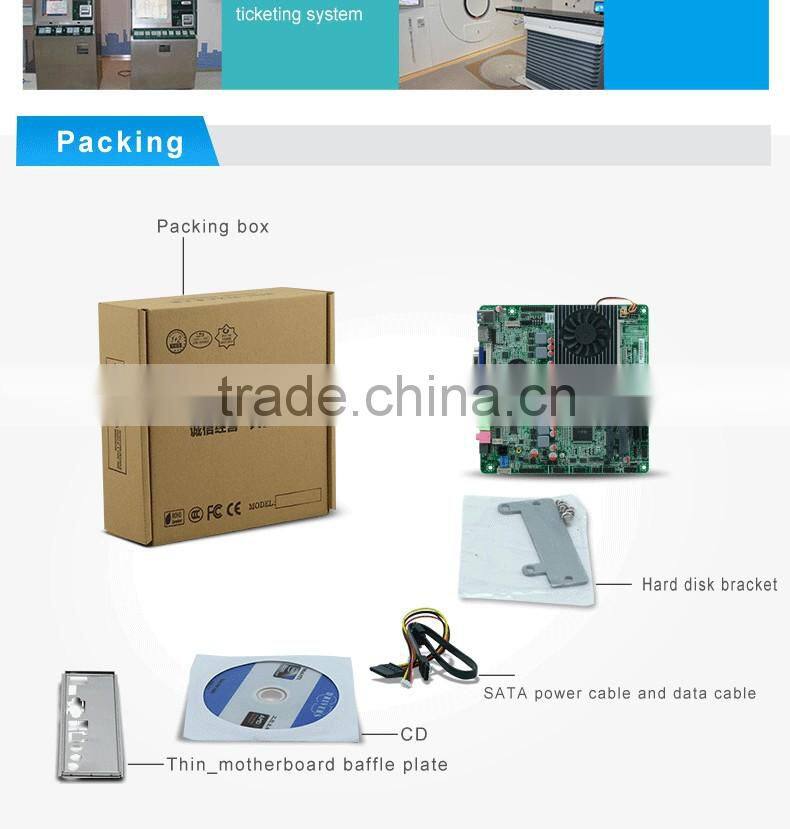

Package:
Delivery method:
We are an Intel IoT Solutions Alliance Affiliate Member
