Bay Trial Motherboard Combo Computer Network Security Motherboard Support Hardware Reset Function

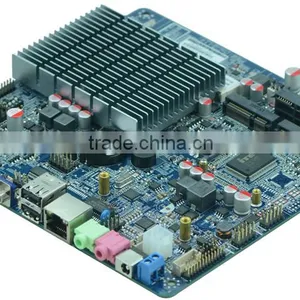

Bay Trial Motherboard Combo Computer Network Security Motherboard Support Hardware Reset Function thumbnail-1
Bay Trial Motherboard Combo Computer Network Security Motherboard Support Hardware Reset Function photo-1
US$ 1 - 128 MOQ: 2 Units
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
YANYU GONGKONG
Contact Supplier Request Quote Chat Now
Shenzhen Hanzsung Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name YANYU GONGKONG
Model Number ITX-M50 M01
Place of Origin Guangdong, China

                                                 Specification &Details

Bay trial motherboard combo computer network security motherboard Support hardware reset function

Specifications:

Model NO.

ITX-M50 VER:2.2

CPU

Integrated Intel®J1900/2.00GHz Quad core,TDP 10W

Chipset

Intel® Bay trail SOC

Memory

1*SO DDRIII,Only Support1600/1333MHz DDR3L/1.35V Memory, Up to 8GB

Display

Integrated Intel®HD Graphics

Support 1*VGA,2*HDMI,1*LVDS(Dual channel support 24BIT)

Support VGA;HDMI;LVDS Synchronous / asynchronous display

LAN

1* RTL8111F 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE

Storage

1* SSD



1* SATAⅢ 2.5 Inch notebook hard disk and 1* SATA Hard disk interface for you choose

Audio

Integrated ALC662 6-Channel output,Support MIC/Line-out

Advise 3Ω5W loudspeaker

Expansion Slots

1* Mini-PCIE Support WIFI/3G

1* MSATA Support SSD/WIFI,SSD transfer rate up to 6Gbps

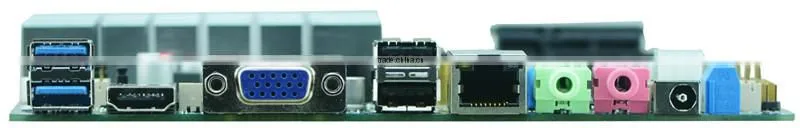

Rear I/O

4* USB2.0

1* HDMI

1* VGA

1* RJ-45

1* Line out(Green)

1* Mic (Red )

1* 12V DC_JACK

Internal I/O



1* LVDS(2*15pin),Dual channel support 24BIT LCD Display

1* LVDS INVERTER(1*6pin)

1* JHDMI(2*8Pin)

1* JVGA1(2*12pin)

2* RS232 COM

1* LPT(2*13pin)

5* USB2.0(2*2X5pin and 1*1x4pin)

1* PS/2(1*6Pin)

1* AUDIO (Front Audio interface 2*5pin)

1* SIM Card socket

1* PWROUT Hard disk power supply interface

1* FP1 (2*5pin Front panel buttons and LED connected)

1* ATX_12V Can be +12V Input and output power interface

Fan interface

1* CPUFAN 4pin;1* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 64MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V Single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm

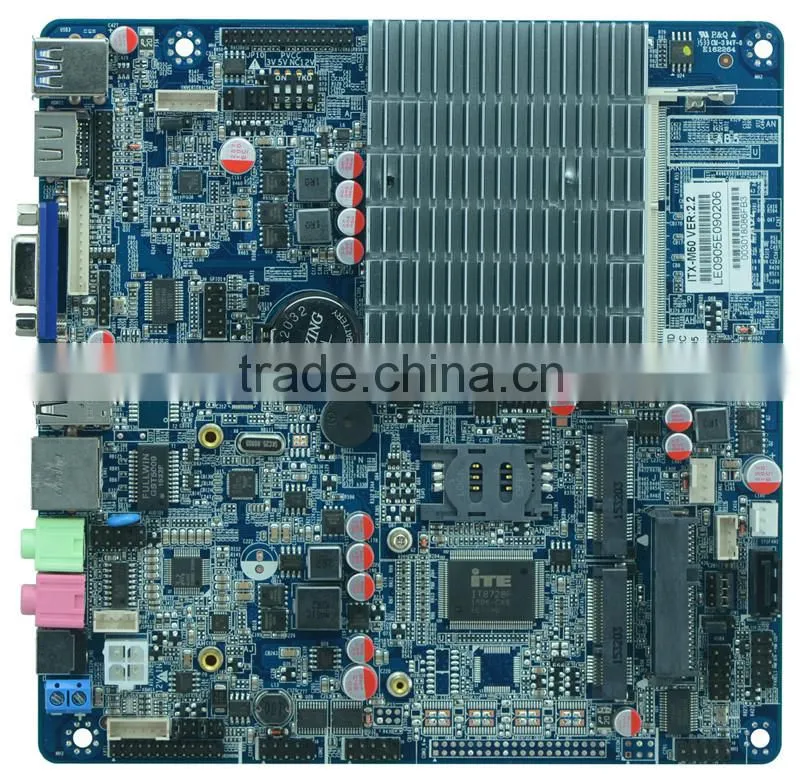

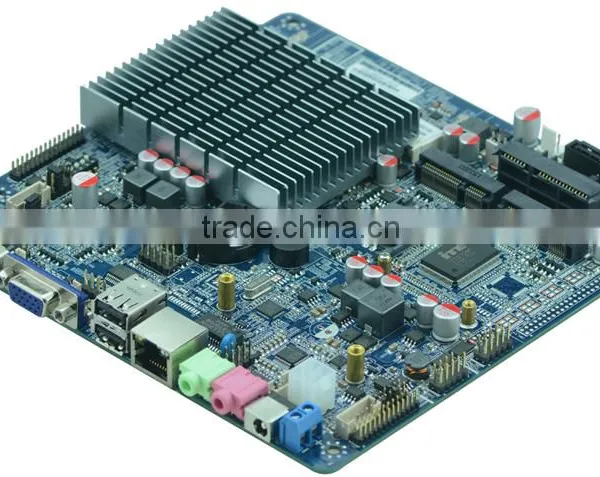

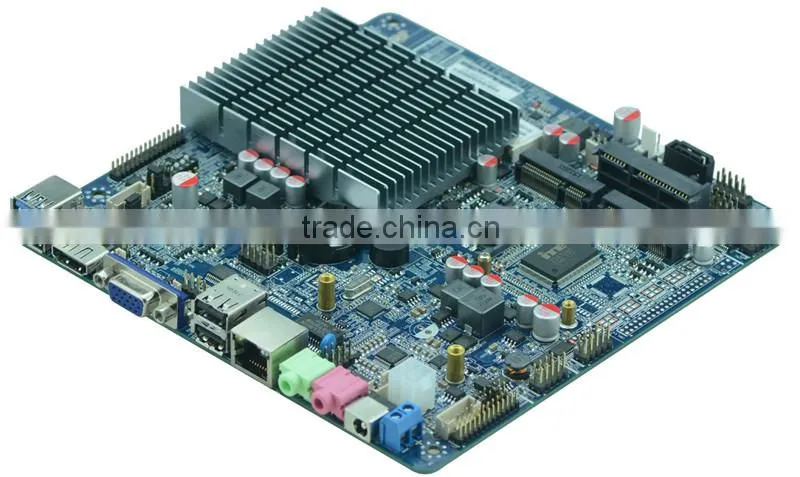

Images of product:

Bay trial motherboard combo computer network security motherboard Support hardware reset functionBay trial motherboard combo computer network security motherboard Support hardware reset functionBay trial motherboard combo computer network security motherboard Support hardware reset function

Bay trial motherboard combo computer network security motherboard Support hardware reset functionBay trial motherboard combo computer network security motherboard Support hardware reset functionBay trial motherboard combo computer network security motherboard Support hardware reset functionBay trial motherboard combo computer network security motherboard Support hardware reset function



Order Information:

NO.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M50_D6L VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

6

COM3

DC/12V

2

ITX-M50_N18 VER:2.0

J1800/2.41G

1*SODDR3

1*VGA

X

1*RTL8111F

9

X

X

DC/12V

3

ITX-M50_NC VER:1.3

J1900/2.00G

1*SODDR3

1*VGA

X

1*RTL8111F

7

X

X

DC/12V

4

ITX-M50_18 VER:2.2

J1800/2.41G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

2

X

DC/12V

5

ITX-M50 VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

2

X

DC/12V

6

ITX-M50_2L VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

2*RTL8111F

7

6

COM3

DC/12V



Company information:

Bay trial motherboard combo computer network security motherboard Support hardware reset function



Bay trial motherboard combo computer network security motherboard Support hardware reset function



Bay trial motherboard combo computer network security motherboard Support hardware reset function



Certification:

Bay trial motherboard combo computer network security motherboard Support hardware reset function



Package:

Bay trial motherboard combo computer network security motherboard Support hardware reset function

Delivery method:

Bay trial motherboard combo computer network security motherboard Support hardware reset function



We are an Intel IoT Solutions Alliance Affiliate Member

16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe

Welcome to contact me for more details with best prices.
