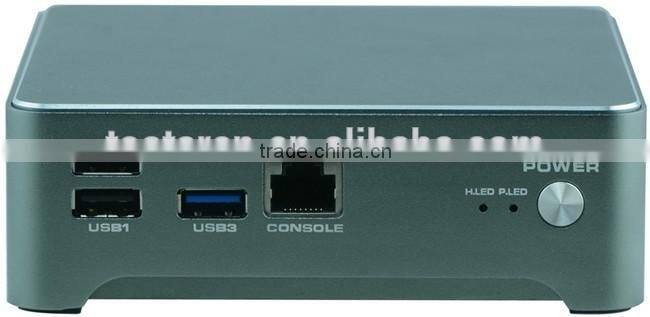

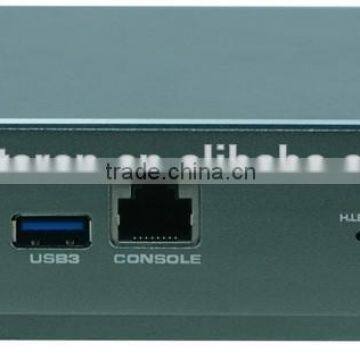

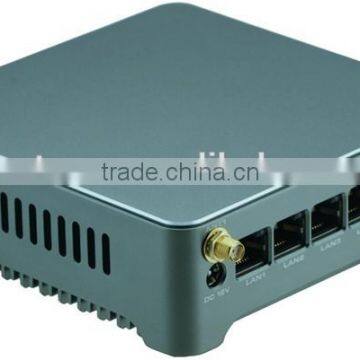

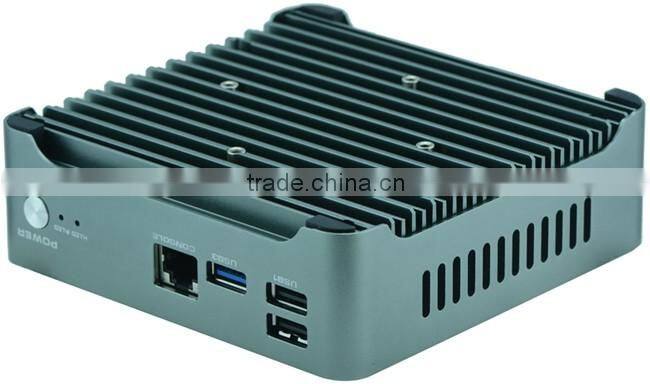

mini 1U server Barebone J1900 4 ehternet firewall Fanless small case
Chassis | Color | Sliver |
Dimension | 128mm x 128mm x 41mm(L x W x H) | |
Structure | Fanless heat sink structure | |
Material | Aluminium alloy | |
Motherboard | Model No. | STX-R19F VER:1.0 |
CPU | Integrated Intel® J1900 quad-core 2.0GHz | |
Graphic | Intel®HD Graphics | |
Memory | 1 x DDR3L/1.35V/2GB Ram Memory | |
Storage | 2.5"HDD | N/A |
CF | N/A | |
SSD | 32GB | |
eMMC | 16G/32G(optional) | |
Features | LAN | 4 x LAN(Intel WG82583V Gigabit Ethernet ),support Wake on LAN / PXE function |
USB | 2 x USB2.0 | |
1 x USB3.0 | ||
Serial Ports | 1 x COM | |
Display | 1 x VGA | |
Expansion Slots | 2 x MINIPCIE(1 x MSATA,1x WIFI interface) | |
Indicater | 1 x PWRLED, 1 x HDDLED | |
System Control | Power switch | |
Wireless | 1x 2 x WIFI/3G SMA antenna(optional) | |
Power | Power supply | DC 12V/3A adapter input |
Reliability | Installation | Desktop or wall_mounted |
Working T. | 10℃~60℃ | |
Storage T. | -20℃~70℃ | |
Relative humidity | 5%-95%( relative humidity, non_condensing ) | |
Vibration | 0.5g rms/5-500HZ/random/operating |
1.Paypal
2.Bank Transfer
3.Western union
1. We can provide OEM/ODM services
2. We can sell one sample for your test
3. High-quality product and competitive price
4. We can laser mark your logo on the pc case for free.
5. 1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the
part that need to change.And each of us pay half of the shipping fee.
Contact us
SHENZHEN HANZSUNG TECHNOLOGY CO., LTD
Terry Lei
4F Building G,
Heng Changrong Technology Park,
HuaNing RD, DaLang Street,
Longhua,BaoAn District,
Shenzhen City, China
Website:
Tel: +86 755 89395385 Fax No. : +86 755 23208809
