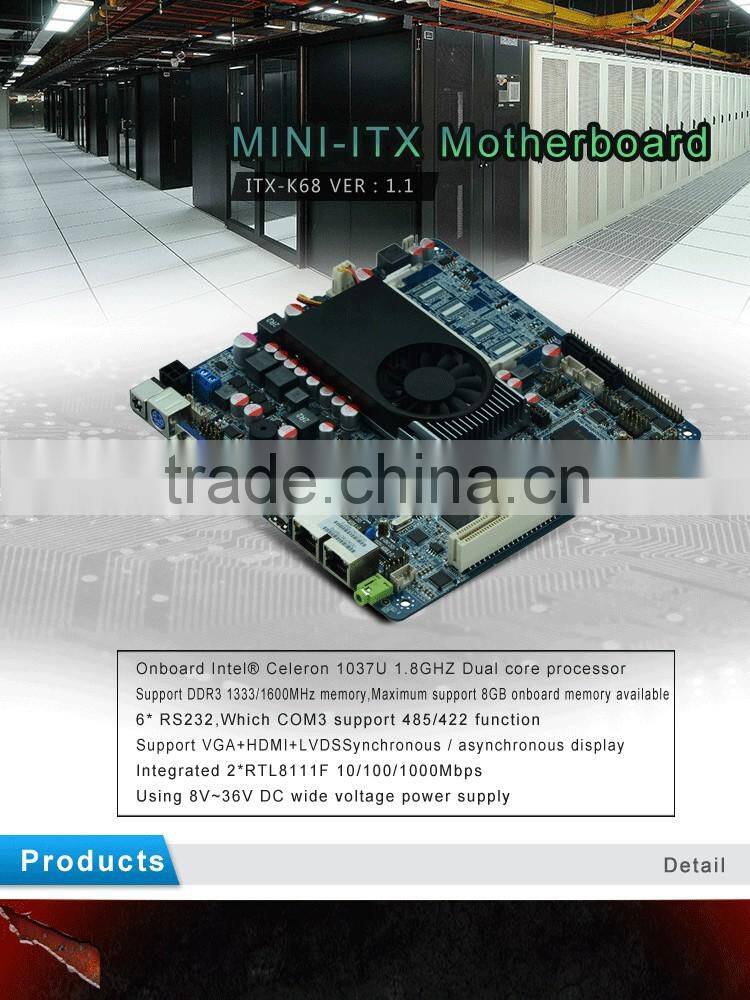

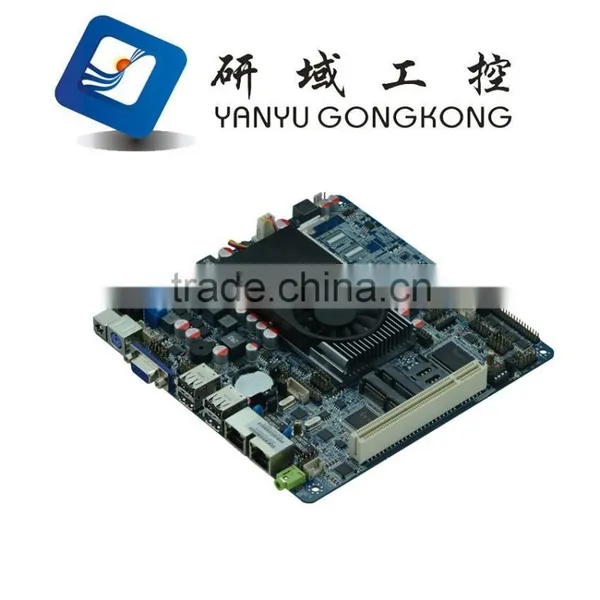

Low Price Motherboards Thin Client 1037u Mini Itx Motherboard Suopport DC_8V~36V Power Input

Model NO.

ITX-K68 VER:1.1

CPU

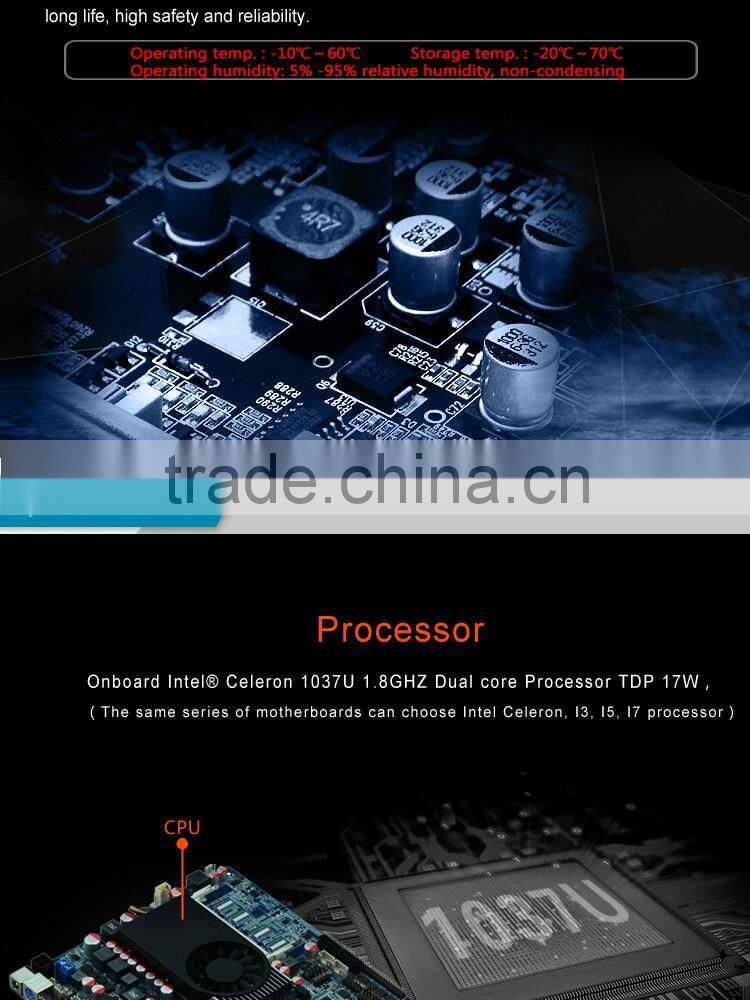

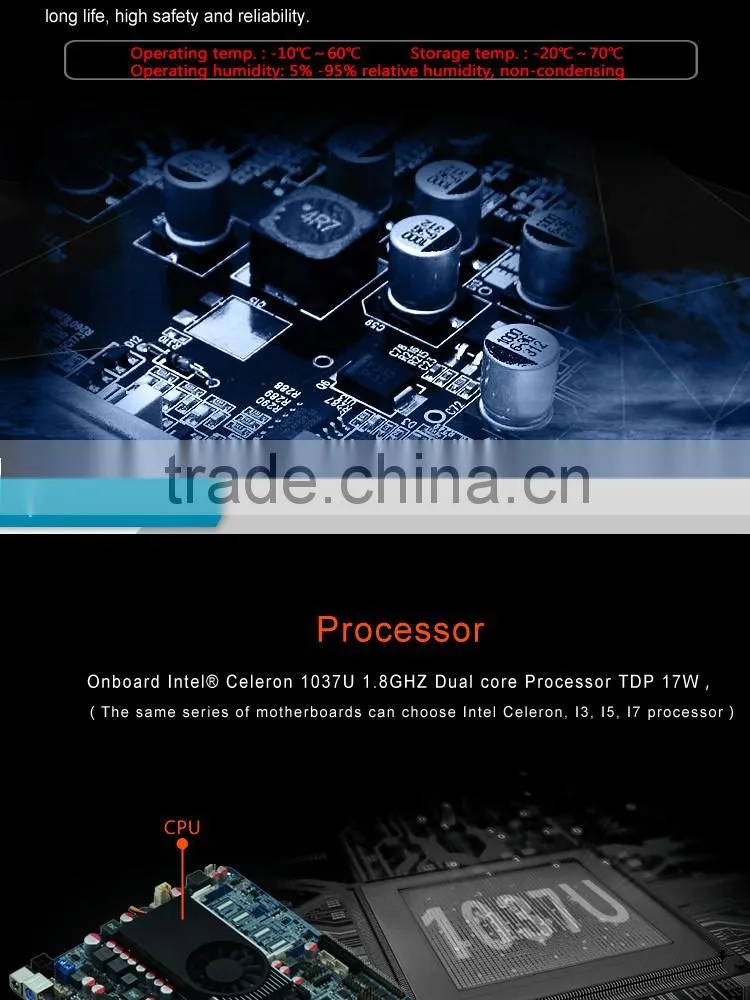

Integrated Intel®1037U/1.8GHz Dual core processor,TDP 17W

Chipset

Intel® NM70 Chipset

Memory

1*SO DDRIII,Support 1600/1333MHz memory,Up to 8GB

Can integrate DDR3 2G or 4G

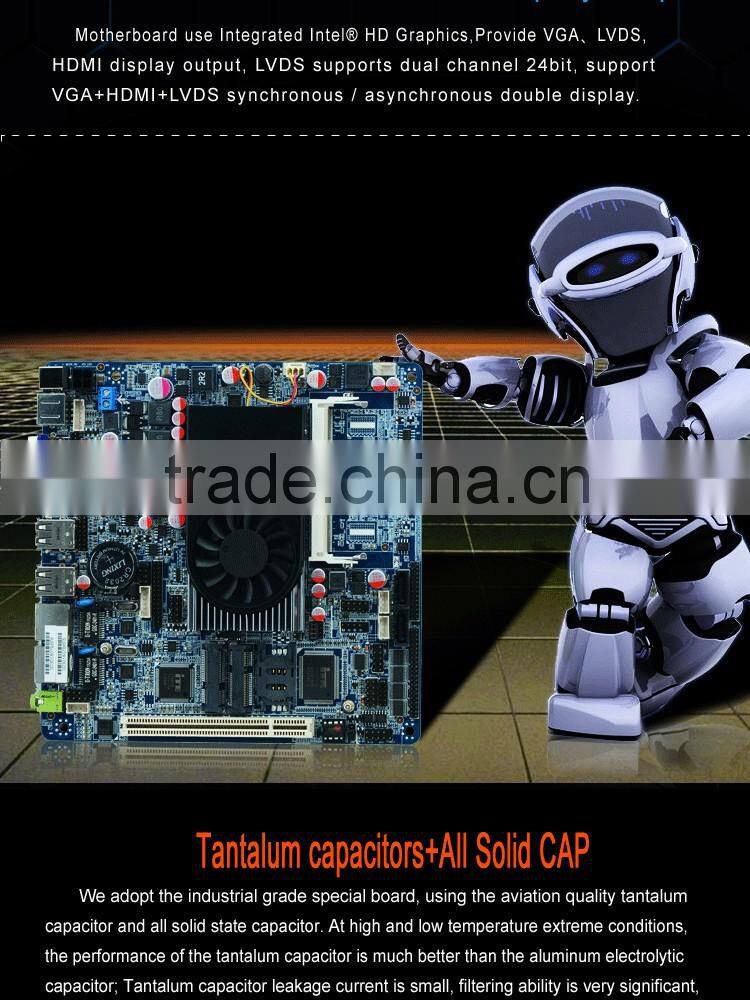

Display

Integrated Intel®HD Graphics

Support 2*VGA,1*HDMI,1*LVDS(Supports dual channel 24BIT)

Support VGA;HDMI;LVDS Synchronous / asynchronous display

LAN

2* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE

Storage

3* SATAII,Transfer rate up to 3Gbps

Audio

Integrated ALC662 6-Channel output.Support MIC/Line-out.

Advise 8Ω5W Loudspeaker

Expansion Slots

1* Mini-PCIE Support WIFI/3G (Jumper control function swap)

1* MSATA Support SSD/WIFI,SSD transfer rate Up to 6Gbps

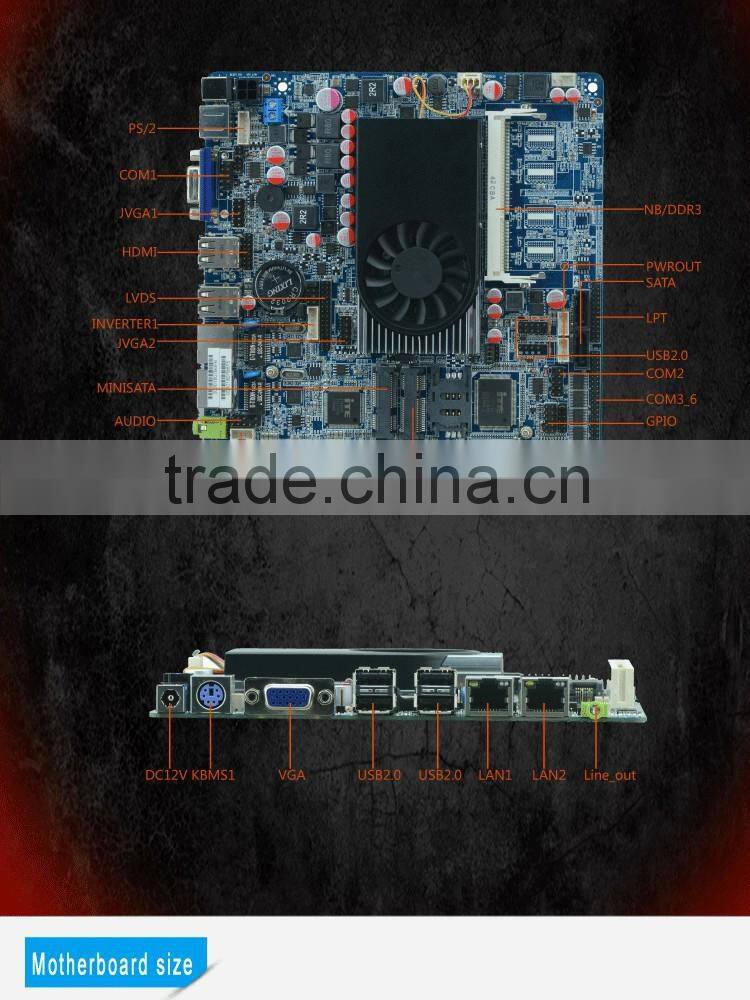

Rear I/O

4* USB2.0

1* PS/2

1* VGA

2* RJ-45

1* Line out(Green)

1* 8V~36V DC_JACK

Internal I/O

1* LVDS(2*15pin),Supports dual channel LCD 24BIT display

1* LVDS INVERTER(1*6pin)

1* JHDMI(2*8Pin)

2* JVGA1(2*5pin)

6* RS232 COM,COM3 Support 485/422,And the 9th has the power

1* TX-RXCOM RS485/422 2*5Pin

1* LPT(2*13pin)

4* USB2.0 (Mini-PCIE Support 3G,Support 2*SB2.0)

1* PS/2(1*6Pin)

1* AUDIO (Front Audio interface 2*5pin)

1*120P PCI

1* SIM card socket

2* PWROUT Hard disk power supply interface

1* FP1 (2*5pin Front panel buttons and LED connected)

1* ATX_8V~36VInput power interface and 1*2P Blue

Fan interface

2* CPUFAN 4pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_8V~36V Power input

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

NO.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-K68 VER:1.1

1037U/1.80G

1*SODDR3

2*VGA

2*24BIT

2*RTL8111E

8

6

COM3

8V~36V

2

ITX-K68_I5 VER:1.1

3317U/1.70G

1*SODDR3

2*VGA

2*24BIT

2*RTL8111E

8

6

COM3

8V~36V
