Specification &Details
Car pc motherboard POS mainboard embedded box pc Integrated Intel 3317U/1.70G cpu
Specifications:
Model NO. |
ITX-K68_I5 VER:1.1 |
CPU |
Integrated Intel® 3317U/1.70G Dual core processor,TDP 17W |
Chipset |
Intel® NM70 Chipset |
Memory |
1*SO DDRIII,Support 1600/1333MHz memory,Up to 8GB |
|
Can integrate DDR3 2G or 4G |
Display |
Integrated Intel®HD Graphics |
Support 2*VGA,1*HDMI,1*LVDS(Supports dual channel 24BIT) | |
Support VGA;HDMI;LVDS Synchronous / asynchronous display | |
LAN |
2* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE |
Storage |
3* SATAII,Transfer rate up to 3Gbps |
Audio |
Integrated ALC662 6-Channel output.Support MIC/Line-out. |
Advise 8Ω5W Loudspeaker | |
Expansion Slots |
1* Mini-PCIE Support WIFI/3G (Jumper control function swap) |
1* MSATA Support SSD/WIFI,SSD transfer rate Up to 6Gbps | |
|

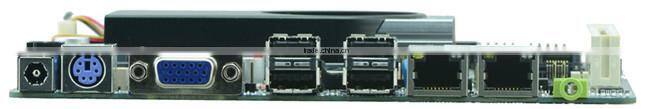

Rear I/O
|
4* USB2.0 |
1* PS/2 | |
1* VGA | |
2* RJ-45 | |
1* Line out(Green) | |
1* 8V~36V DC_JACK | |
|
Internal I/O
|
1* LVDS(2*15pin),Supports dual channel LCD 24BIT display |
1* LVDS INVERTER(1*6pin) | |
1* JHDMI(2*8Pin) | |
2* JVGA1(2*5pin) | |
6* RS232 COM,COM3 Support 485/422,And the 9th has the power | |
1* TX-RXCOM RS485/422 2*5Pin | |
1* LPT(2*13pin) | |
4* USB2.0 (Mini-PCIE Support 3G,Support 2*SB2.0) | |
1* PS/2(1*6Pin) | |
1* AUDIO (Front Audio interface 2*5pin) | |
1*120P PCI | |
1* SIM card socket | |
2* PWROUT Hard disk power supply interface | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
1* ATX_8V~36VInput power interface and 1*2P Blue | |
Fan interface |
2* CPUFAN 4pin |
GPIO |
1* GPIO (Support 4-way GPIO function) |
BIOS |
AMI 32MB Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_8V~36V Power input |
Operating Temp. |
-10℃~60℃ |
Storage Temp. |
-20℃~70℃ |
Humidity |
5%-95% (relative humidity; non-condensing) |
Dimension |
170mm x 170mm |

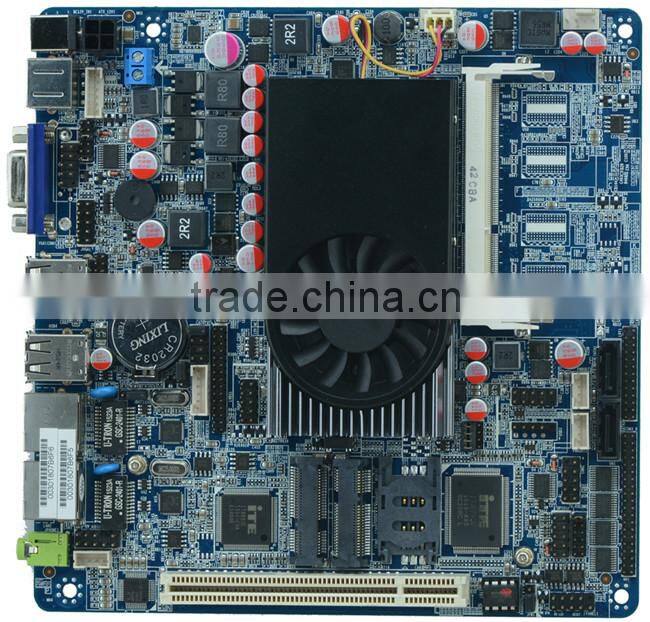

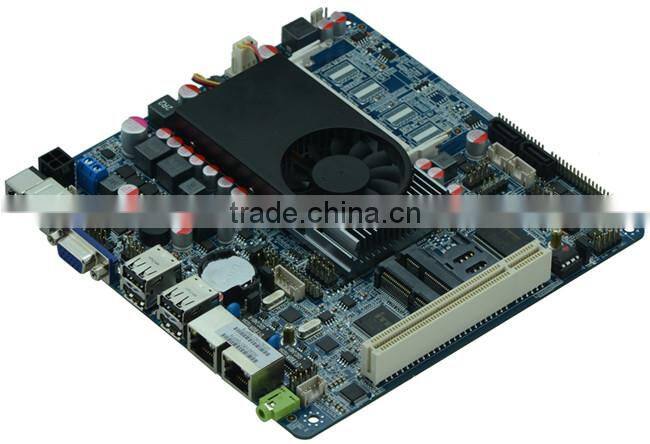

Images of product:
Order Information:
NO. |
Model No. |
CPU |
Memory |
Display |
LVDS |
LAN |
USB |
COM |
RS485/422 |
Power |
1 |
ITX-K68 VER:1.1 |
1037U/1.80G |
1*SODDR3 |
2*VGA |
2*24BIT |
2*RTL8111E |
8 |
6 |
COM3 |
8V~36V |
2 |
ITX-K68_I5 VER:1.1 |
3317U/1.70G |
1*SODDR3 |
2*VGA |
2*24BIT |
2*RTL8111E |
8 |
6 |
COM3 |
8V~36V |
Company information:
Certification:
Package:
Delivery method:
We are an Intel IoT Solutions Alliance Affiliate Member
