Model No.:ITX-H98_I3(4005U)
The 4th generation Haswell_U / broadwell i3 / i5 / i7 Thin Mini ITX motherboard with 1 Gigabit ethernet nic ports 6 serial
1 Gigabit ethernet nic ports Thin MINI ITX Mainboard supports the fourth generation Haswell_U/I3-4005U CPU with 7x USB/2 x COM

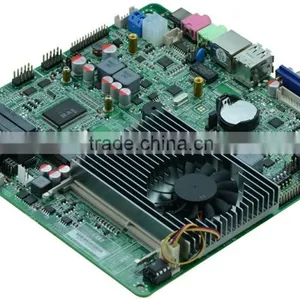

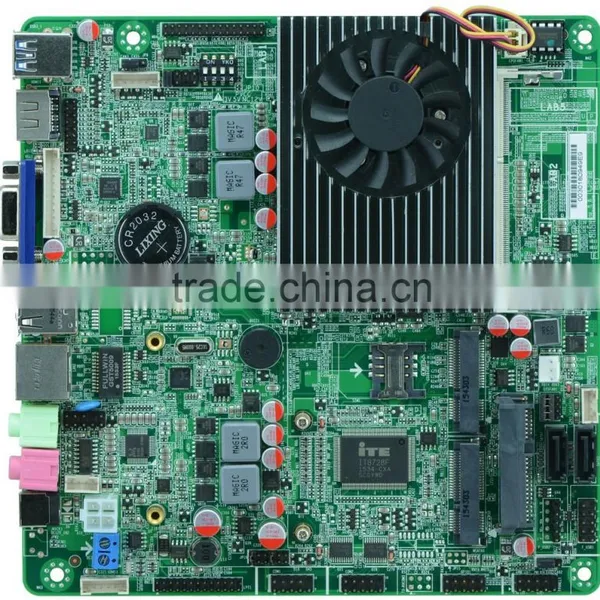

Pictures of product
Model NO. |
ITX-H98_I3(4005U) |
CPU |
Support Intel® Four generation Haswell_U/I3-4005U/1.7GHz Dual core four thread processor,TDP 15W |
Chipset |
Internal integrated North high speed chip set |
Memory |
1*SO DDRIII,Only support 1600/1333MHz DDR3L/1.35V Memory,Up to 16GB |
Graphics |
Integrated Intel®HD Graphics |
|
Support 1*VGA,2*HDMI,1*LVDS (Support Dual-Channel 24BIT) |
|
Support VGA;HDMI;LVDS Synchronous / asynchronous display |
LAN |
1* RTL8111F Gigabit network card chip, support network wake-up /PXE function |
Memory |
2* SATAIII,Transfer rate up to 6Gbps |
Audio |
Integrated ALC662 6-Channel output ,Support MIC/Line-out.Power amplifier |
|
Recommend 3Ω5W Loudspeaker |
Expansion Slots |
1* Mini-PCIE Support WIFI/3G |
|
1* MSATA Support SSD/WIFI,SSD Transfer rate 6Gbps |
|

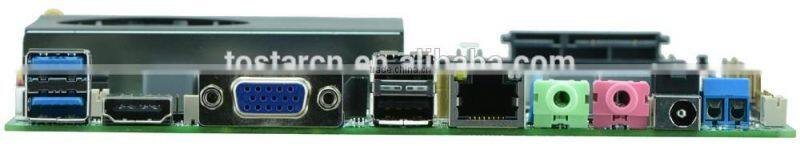

Rear I/O
|
4* USB2.0 |
|
1* HDMI |
|
1* VGA |
|
1* RJ-45 |
|
1* Line out(Green) |
|
1* Mic (Red) |
|
1* 19V DC_JACK |
|
Internal I/O
|
1* LVDS(2*15pin),Support 24BIT LCD |
|
1* LVDS INVERTER(1*6pin) |
|
1* JHDMI (2*8Pin) |
|
1* JVGA1(2*12pin) The same with DB15 |
|
2* RS232 |
|
1* LPT(2*13pin) |
|
4* USB2.0(Support 2*USB3.0) |
|
1* PS/2(1*6Pin) |
|
1* AUDIO(2*5pin) |
|
1* SIM Card socket |
|
2* PWROUT |
|
1* FP1(2*5pin Front panel buttons and LED connected) |
|
1* ATX_12V can be +12V Input / output power interface |
Fan interface |
1* CPUFAN 4pin;1* SYSFAN 3pin |
GPIO |
Support 4 input and output GPIO |
BIOS |
AMI 64MB Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V single power supply |
Operating Temp. |
-10℃~60℃ |
Storage Temp. |
-20℃~70℃ |
Humidity |
5%-95%(relative humidity; non-condensing) |
Dimension |
170mm x 170mm |
1-3 YEARS MANUFACTURER'S LIMITED WARRANTY
Hanzsung products have been tested for quality control and free of defects prior to shipping. If a product is not working properly, please contact our technical support staff so they may assist you.
Please send product only, do not send accessories or other parts if not requested as they may not be returned.
Shipping
1.DHL,UPS,Fedex,TNT or EMS is available for shipping.
We are shipping to worldwide except some countries which due to custom issue: Brazil, Turkey, Russia and far area and we can not accept for additional charge for far area fees.
2.Import duties, taxes and charges are not included in the item price or shipping charges.These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to placing.
and the goods as other item name ,or specify and value for custom, please inform us when making order.
3.we accept Drop shipping, the buyer can't see any information about us when they received package,
we are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
SHENZHEN HANZSUNG TECHNOLOGY CO., LTD
We focus on quality of industrial motherboards in detail. We aim to bring our customer long term business"
Founded in 2000, Shenzhen Hanzsung Technology Co., Ltd, Member of Intel® Intelligent Systems Alliance, is a R&D and manufacturing technology-innovation enterprise specialized in supplying quality PC cards and embedded products. With independent intellectual property rights and strong independent R&D, production capacity, Hanzsung, headquartered in Shenzhen China, prides itself on being one of IT industry private
enterprises with strong support of the Shenzhen Municipal Goverment.
Welcome to contact us directly to get more price info and discount !
Skype: sales.ying (AT) tostarcn dot COM, Wechat : 13537658791
Thank you !
