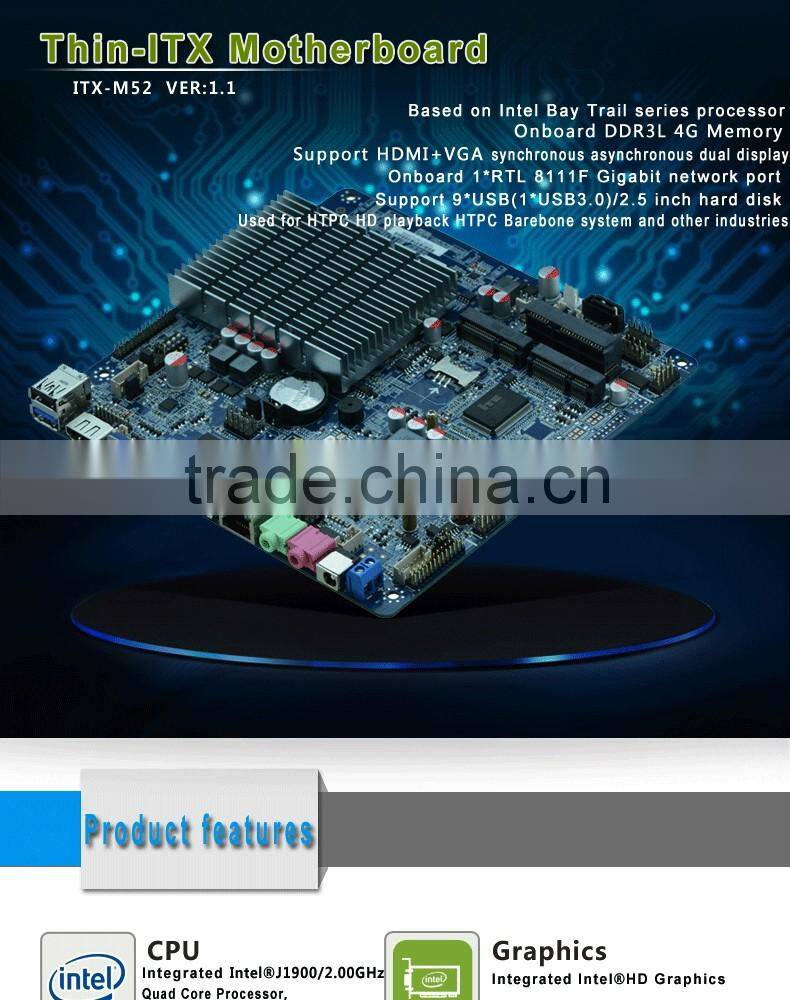

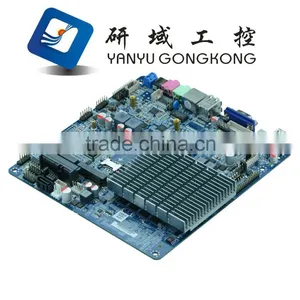

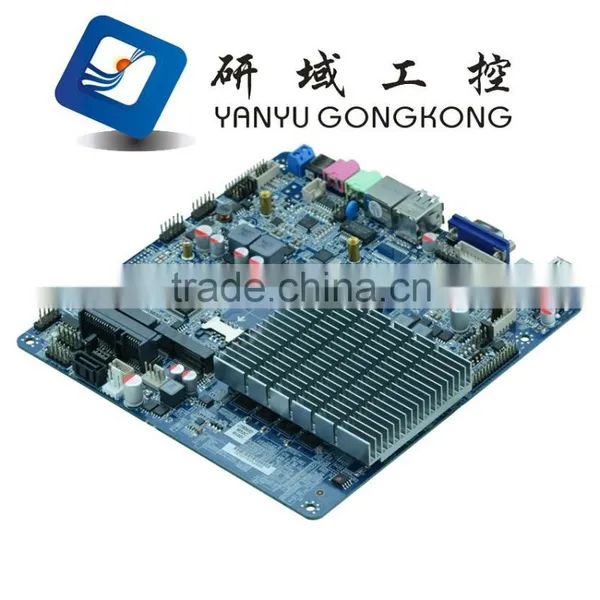

Thin itx motherboard J1900 industry pc mainboard with Onboard DDR3L 1.35V 4GB RAM

Model No.:

ITX-M52  VER:1.0

CPU

Integrated, Intel®J1900/2.00GHz quad core CPU,TDP 10W

Chipset

Base one Intel® Bay trail SOC

Memory

Onboard DDR3L 1.35V 4GB RAM

Display

Integrated,Intel®HD Graphics

1*VGA,2*HDMI,1*LVDS port( suport dual Channel 24BIT LVDS)

Support VGA;HDMI;LVDS Synchronous / asynchronous display

LAN

1* RTL8111F 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE

Storage

1* SATAⅢ 2.5 Inch notebook hard disk and 1* SATA Hard disk interface for you choose

Audio

Integrated, ALC662 6-Channel output,Support MIC/Line-out

Advise 2Ω5W loudspeaker

Expansion Slots

1* Mini-PCIE slot,Support WIFI/3G module

1* MSATA slot, support SSD/WIFI,SSD transfer rate up to 3Gbps

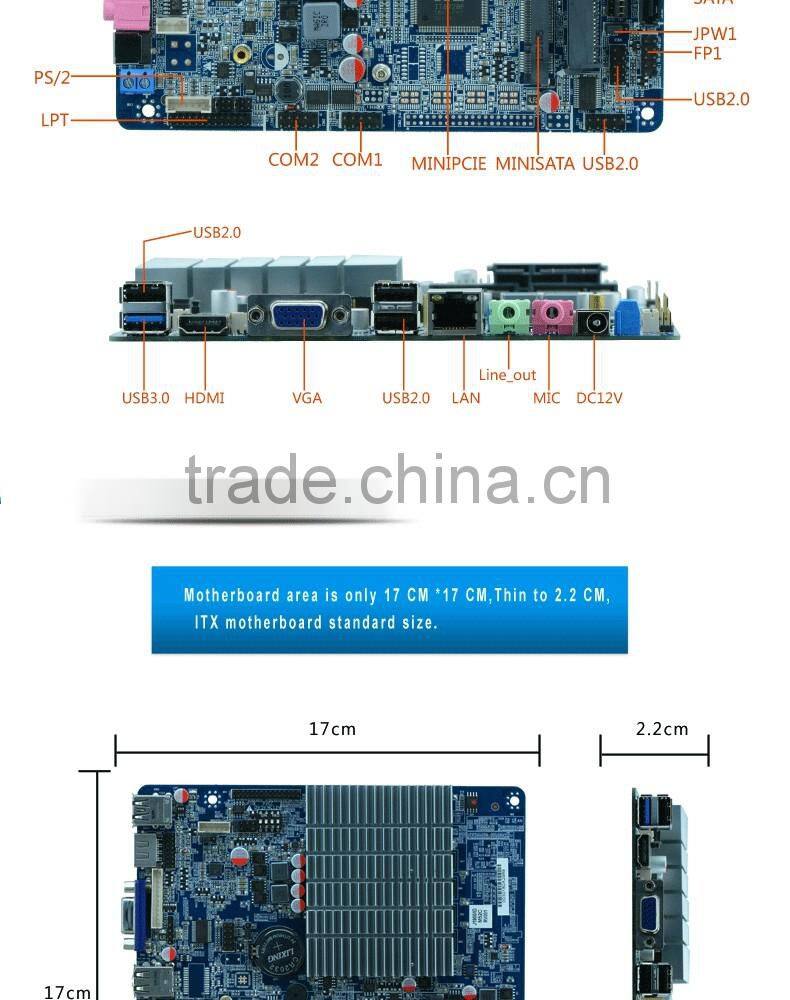

Rear I/O

3* USB2.0 Port

1* USB3.0 port

1* HDMI port

1* VGA port

1* RJ-45 Lan port

1* Line out(Green)

1* Mic (Red)

1* 12V DC_JACK input

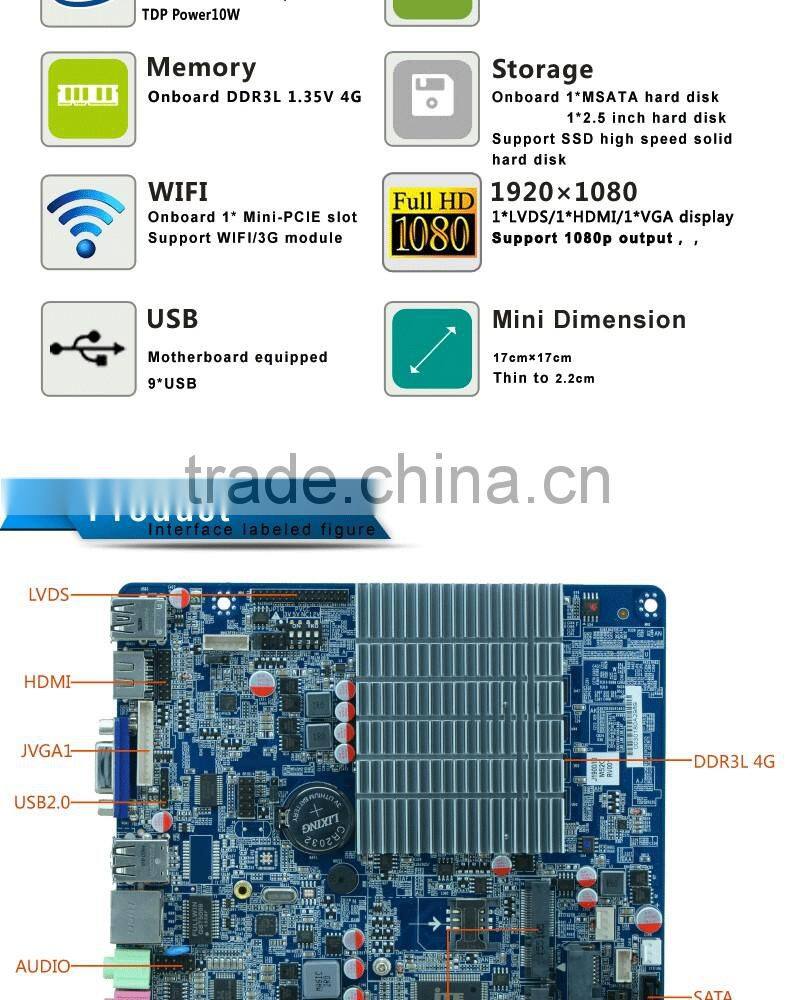

Internal I/O

1* LVDS port(2*15pin),support dual channel 24BIT LCD display

1* LVDS(1*6pin)

1* JHDMI p(2*8Pin),the same signal with rear IO/HDMI

1* JVGA1 port(1*12pin) the same signal with DB15

6* RS232 COM port(COM1 COM2 9pin optional with power function,COM3 support RS485/RS422 function)

1* LPT port(2*13pin)

5* USB2.0 port (2*5pin, 1*1x4pin)

1* PS/2 port(1*6Pin)

1* AUDIO (Front Audio interface 2*5pin)

1* SIM Card socket

1* PWROUT Hard disk power supply interface

1* FP1 (2*5pin Front panel buttons and LED connected)

1* ATX_12V Can be +12V Input and output power interface

Fan interface

1* CPU FAN 4pin;1* SYSFAN 3pin

GPIO

Support 4-ways GPIO function

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V Single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm

NO.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M50_D6L VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

6

COM3

DC/12V

2

ITX-M50_N18 VER:2.0

J1800/2.41G

1*SODDR3

1*VGA

X

1*RTL8111F

9

X

X

DC/12V

3

ITX-M50_NC VER:1.3

J1900/2.00G

1*SODDR3

1*VGA

X

1*RTL8111F

7

X

X

DC/12V

4

ITX-M50_18 VER:2.2

J1800/2.41G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

2

X

DC/12V

5

ITX-M50 VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

2

X

DC/12V

6

ITX-M50_2L VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

2*RTL8111F

7

6

COM3

DC/12V
